View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0029728 | Open CASCADE | OCCT:Modeling Algorithms | public | 2018-04-25 12:59 | 2019-09-04 12:12 |
| Reporter | Assigned To | ||||
| Priority | normal | Severity | minor | ||
| Status | assigned | Resolution | open | ||
| Target Version | Unscheduled | ||||
| Summary | 0029728: Modeling Algorithms - BRepFill_PipeShell algorithm produces invalid result | ||||

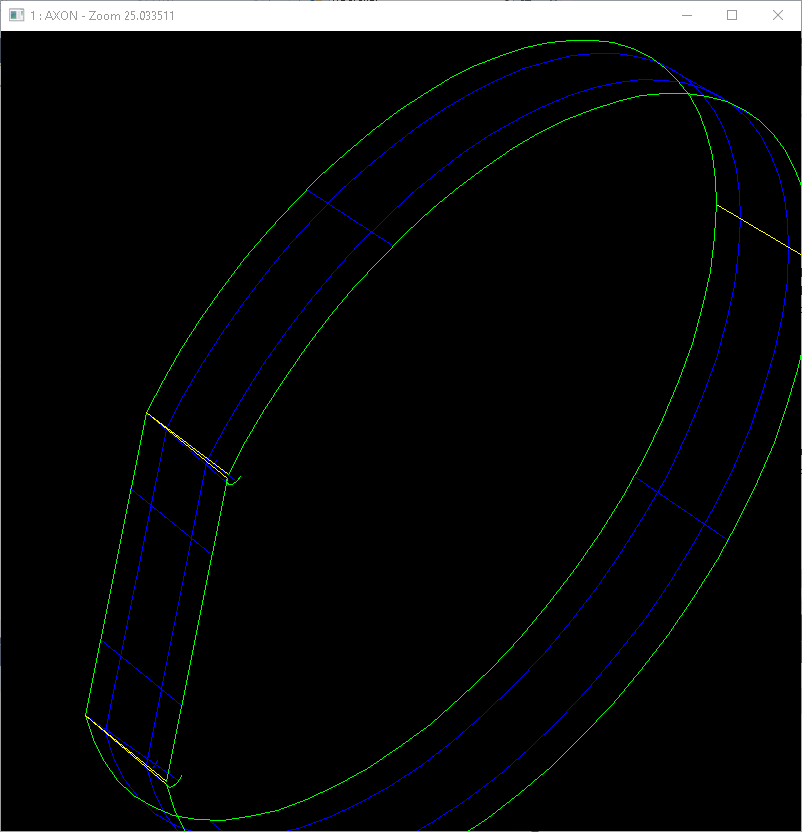

| Description | BRepFill_PipeShell algorithm produces invalid result. Please see "WrongPipe.PNG" the attached picture. | ||||
| Steps To Reproduce | restore [locate_data_file OCC26470-ClosedWire.brep] a restore [locate_data_file OCC26470-wprof2.brep] b mksweep a addsweep b buildsweep rr -R | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
2018-04-25 12:59 developer |
|
|
Please note that on OCCT 7.2.0 the result is looked more aesthetic. However, it is not valid, too. Because it contains too small edge. E.g. Draw[]> explode rr f Draw[]> copy rr_4 ff2 Draw[]> explode ff2 e Draw[]> lprops ff2_4 1.0e-4 # 1.21698e-007 Draw[]> toler ff2_4 # VERTEX : MAX=5.5040830459515754e-007 ... MIN=9.9999999999999995e-008 I.e. the edge ff2_4 is covered by the tolerance of its vertices. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2018-04-25 12:59 |
|
New Issue | |
| 2018-04-25 12:59 |
|
Assigned To | => msv |
| 2018-04-25 12:59 |
|
File Added: WrongPipe.PNG | |
| 2018-04-25 13:08 |
|
Note Added: 0075678 | |
| 2018-04-25 16:37 |
|
Assigned To | msv => nbv |
| 2018-04-25 16:37 |
|
Status | new => assigned |
| 2019-08-12 19:08 |
|
Assigned To | nbv => msv |
| 2019-08-12 19:12 |
|
Target Version | 7.4.0 => Unscheduled |
| 2019-09-04 12:12 | kgv | Summary | BRepFill_PipeShell algorithm produces invalid result => Modeling Algorithms - BRepFill_PipeShell algorithm produces invalid result |
