View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0029860 | Open CASCADE | OCCT:Modeling Algorithms | public | 2018-06-13 10:26 | 2023-08-01 15:06 |
| Reporter | Assigned To | ||||
| Priority | normal | Severity | minor | ||
| Status | assigned | Resolution | open | ||
| Target Version | Unscheduled | ||||
| Summary | 0029860: Modeling Algorithms - BOPAlgo_BuilderFace cannot build new faces correctly | ||||
| Description | BOPAlgo_BuilderFace cannot build new faces correctly. The source face contains cone with degenerated edge. | ||||
| Steps To Reproduce | restore cfe_47.brep cfe bopbf f cfe # 2 faces were built ==> WRONG (must be 3 faces) | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| related to | 0029807 | closed | bugmaster | [Regression to 7.0.0] Impossible to cut cone from prism |
| parent of | 0029883 | assigned | Boolean operation with prism and cone produces invalid result when tolerance of vertex in cone apex is too big | |
| related to | 0029421 | feedback | Make face classifier algorithm stable and robust | |
| related to | 0029922 | new | Boolean operation with conical argument loses degenerated edge | |
| Not all the children of this issue are yet resolved or closed. | ||||
|
2018-06-13 10:26 developer |
|
|
|
The fix for the issue 0029421 creates three faces (as it is needed). However, the face f_3 is invalid in terms of BRepCheck. I have attached it in the file InvFace.bin (is opened by "binrestore" DRAW-command). Please note, that visually this face seems to be OK. So, maybe here BRepCheck algorithm works wrongly. It should be analyzed. Faulty status is returned by BRepCheck_Wire::Closed2d() method. It uses BRepTools_WireExplorer algorithm, which finds only one edge in the wire (in spite of wire's containing 4 edges). binrestore InvFace.bin ff explode ff w wexplo ff_1 ff puts [llength [directory WEDGE_*]] # 1 but must be 4 Please note, if we use BRepTools_WireExplorer only for 3D-space then it works correctly: binrestore InvFace.bin ff explode ff w wexplo ff_1 puts [llength [directory WEDGE_*]] # 4 ==> OK |
|
2018-07-19 16:21 developer |
|
|
|
As result, the tests "bugs modalg_7 bug29807_b5a" and "bugs modalg_7 bug29807_b4a" changes self behavior. The number of entities has become as expected but checkshape result finds faulty entities. |
|
2018-10-04 10:38 developer |
|
|

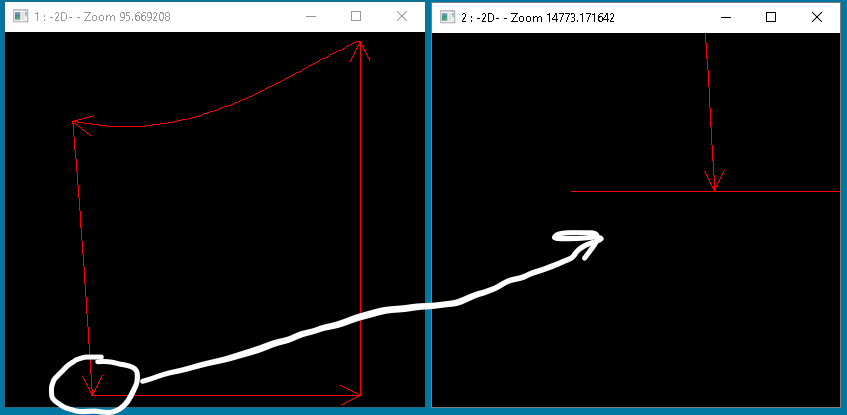

Please note that the degenerated edge is not trimmed by the intersection point with another edge. See NotTrimmedDE.PNG attached picture, where p-curve of InvFace.bin is shown. I think, it is a problem of Boolean operation in "bugs modalg_7 bug29807_b5a" and "bugs modalg_7 bug29807_b4a" test cases. |
