View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0030348 | Open CASCADE | OCCT:Shape Healing | public | 2018-11-06 19:40 | 2018-11-11 12:04 |
| Reporter | kgv | Assigned To | bugmaster | ||
| Priority | normal | Severity | minor | ||
| Status | closed | Resolution | fixed | ||
| Product Version | 6.5.3 | ||||
| Target Version | 7.4.0 | Fixed in Version | 7.4.0 | ||
| Summary | 0030348: Shape Healing - ShapeFix_Wire::FixEdgeCurves() throws Standard_OutOfRange exception | ||||
| Description | ShapeFix_Wire::FixEdgeCurves() throws Standard_OutOfRange exception (in DEBUG build, in RELEASE it just corrupts memory) within the following code:
if ( NeedFix ( myFixAddCurve3dMode ) ) {
for ( i=1; i <= nb; i++ ) {
myFixEdge->FixAddCurve3d ( sbwd->Edge(i) );
if ( myFixEdge->Status ( ShapeExtend_DONE ) )
myStatusEdgeCurves |= ShapeExtend::EncodeStatus ( ShapeExtend_DONE5 );
if ( myFixEdge->Status ( ShapeExtend_FAIL ) ) {
//:abv 29.08.01: Spatial_firex_lofting.sat: if 3d curve cannot
// be built because edge has no pcurves either, remove that edge
Handle(Geom2d_Curve) C;
Handle(Geom_Surface) S;
TopLoc_Location L;
Standard_Real first = 0., last = 0.;
BRep_Tool::CurveOnSurface ( sbwd->Edge(i), C, S, L, first, last );
if ( C.IsNull() || Abs (last - first) < Precision::PConfusion())
{
SendWarning ( sbwd->Edge ( i ), Message_Msg ( "FixWire.FixCurve3d.Removed" ) );// Incomplete edge (with no pcurves or 3d curve) removed
sbwd->Remove ( i-- );
nb--;
myStatusEdgeCurves |= ShapeExtend::EncodeStatus ( ShapeExtend_DONE5 );
FixConnected (i + 1, Precision());
}
myStatusEdgeCurves |= ShapeExtend::EncodeStatus ( ShapeExtend_FAIL5 );
}
}
}
This is a regression since OCCT 6.5.3 (0022717). | ||||
| Steps To Reproduce | sat read_parallel_1 B8 | ||||
| Tags | No tags attached. | ||||
| Test case number | Not needed | ||||
|
|
|
Branch CR30348 has been created by kgv. SHA-1: b54ec8379eca22b12d7896788b84e57d4cfb2bb5 Detailed log of new commits: Author: kgv Date: Tue Nov 6 19:42:22 2018 +0300 0030348: Shape Healing - ShapeFix_Wire::FixEdgeCurves() throws Standard_OutOfRange exception |
|
|
|
|
|
|
Patch is ready for review. http://jenkins-test-12.nnov.opencascade.com:8080/view/CR30348-CR30348-KGV/ |
|
|
Branch CR30348 has been updated forcibly by kgv. SHA-1: 2ec60a5f13942b2ac7e40ed0c083909c462486c4 |
|
|
Branch CR30348 was reviewed |
|
|
Combination - OCCT branch : CR30348 SHA - 2ec60a5f13942b2ac7e40ed0c083909c462486c4 Products branch : CR30348 SHA - dc9b54ff96bfdd5be36ff17bb512772a70f930db was compiled on Linux, MacOS and Windows platforms and tested in optimize mode. Number of compiler warnings: No new/fixed warnings Regressions/Differences/Improvements: No regressions/differences CPU differences: Debian80-64: OCCT Total CPU difference: 16110.21000000004 / 16093.030000000039 [+0.11%] Products Total CPU difference: 7048.580000000028 / 7035.140000000028 [+0.19%] Windows-64-VC14: OCCT Total CPU difference: 17607.359375 / 17600.625 [+0.04%] Products Total CPU difference: 8516.6875 / 8526.203125 [-0.11%] Image differences : No differences that require special attention Memory differences : No differences that require special attention |
|
|
Branch CR30348 has been deleted by inv. SHA-1: 2ec60a5f13942b2ac7e40ed0c083909c462486c4 |
|
occt: master 22887d12 2018-11-06 16:42:22 Committer: bugmaster Details Diff |
0030348: Shape Healing - ShapeFix_Wire::FixEdgeCurves() throws Standard_OutOfRange exception Call FixClosed() instead of out-of-range FixConnected() at the last edge. |
Affected Issues 0030348 |
|
| mod - src/ShapeFix/ShapeFix_Wire.cxx | Diff File | ||
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2018-11-06 19:40 | kgv | New Issue | |
| 2018-11-06 19:40 | kgv | Assigned To | => gka |
| 2018-11-06 19:45 | git | Note Added: 0080793 | |
| 2018-11-06 19:47 | kgv | Steps to Reproduce Updated | |
| 2018-11-06 21:18 | kgv | Relationship added | child of 0022717 |
| 2018-11-06 21:18 | kgv | Product Version | 7.3.0 => 6.5.3 |
| 2018-11-06 21:20 | kgv | Description Updated | |

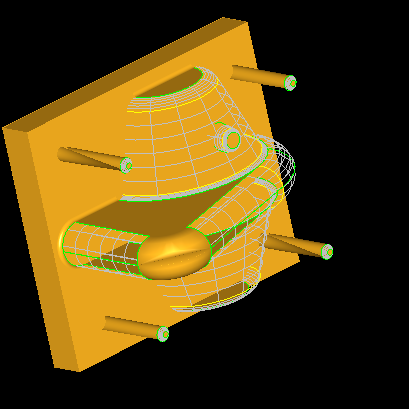

| 2018-11-06 22:28 | kgv | File Added: sat6_4_old.png | |

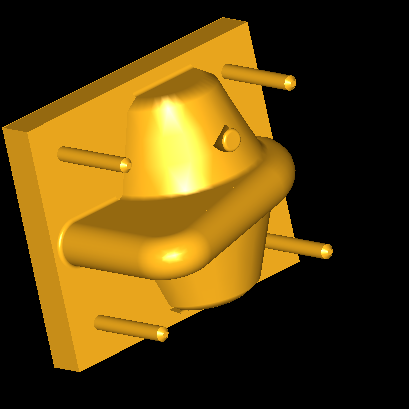

| 2018-11-06 22:29 | kgv | File Added: sat6_4_new.png | |
| 2018-11-06 22:48 | kgv | Note Added: 0080799 | |
| 2018-11-06 22:48 | kgv | Status | new => resolved |
| 2018-11-07 09:27 | kgv | Note Edited: 0080799 | |
| 2018-11-07 11:41 | git | Note Added: 0080811 | |
| 2018-11-08 11:58 |
|
Note Added: 0080929 | |
| 2018-11-08 11:58 |
|
Assigned To | gka => bugmaster |
| 2018-11-08 11:58 |
|
Status | resolved => reviewed |
| 2018-11-08 15:53 | bugmaster | Note Added: 0080962 | |
| 2018-11-08 15:53 | bugmaster | Status | reviewed => tested |
| 2018-11-08 15:54 | bugmaster | Test case number | => Not needed |
| 2018-11-11 11:52 | bugmaster | Changeset attached | => occt master 22887d12 |
| 2018-11-11 11:52 | bugmaster | Status | tested => verified |
| 2018-11-11 11:52 | bugmaster | Resolution | open => fixed |
| 2018-11-11 12:01 | git | Note Added: 0081039 |
