| Summary | 0031903: Shape validation problem. | ||||

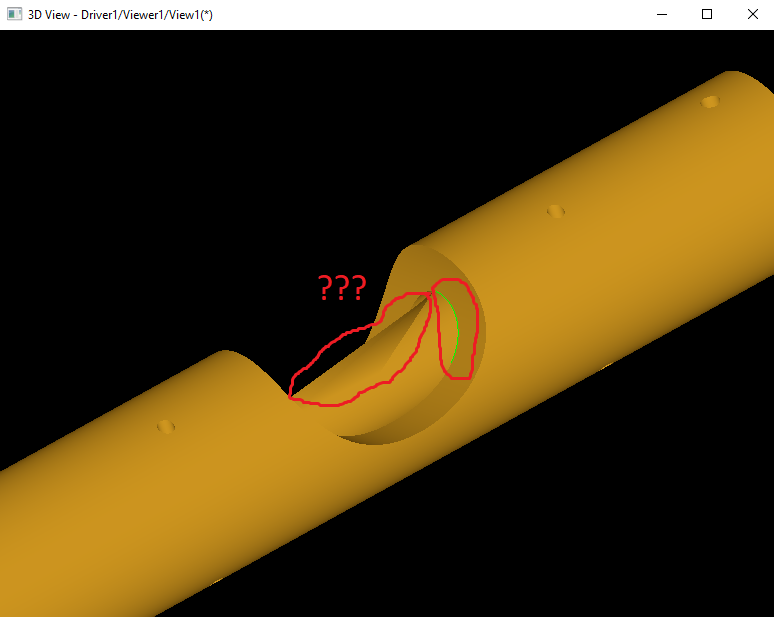

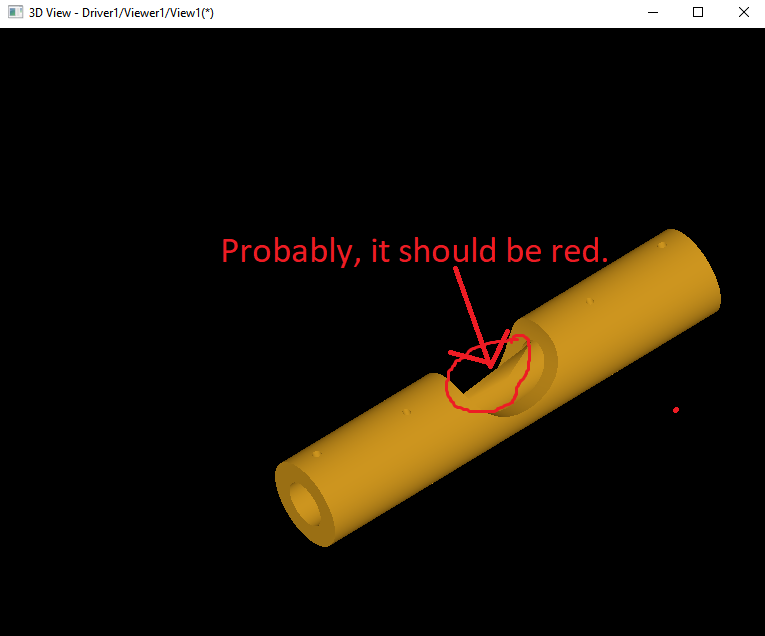

| Description | Run the script below.pload ALL restore shape.brep shape checkshape shape vinit vdisplay shape -dispMode 1; vfit 1.png Bug: we have a valid shape (checked using checkshape). But if you look through the viewer, the shape looks not valid. Possible causes: incorrect rendering, incorrect validation. Note: the input is valid. Note: please, after finding out the reason, change the category of the task. Also note, that the vaspects shape -setBackFaceColor RED command does not tint the faces. If this should not be so, then please create a separate task. 2.png | ||||
| Steps To Reproduce | pload ALL restore shape.brep shape checkshape shape vinit vdisplay shape -dispMode 1; vfit | ||||
| Tags | No tags attached. | ||||
