View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0031905 | Open CASCADE | OCCT:Modeling Algorithms | public | 2020-11-03 15:27 | 2023-08-01 15:08 |
| Reporter | avn | Assigned To | |||
| Priority | normal | Severity | minor | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2013 | ||
| Product Version | 7.6.0 | ||||
| Target Version | Unscheduled | ||||
| Summary | 0031905: Incorrect operation of the boolean operator 'cut'. Shape validation problem. | ||||

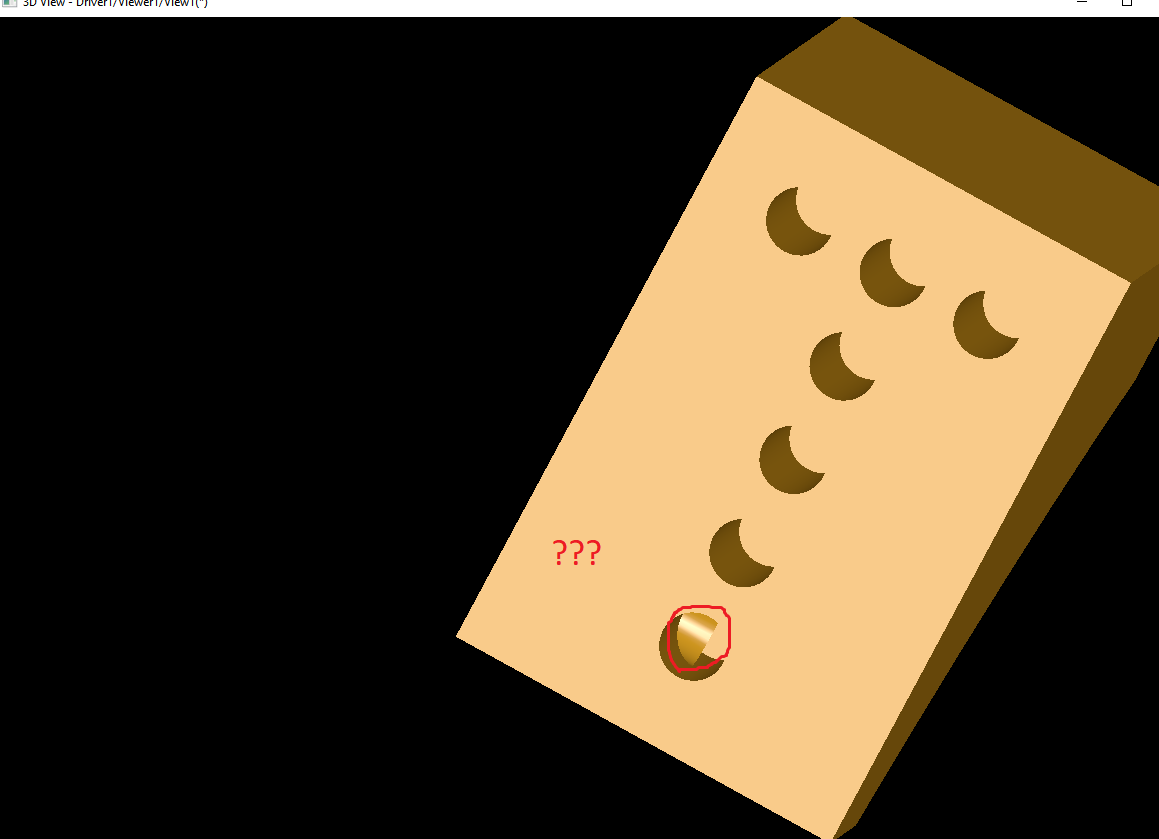

| Description | Run the script below.pload ALL restore part.brep part restore tool.brep tool checkshape part checkshape tool bcut res part tool checkshape res vinit vdisplay res -dispMode 1; vfit 1.png Bug: after the 'cut' operation, we have a valid shape (checked using checkshape). But if you look through the viewer, the shape looks not valid. Possible causes: incorrect rendering, incorrect validation, incorrect boolean operation. Note: the input is valid. Note: please, after finding out the reason, change the category of the task. Also note, that the vaspects res -setBackFaceColor RED command does not tint the faces. If this should not be so, then please create a separate task. | ||||
| Steps To Reproduce | pload ALL restore part.brep part restore tool.brep tool checkshape part checkshape tool bcut res part tool checkshape res vinit vdisplay res -dispMode 1; vfit | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
| related to | 0031901 | new | Incorrect operation of the boolean operator 'cut'. Shape validation problem. | |
| related to | 0031902 | new | Incorrect operation of the boolean operator 'cut'. Shape validation problem. | |
| related to | 0031903 | new | Shape validation problem. | |
| related to | 0031904 | new | Incorrect operation of the boolean operator 'cut'. Shape validation problem. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2020-11-03 15:27 | avn | New Issue | |
| 2020-11-03 15:27 | avn | Assigned To | => msv |
| 2020-11-03 15:27 | avn | File Added: 1.png | |
| 2020-11-03 15:27 | avn | File Added: part.brep | |
| 2020-11-03 15:27 | avn | File Added: tool.brep | |
| 2020-11-03 15:27 | avn | Relationship added | related to 0031901 |
| 2020-11-03 15:27 | avn | Relationship added | related to 0031902 |
| 2020-11-03 15:28 | avn | Relationship added | related to 0031903 |
| 2020-11-03 15:28 | avn | Relationship added | related to 0031904 |
| 2020-11-03 15:34 | avn | Steps to Reproduce Updated | |
| 2021-08-29 19:04 |
|
Target Version | 7.6.0 => 7.7.0 |
| 2022-10-24 10:41 |
|
Target Version | 7.7.0 => 7.8.0 |
| 2023-08-01 15:08 | dpasukhi | Target Version | 7.8.0 => Unscheduled |
