View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0031941 | Open CASCADE | OCCT:Tests | public | 2020-11-16 15:20 | 2023-08-01 15:06 |
| Reporter | Assigned To | apn | |||
| Priority | normal | Severity | minor | ||
| Status | new | Resolution | open | ||
| Product Version | 7.5.0 | ||||
| Target Version | Unscheduled | ||||
| Summary | 0031941: Tests - some test cases in lowalgos/intss are wrong | ||||
| Description | Test lowalgos/intss/bug29972_4 was speciality designed for diagnose possible loops (self-intersections) of curve, which is result of intersection bspline surface and plane. Now test is considered as OK - intersection curve is good and has no loops. Really intersection curve is wrong and has loop, see attached picture. Algorithm of test is wrong. Test lowalgos/intss/buc60623_3 is wrong. In test script topological command "checksection" is applied for geometry object - curve and always return "good" result: .... mksurface S1 a mksurface S2 b intersect I1 S1 S2 regexp {nb alone Vertices : ([-0-9.+eE]+)} [checksection I1] full cs2 if { $cs2 != 0 } { puts " Faulty : Intersection is not correct" } else { puts "Intersection of S1 and S2 is correct" } ... This test tests nothing. Test lowalgos/intss/bug139 is wrong. The same reason as for buc60623_3 | ||||
| Steps To Reproduce | Run test lowalgos/intss/bug29972_4 and zoom middle part of result curve. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| related to | 0029501 | assigned | Open CASCADE | Modeling Algorithms - Intersection algorithm produces the curve with loop |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2020-11-16 15:20 |
|
New Issue | |
| 2020-11-16 15:20 |
|
Assigned To | => apn |
| 2020-11-16 15:20 |
|

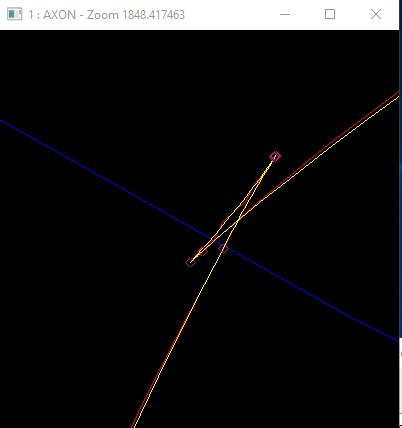

File Added: curveloop.jpg | |
| 2020-11-16 15:25 |
|
Relationship added | related to 0029501 |
| 2020-11-20 13:10 |
|
Summary | Tests - test case lowalgos/intss/bug29972_4 works wrongly and does not diagnose self-intersecting curve => Tests - some test cases in lowalgos/intss are wrong |
| 2020-11-20 13:10 |
|
Description Updated | |
| 2020-11-20 13:18 |
|
Description Updated | |
| 2021-10-07 14:52 |
|
Target Version | 7.6.0 => 7.7.0 |
| 2022-10-24 10:43 |
|
Target Version | 7.7.0 => 7.8.0 |
| 2023-08-01 15:06 | dpasukhi | Target Version | 7.8.0 => Unscheduled |
