View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0032426 | Community | OCCT:Modeling Algorithms | public | 2021-06-08 18:22 | 2021-06-08 18:44 |
| Reporter | abezotosniy | Assigned To | |||
| Priority | normal | Severity | minor | ||
| Status | new | Resolution | open | ||
| Product Version | 7.5.0 | ||||
| Summary | 0032426: Modeling Algorithms - Boolean operation produces face that couldn't be displayed | ||||
| Description | Boolean operation produce face that couldn't be display | ||||
| Steps To Reproduce | bsplinecurve spline_curve 1 2 0 2 9 2 -5 4 0 1 5 4 0 1 # It's strange that everything works correctly for this curve # bsplinecurve spline_curve 1 2 0 2 9 2 -10 4 0 1 10 4 0 1 mkedge spline_edge spline_curve prism spline_shell spline_edge 0 0 -5 plane cyl_plane 1 0 -1 0 1 0 0 0 1 pcylinder cyl_solid cyl_plane 1 5 bclearobjects bcleartools baddobjects cyl_solid spline_shell bapibuild bop_res checkshape bop_res vinit vsetdispmode 1 vdisplay bop_res vfit | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2021-06-08 18:22 | abezotosniy | New Issue | |
| 2021-06-08 18:22 | abezotosniy | Assigned To | => msv |

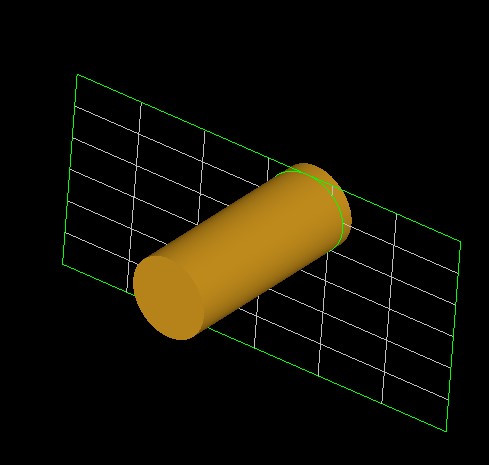

| 2021-06-08 18:22 | abezotosniy | File Added: display_issue.jpg | |
| 2021-06-08 18:44 | kgv | Category | OCCT:Modeling Data => OCCT:Modeling Algorithms |
| 2021-06-08 18:44 | kgv | Summary | Boolean operation produce face that couldn't be display => Modeling Algorithms - Boolean operation produces face that couldn't be displayed |
