| Summary | 0032639: BRepOffsetAPI_MakePipeShell results in an invalid shape when using -DT mode | ||||

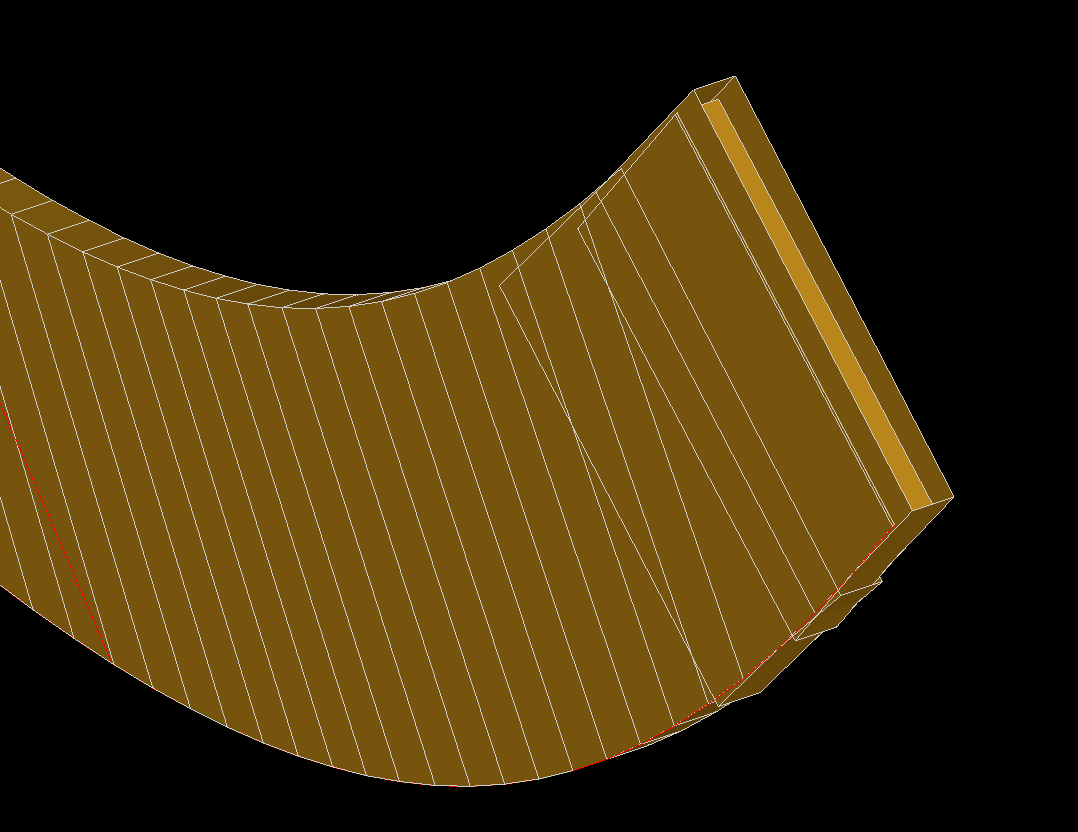

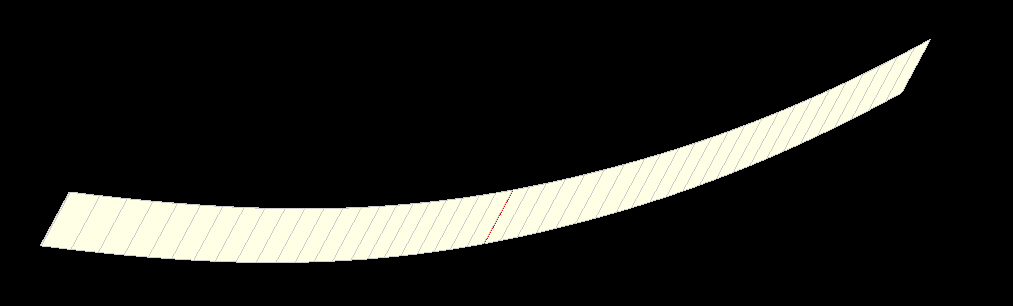

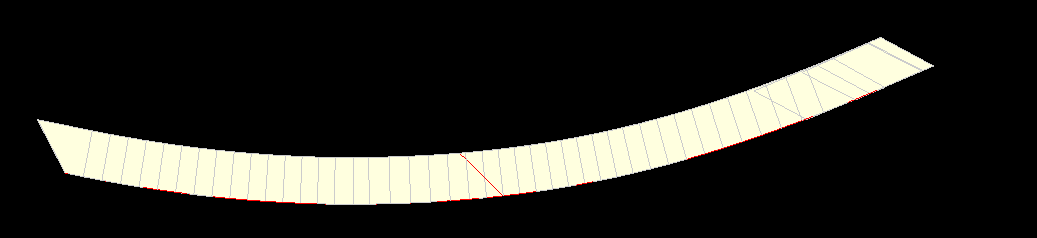

| Description | Building a pipe using the provided spine and profile results in an invalid shape. Fixing the result with fixshape results in a valid shape, but the shape is distorted, see screenshots 1 and 2. Not using -C with buildsweep result in an inaccurate shape, see screenshot 3. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
|
|
|
|
|
|
|
Could this also be linked to https://tracker.dev.opencascade.org/view.php?id=32447#c104784 ? |
