View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0032836 | Community | OCCT:Data Exchange | public | 2022-02-16 10:01 | 2023-08-04 11:00 |
| Reporter | xuzhongxing | Assigned To | |||
| Priority | normal | Severity | major | ||
| Status | new | Resolution | open | ||
| Platform | Linux | OS | Debian 6.0 | ||
| Product Version | 7.6.0 | ||||
| Summary | 0032836: Mesh - the model has incomplete visualization compared to ACIS kernel | ||||

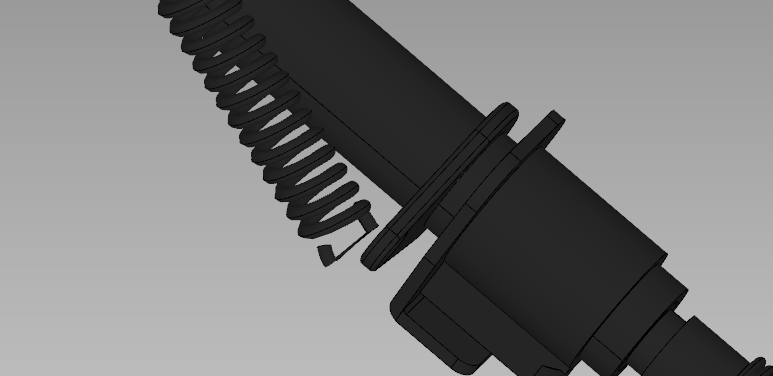

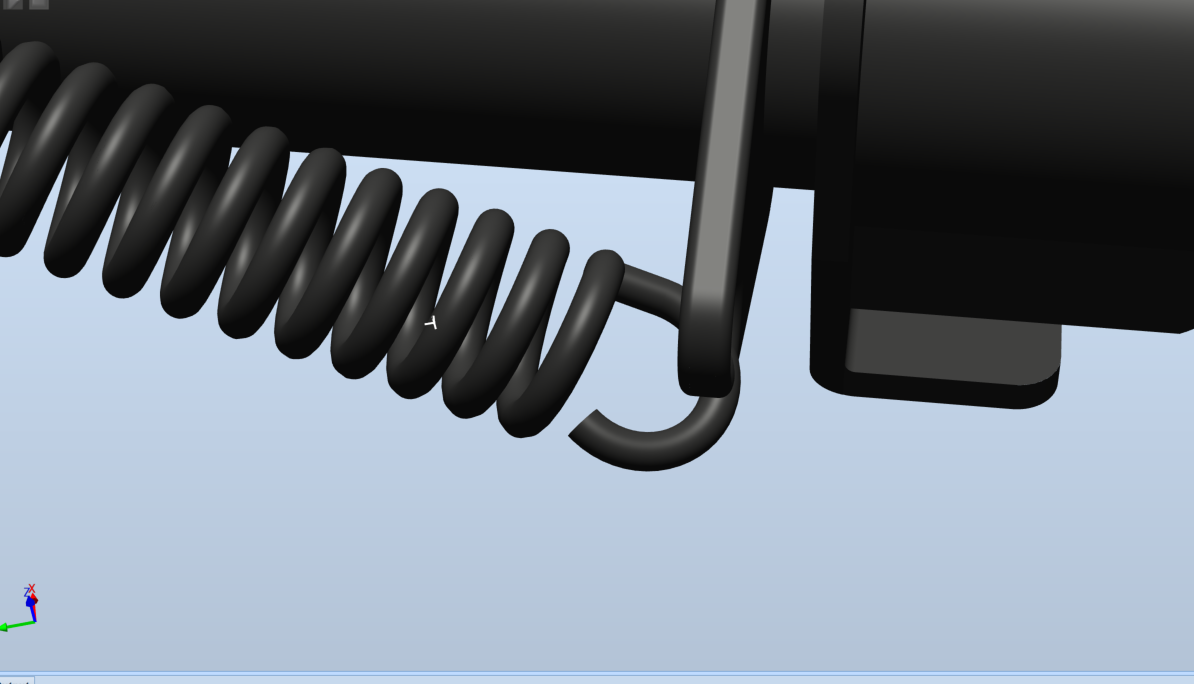

| Description | Import and mesh the STEP model with OCCT BRepMesh_IncrementalMesh. It has incomplete visualization compared with other CAD kernel, e.g., ACIS. I tested with 3 mthods: my own code, FreeCAD, and Mayo. All give the same defect.
13:29 ... Step File Reading : 'dwojnog ris.stp' ... STEP File Read ...
... Step File loaded ...
92738 records (entities,sub-lists,scopes), 265221 parameters ... Parameters prepared ...
... Objects analysed ...
STEP Loading done : 59625 Entities
13:29 Count STEP Reader Warnings for 'dwojnog ris.stp'
----- -----------
4 W:(NAMED_UNIT,PLANE_ANGLE_UNIT,SI_UNIT): Parameter n0.1 (dimensions) not Derived
4 W:(NAMED_UNIT,SI_UNIT,SOLID_ANGLE_UNIT): Parameter n0.1 (dimensions) not Derived
4 W:(LENGTH_UNIT,NAMED_UNIT,SI_UNIT): Parameter n0.1 (dimensions) not Derived
Nb Total:12 for 3 items
13:29 Count STEP Translator Warnings for 'dwojnog ris.stp'
----- -----------
147 W:FACE_SURFACE: Missing seam-edge added
31 W:CLOSED_SHELL: Improperly connected shell split into parts
202 W:EDGE_LOOP: Edges were intersecting, corrected
1 W:(BOUNDED_SURFACE,B_SPLINE_SURFACE,B_SPLINE_SURFACE_WITH_KNOTS,GEOMETRIC_REPRESENTATION_ITEM,RATIONAL_B_SPLINE_SURFACE,REPRESENTATION_ITEM,SURFACE): Surface forced to be periodic
12 W:B_SPLINE_SURFACE_WITH_KNOTS: Surface forced to be periodic
Nb Total:393 for 5 items
| ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| related to | 0032496 | new | Data Exchange - STEP surface_of_revolution does not display |
|
|
|
|
It doesn't look like a meshing issue to me - more like an invalid STEP definition or some issue in OCCT STEP translator / shape healing. |
|
|
Possible related issue: https://tracker.dev.opencascade.org/view.php?id=32496 |
|
|
If the part is isolated, then the meshing is correct. Attached is the isolated part. |
|
|

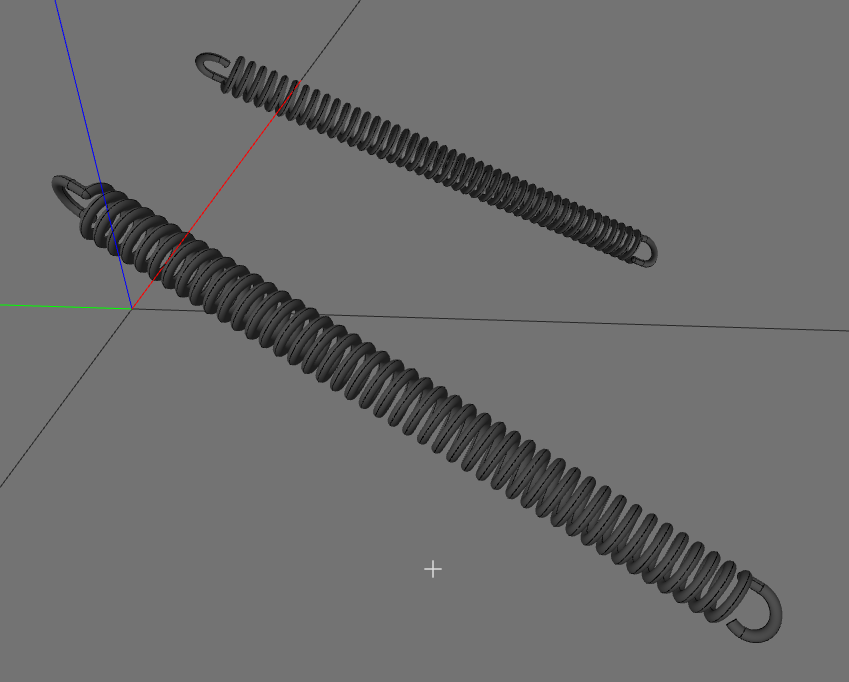

Attached is the screenshot of the meshing of the isolated part, which is correct. Screenshot 2023-08-04 155603.png (90,863 bytes) |
|
|
It looks like the adjacent part interfered with the meshing of the helical part. |
