View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0032858 | Community | OCCT:Mesh | public | 2022-02-26 09:50 | 2022-03-05 09:19 |
| Reporter | lsun02_134045 | Assigned To | oan | ||
| Priority | normal | Severity | minor | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2015 | ||
| Product Version | 7.6.1 | ||||
| Summary | 0032858: wrong mesh result for rendering | ||||
| Description | there is a narrow planar ring in the stp file. the brepmesh_incremental mesh creates a triangluation of the outer wire, which results a circle instead of a ring after rendering. i am using line defect=0.01, angle=pi/12 if the model is cut into half, some of them have no issue but some have. | ||||
| Steps To Reproduce | if the model is opened with freecad or cadassitant, the issue can then be seen. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| related to | 0032496 | new | Data Exchange - STEP surface_of_revolution does not display |
|
|
hub-left.stp (30,532 bytes) hub-right.stp (30,552 bytes) hub-up.stp (36,986 bytes) hub-down.stp (31,014 bytes) |
|
|

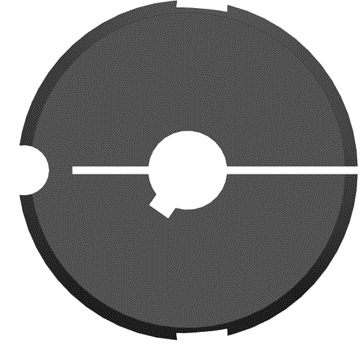

hub.stp (38,098 bytes) result open in NX.png (17,868 bytes) |
|
|
Reminder sent to: oan Hi oan, could you help to have a look at this issue? thanks. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2022-02-26 09:50 | lsun02_134045 | New Issue | |
| 2022-02-26 09:50 | lsun02_134045 | Assigned To | => oan |
| 2022-02-26 09:55 | lsun02_134045 | Note Added: 0107068 | |
| 2022-02-26 09:55 | lsun02_134045 | File Added: hub-left.stp | |
| 2022-02-26 09:55 | lsun02_134045 | File Added: hub-right.stp | |
| 2022-02-26 09:55 | lsun02_134045 | File Added: hub-up.stp | |
| 2022-02-26 09:55 | lsun02_134045 | File Added: hub-down.stp | |
| 2022-02-26 09:55 | lsun02_134045 | Note Added: 0107069 | |
| 2022-02-26 09:55 | lsun02_134045 | File Added: hub.stp | |

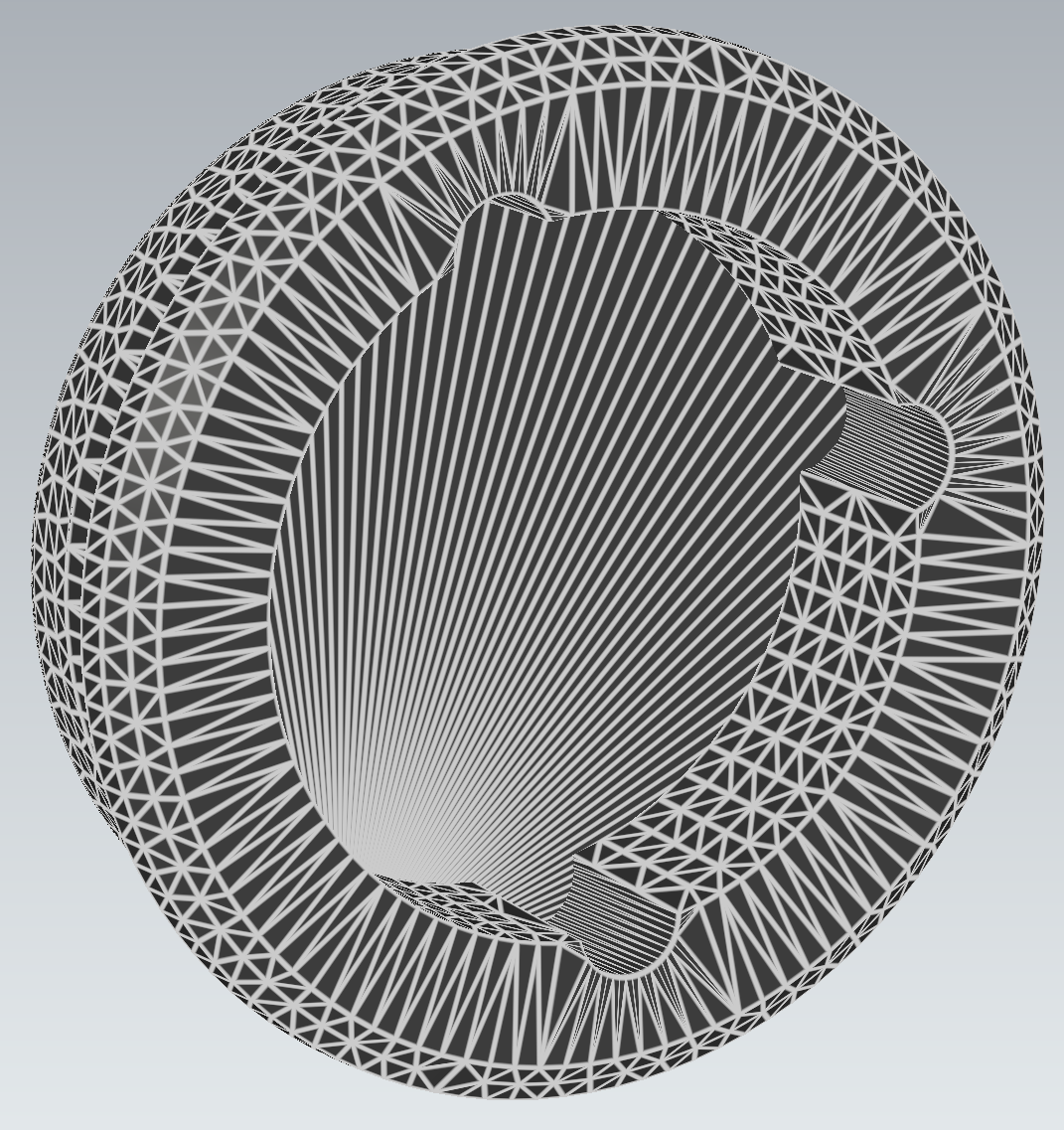

| 2022-02-26 09:55 | lsun02_134045 | File Added: result open in cadasstant--with one more circular face in the middle.PNG | |
| 2022-02-26 09:55 | lsun02_134045 | File Added: result open in NX.png | |
| 2022-02-26 10:54 | kgv | Relationship added | related to 0032496 |
| 2022-03-05 09:19 | lsun02_134045 | Note Added: 0107191 |
