Summary0033023: Incomplete 3D model from STEP
DescriptionAttached STEP file looks fine in Solidworks or Esprit, but missing some details when loaded in FreeCAD or DrawTestHarness
Steps To ReproduceIn DrawTestHarness:
> stepread WDA.STP a *
Transfer entity n0 17 OK -> DRAW Shape: a_1
> vsetdispmode 1
> vdisplay a_1
TagsNo tags attached.
Test case number

Attached Files

Activities

MongolianToothFairy

2022-06-21 21:57

reporter   ~0109167

Sample STEP file
WDA.STP (551,371 bytes)

MongolianToothFairy

2022-06-21 21:58

reporter   ~0109168

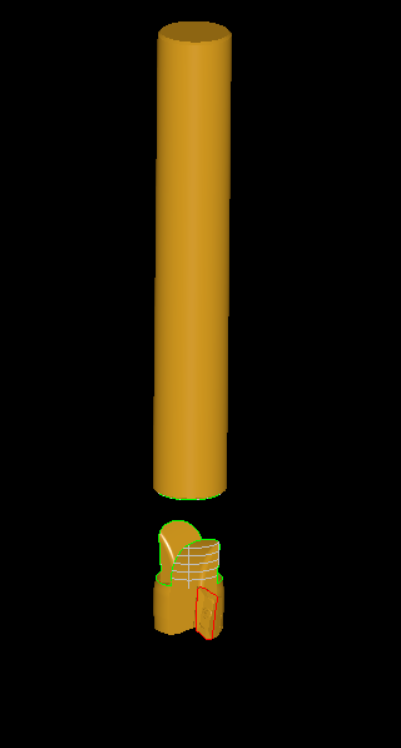

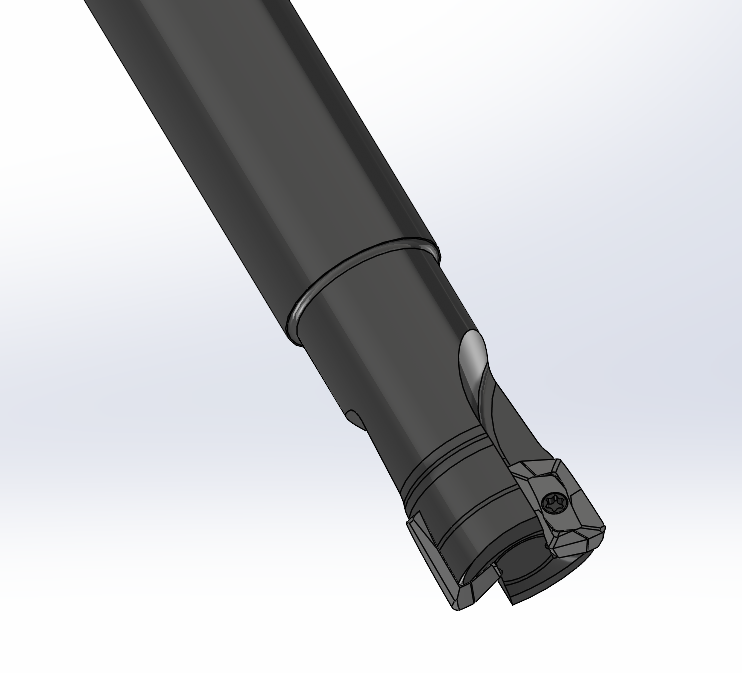

3D model comparison (in Solidworks vs DrawTestHarness
