View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033133 | Community | OCCT:Modeling Algorithms | public | 2022-09-06 08:56 | 2025-12-16 16:18 |
| Reporter | Oliver R | Assigned To | dpasukhi | ||
| Priority | normal | Severity | minor | ||
| Status | resolved | Resolution | open | ||
| Product Version | 7.6.3 | ||||
| Target Version | Unscheduled | ||||
| Summary | 0033133: BRepPrimAPI_MakeTorus does not return a torus | ||||
| Description | when a1 is not 0 and a2 is not 2 Pi and angle is not 2 Pi things go south: BRepPrimAPI_MakeTorus(axis, r1, r2, a1, a2, angle) Other combination of values may also be problematic. See discussion in forum. | ||||
| Steps To Reproduce |
#include <iostream>
#include <gp_Ax2.hxx>
#include <TopoDS_Shape.hxx>
#include <BRepPrimAPI_MakeTorus.hxx>
#include <StlAPI_Writer.hxx>
#include <BRepMesh_IncrementalMesh.hxx>
void Generate_Shape(TopoDS_Shape * store)
{
gp_Ax2 axis = gp_Ax2(gp_Pnt(0,0,0), gp_Dir(0,0,1));
Standard_Real r1 = 1.0;
Standard_Real r2 = 0.1;
Standard_Real a1 = -1.5708;
Standard_Real a2 = 1.5708;
Standard_Real angle = 2.094;
TopoDS_Shape shape = BRepPrimAPI_MakeTorus(axis, r1, r2, a1, a2, angle).Shape();
*store = shape;
}
void Write_STL(TopoDS_Shape * store)
{
StlAPI_Writer stl_writer;
BRepMesh_IncrementalMesh Mesh( *store, 0.01 );
Mesh.Perform();
if (stl_writer.Write(*store, "demo1.stl")) {
std::cout << std::endl << "True ";
} else {
std::cout << std::endl << "False ";
}
}
int main()
{
TopoDS_Shape *store = new TopoDS_Shape();
Generate_Shape(store);
Write_STL(store);
return 0;
}
g++ -I ~/builds/build/include/opencascade -L ~/builds/build/lin64/gcc/lib demo_simple_13.cpp -lTKBin -lTKBinL -lTKBinTObj -lTKBinXCAF -lTKBO -lTKBool -lTKBRep -lTKCAF -lTKCDF -lTKDCAF -lTKDraw -lTKernel -lTKFeat -lTKFillet -lTKG2d -lTKG3d -lTKGeomAlgo -lTKGeomBase -lTKHLR -lTKIGES -lTKLCAF -lTKMath -lTKMesh -lTKMeshVS -lTKOffset -lTKOpenGl -lTKPrim -lTKQADraw -lTKRWMesh -lTKService -lTKShHealing -lTKStd -lTKStdL -lTKSTEP209 -lTKSTEP -lTKSTEPAttr -lTKSTEPBase -lTKSTL -lTKTObj -lTKTObjDRAW -lTKTopAlgo -lTKTopTest -lTKV3d -lTKVCAF -lTKViewerTest -lTKVRML -lTKXCAF -lTKXDEDRAW -lTKXDEIGES -lTKXDESTEP -lTKXMesh -lTKXml -lTKXmlL -lTKXmlTObj -lTKXmlXCAF -lTKXSBase -lTKXSDRA | ||||
| Additional information and documentation updates | Discussed here: https://dev.opencascade.org/content/brepprimapimaketorus-does-not-return-torus | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
The problem persists if you change Standard_Real a1 = -1.5708; to Standard_Real a1 = 1.5708/2; |
|
|
Ticket: https://github.com/Open-Cascade-SAS/OCCT/pull/928 |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2022-09-06 08:56 | Oliver R | New Issue | |
| 2022-09-06 08:56 | Oliver R | Assigned To | => msv |

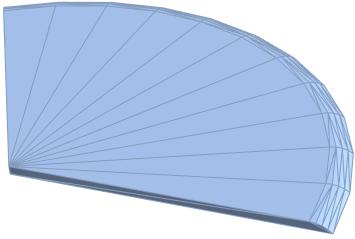

| 2022-09-06 08:56 | Oliver R | File Added: WrongTorus.jpeg | |
| 2022-09-06 09:05 | Oliver R | Note Added: 0110698 | |
| 2022-09-06 10:00 | kgv | Target Version | => 7.7.0 |
| 2022-09-06 10:00 | kgv | Steps to Reproduce Updated | |
| 2022-09-06 10:00 | kgv | Steps to Reproduce Updated | |
| 2022-09-06 10:01 | kgv | Steps to Reproduce Updated | |
| 2022-09-06 11:30 |
|
Relationship added | has duplicate 0033134 |
| 2022-10-24 10:40 |
|
Target Version | 7.7.0 => 7.8.0 |
| 2023-08-01 15:08 | dpasukhi | Target Version | 7.8.0 => Unscheduled |
| 2025-12-16 16:17 | dpasukhi | Note Added: 0117110 | |
| 2025-12-16 16:18 | dpasukhi | Assigned To | msv => dpasukhi |
| 2025-12-16 16:18 | dpasukhi | Status | new => resolved |
