View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033358 | Community | OCCT:Modeling Algorithms | public | 2023-04-05 15:19 | 2023-08-01 15:33 |
| Reporter | Matthias | Assigned To | akaftasev | ||
| Priority | normal | Severity | minor | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2017 | ||
| Product Version | 7.7.0 | ||||
| Target Version | Unscheduled | ||||
| Summary | 0033358: Modeling Algorithms - Boolean cut operation with faulty result | ||||

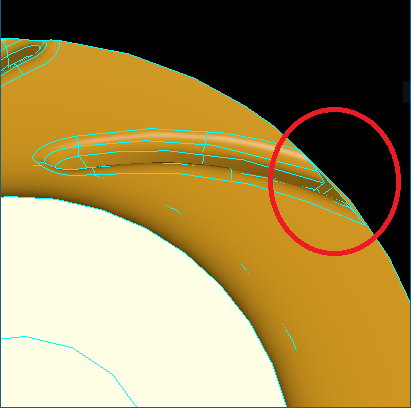

| Description | Resulting shape of boolean cut operation of given input shapes is faulty: * "bopargcheck" returns faulty elements * resulting shape is unexpected in the marked area (screenshot) | ||||
| Steps To Reproduce | restore fd.brep restore tool.brep bcut r fd tool bopargcheck r | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2023-04-05 15:19 | Matthias | New Issue | |
| 2023-04-05 15:19 | Matthias | Assigned To | => oan |
| 2023-04-05 15:20 | Matthias | Note Added: 0113366 | |
| 2023-04-05 15:20 | Matthias | File Added: image.png | |
| 2023-04-05 15:20 | Matthias | File Added: fd.brep | |
| 2023-04-05 15:20 | Matthias | File Added: tool.brep | |
| 2023-04-05 15:21 | Matthias | Description Updated | |
| 2023-04-05 15:21 | Matthias | Steps to Reproduce Updated | |
| 2023-04-05 15:22 | Matthias | Description Updated | |
| 2023-04-05 15:52 | dpasukhi | Target Version | 7.7.1 => Unscheduled |
| 2023-04-05 15:52 | dpasukhi | Summary | Boolean cut operation with faulty result => Modeling Algorithms - Boolean cut operation with faulty result |
| 2023-08-01 15:33 | dpasukhi | Assigned To | oan => akaftasev |
