| Summary | 0033434: Data Exchange - Incorrect converting of model from .stp file to .gltf file | ||||

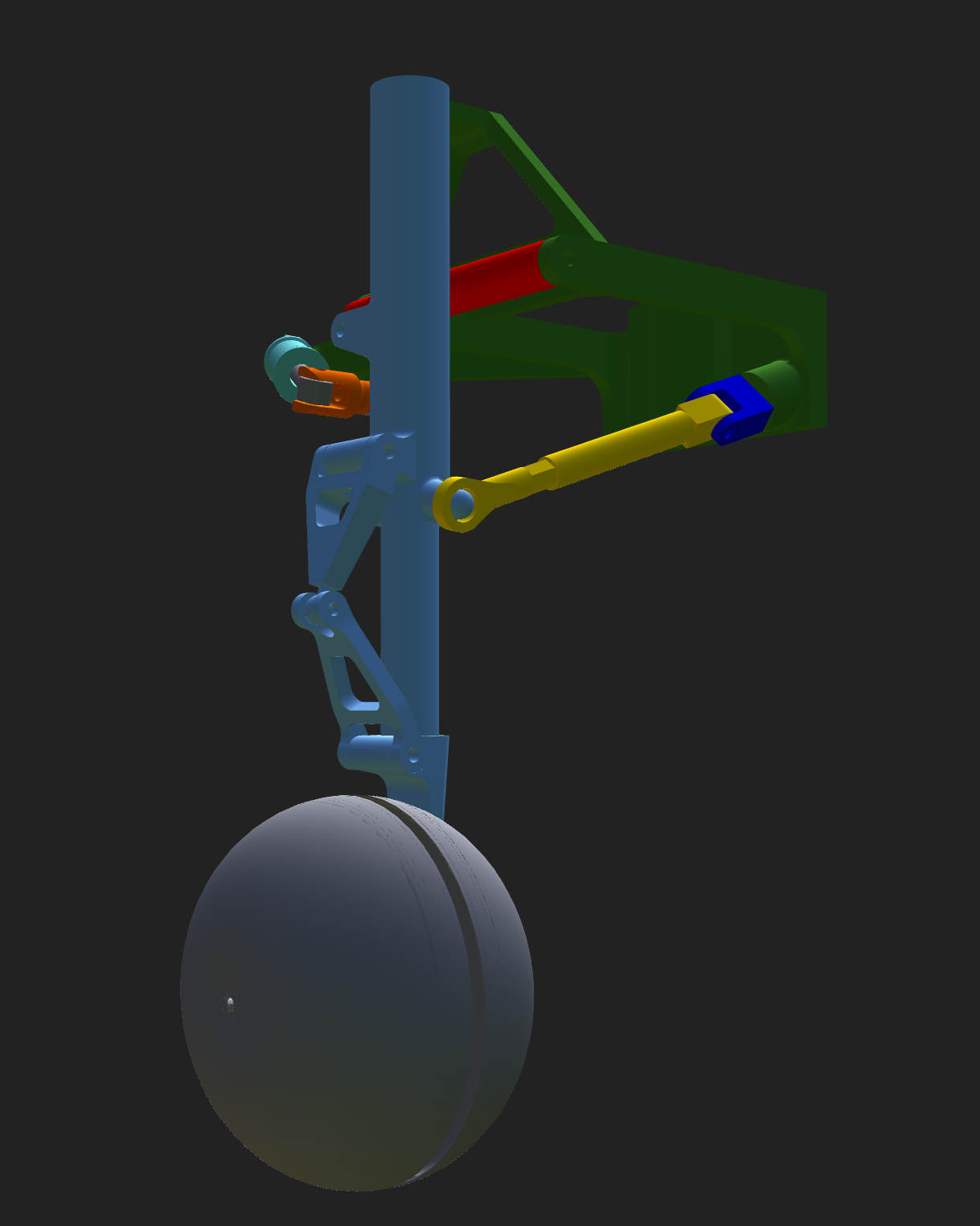

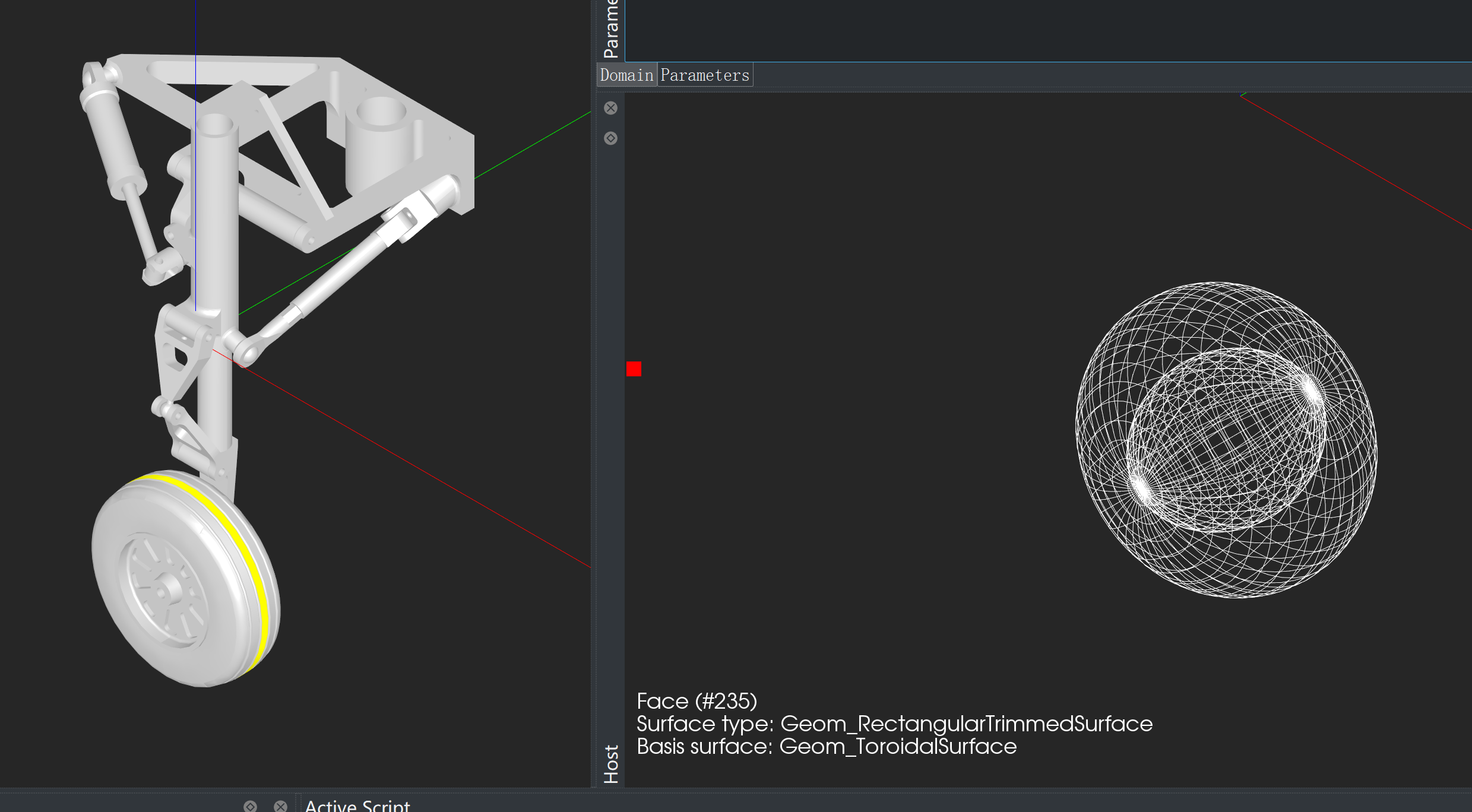

| Description | After converting to a .glb file, one of the parts of the model does not look the same as it was originally. Regression since OCCT 7.7.0. | ||||
| Steps To Reproduce |
int main(int argc, char* argv[]) {
const char* stepFileName = "C:\\Programs\\step2gltf\\test\\Case2_GEAR.step";
const char* gltfFileName = "C:\\Programs\\step2gltf\\gltf\\Case2_GEAR_Official.glb";
// Create XDE document
Handle(TDocStd_Document) doc;
Handle(XCAFApp_Application) app = XCAFApp_Application::GetApplication();
BinXCAFDrivers::DefineFormat(app);
app->NewDocument("BinXCAF", doc);
// Parse step file into XDE document
STEPCAFControl_Reader reader;
IFSelect_ReturnStatus readStat = reader.ReadFile(stepFileName);
reader.Transfer(doc);
Handle(XCAFDoc_ShapeTool) shapeTool = XCAFDoc_DocumentTool::ShapeTool(doc->Main());
TDF_LabelSequence aRootLabels;
shapeTool->GetFreeShapes(aRootLabels);
TopoDS_Compound aCompound;
BRep_Builder aBuildTool;
aBuildTool.MakeCompound(aCompound);
for (TDF_LabelSequence::Iterator aRootIter(aRootLabels); aRootIter.More(); aRootIter.Next())
{
const TDF_Label& aRootLabel = aRootIter.Value();
TopoDS_Shape aRootShape;
if (XCAFDoc_ShapeTool::GetShape(aRootLabel, aRootShape))
{
aBuildTool.Add(aCompound, aRootShape);
}
}
// perform meshing
Handle(Prs3d_Drawer) aDrawer = new Prs3d_Drawer(); // holds visualization defaults
BRepMesh_IncrementalMesh anAlgo;
anAlgo.ChangeParameters().Deflection = 0.1;
anAlgo.ChangeParameters().Angle = 20.0 * M_PI / 180.0; // 20 degrees
anAlgo.ChangeParameters().InParallel = true;
anAlgo.SetShape(aCompound);
anAlgo.Perform();
// write or export the document
TColStd_IndexedDataMapOfStringString aMetadata;
RWGltf_CafWriter aGltfWriter(gltfFileName, true);
// STEP reader translates into mm units by default
aGltfWriter.ChangeCoordinateSystemConverter().SetInputLengthUnit(0.001);
aGltfWriter.ChangeCoordinateSystemConverter().SetInputCoordinateSystem(RWMesh_CoordinateSystem_Zup);
Message_ProgressRange optionalIndicator;
if (!aGltfWriter.Perform(doc, aMetadata, optionalIndicator))
{
// export error
}
}
| ||||
| Additional information and documentation updates | https://dev.opencascade.org/content/fail-convert-geomrectangulartrimmedsurface-step-files-gltf-files | ||||
