| Summary | 0033477: Modeling Algorithms - Boolean cut operation produces wrong result | ||||

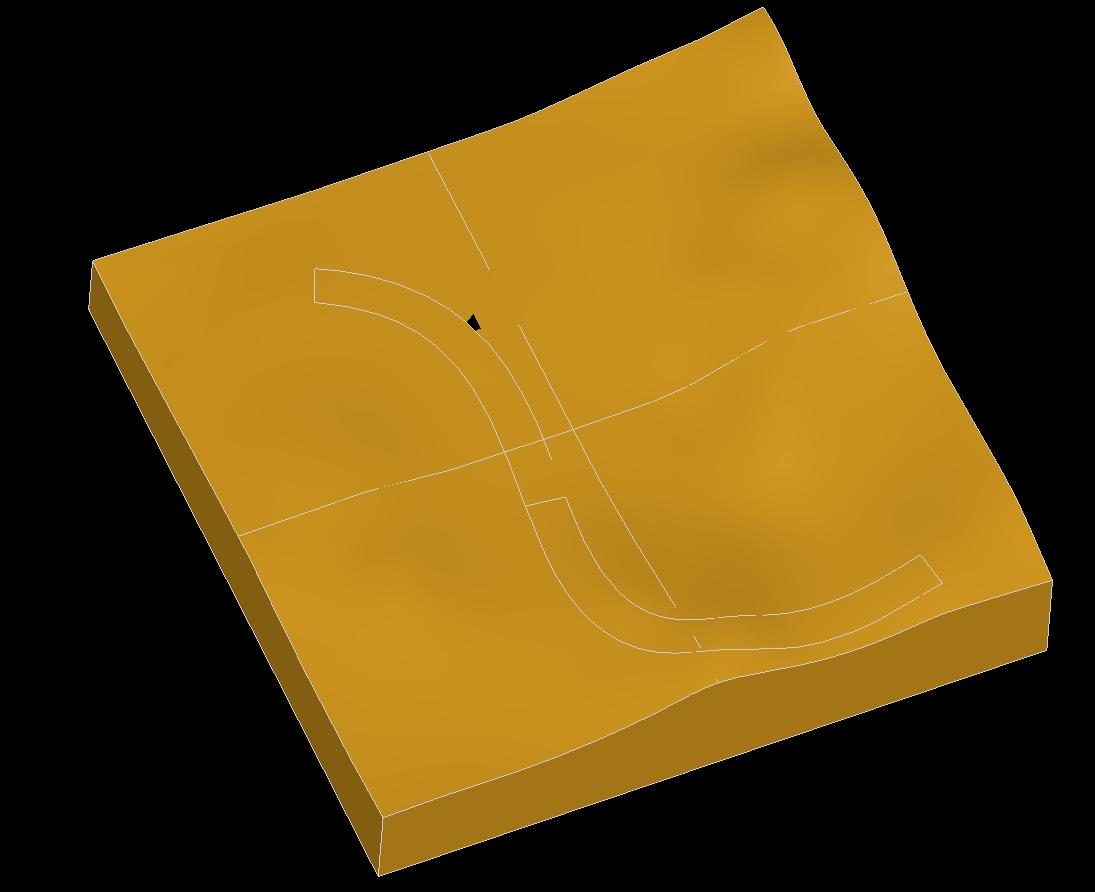

| Description | Resulting shape of boolean cut operation of given input shapes is wrong: * resulting shape looks more like it was and an imprint operation rather than a cut. Tools (cylinders) must be subtracted from an argument (block) (screenshot) | ||||
| Steps To Reproduce | restore block.brep restore cylinder_1.brep restore cylinder_2.brep bclearobjects bcleartools baddobjects block baddtools cylinder_1 cylinder_2 bfillds bbop rcut 2 save rcut result_rcut.brep | ||||
| Additional information and documentation updates | Other boolean operations are also incorrect(common, fuse, etc.) | ||||
