| Summary | 0033482: Modeling Algorithms - Bad result with BRepAlgoAPI_Common | ||||

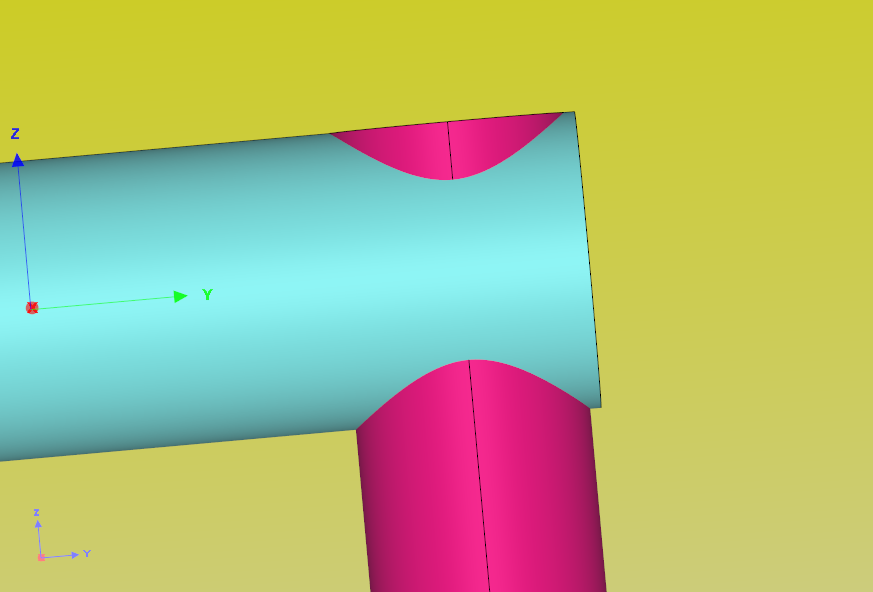

| Description | Hi ! BRepAlgoAPI_Common can give no result although there is clearly a big common part between 2 shapes (see attached picture) | ||||
| Steps To Reproduce | You can use Tool and Argument joined in "NotDetected.zip" | ||||
| Additional information and documentation updates | A very slight transformation in Z of one shape give the right result. You can check with Argument and Tool in "Detected.zip". It looks like the result is bad when the shapes are perfectly aligned in Z (see picture). It seems that "curves" value in myDS can be wrong. Behaviour between good case and bad case is different in getBoundPaves (hierarchy is PutBoundPaveOnCurve / MakeBlocks / ... / IntersectShapes) : vertex and point compared are sometimes too different. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
Dear @j.bourgoin. current problem can be solved by decreasing the tolerance for boolean operation (to 0.00001). If it is not your case, we can continue investigate this problem. |
|
|
Dear @akaftasev, thanks a lot for your help. Indeed, this can be fixed by setting the tolerance to 0.00001 but it doesn't work with tolerance = 0 or tolerance = 0.0000001. The common part is big and I think it shouldn't depend on the tolerance. Maybe there's a "global" fix ? |
|
|
Reminder sent to: akaftasev Hi @akaftasev, did you have time to check this issue and why a small change in the tolerance has a so big impact (and leads to wrong result) ? |
|
|
Hi, is there any update for this issue please ? |
|
|
Merged into trad-781, repository: https://github.com/Open-Cascade-SAS/OCCT-Archive/tree/trad-781 Commit: d6b282dc4b9fe429d4e03b775532736219bb80b4 Branch: https://github.com/Open-Cascade-SAS/OCCT-Archive/tree/trad-781 |
