View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033492 | Community | OCCT:Modeling Algorithms | public | 2023-09-26 16:44 | 2025-06-17 14:24 |
| Reporter | PeterB | Assigned To | dpasukhi | ||
| Priority | normal | Severity | crash | ||
| Status | new | Resolution | open | ||
| Product Version | 7.7.1 | ||||
| Summary | 0033492: STEP generated with OC 7.3.0: infinite loop in HLRBRep_InternalAlgo::Update() when imported with OC 7.6.0, 7.7.0, 7.7,2 | ||||
| Description | we have a STEP file that was generated / saved with OC 7.3.0 === OK / GOOD === with OC 7.3.0 we still were able to generate the right and left hand 2D views === BUG / REGRESSION === with OC 7.6.0, 7.7.0, 7.7,2 the right and left hand 2D views cannot be generated any more due to an infinite loop in HLRBRep_InternalAlgo::Update() => see attached call stack === related OC issues === 0033226: Modeling Alghorithms - Infinite loop in HLRBRep_InternalAlgo::Update() generating 2D view of right hand side from STEP file => root cause *might* be the same === TMS === customer issue ticket: Designer-43001 | ||||

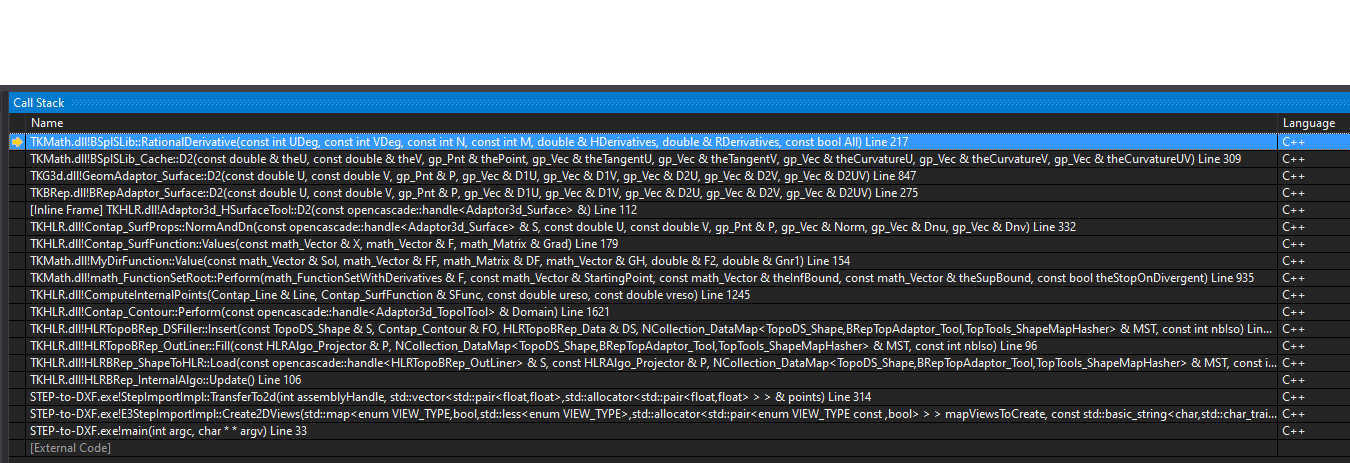

| Steps To Reproduce | see attached: + STEP-to-DXF-CmdLineTool.zip NOTE: contains ReadMe.txt + STEP file "Designer-43001--Beispiel_2.stp" NOTE: could not be attached as it has 8.5 MB + screenshot of call stack of infinite loop in HLRBRep_InternalAlgo::Update() The contained Visual Studio 17 solution exemplifies in an STEP to DXF command line tool how we use OpenCascade to read STEP files and generate the six 2D views (front, back, right, left, top, bottom) Generating the *right* and *left* hand side 2D views for the attached STEP file the execution hangs in an infinite loop in HLRBRep_InternalAlgo::Update() severity of an infinite loop is IMHO comparable to "crash" | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
still reproducible with OpenCascade 7.8.0 |
|
|
still reproducible with + OpenCascade 7.8.1 +OpenCascade 7.9.0 === JIRA === E3-4775 |
|
|
Hi @dpasukhi we wonder whether you could resolve this regression any time soon, pls? Kind regards, Peter B. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2023-09-26 16:44 | PeterB | New Issue | |
| 2023-09-26 16:44 | PeterB | Assigned To | => oan |
| 2023-09-26 16:44 | PeterB | File Added: OC-7.3.0-inf-loop-HLRBRep_InternalAlgo-Update.png | |
| 2023-09-26 16:44 | PeterB | File Added: STEP-to-DXF-CmdLineTool.zip | |
| 2024-03-14 19:05 | PeterB | Note Added: 0115370 | |
| 2024-05-16 14:43 | oan | Assigned To | oan => dpasukhi |
| 2025-06-17 14:23 | PeterB | Note Added: 0117035 | |
| 2025-06-17 14:24 | PeterB | Note Added: 0117036 |
