Summary0033493: Modeling Algorithms - Boolean cut operation produces wrong result
DescriptionResulting shape of boolean cut operation of given input shapes is wrong:

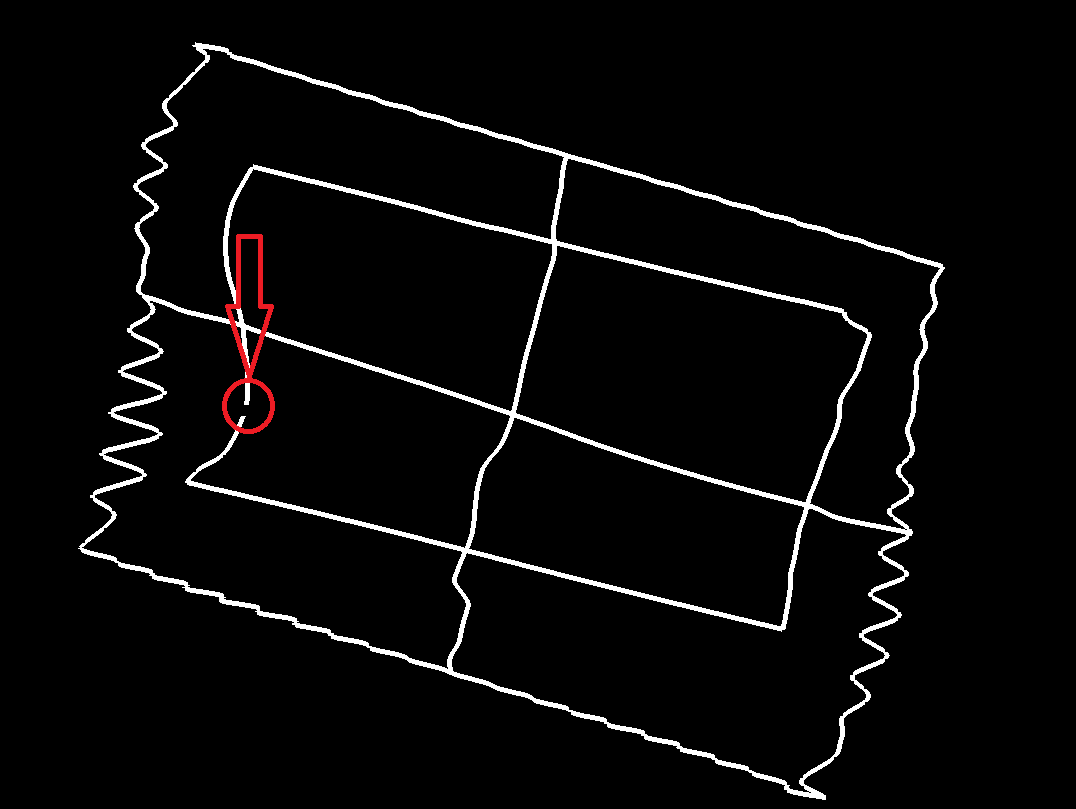

* looks like there is small area where cut did not work

Steps To Reproduce
restore surface.brep
restore block.brep

bclearobjects
bcleartools

baddobjects surface
baddtools block

bfillds

bbop rcut 2
save rcut result_rcut.brep
TagsNo tags attached.
Test case number

Attached Files

Activities

Vadym Holovko

2023-09-26 17:28

reporter   ~0114292

block.brep (406,055 bytes)

Vadym Holovko

2023-09-26 17:29

reporter   ~0114293

block-2.brep (3,388 bytes)
surface.7z (1,952,809 bytes)

Vadym Holovko

2023-09-26 17:44

reporter   ~0114294

Instead of restore block.brep use restore block-2.brep, block.brep is wrong attachment.
