| Summary | 0033507: STEP import results in BREP with transparent D-Sub plug | ||||

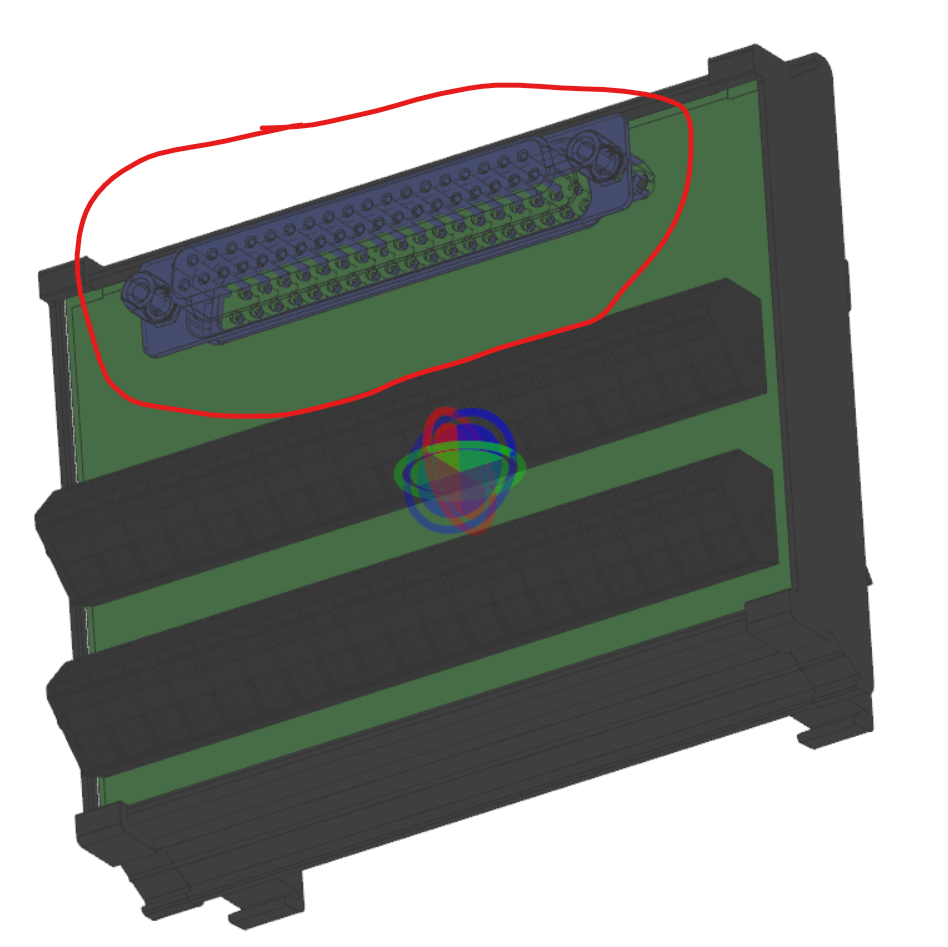

| Description | STEP import results in strange looking BREP with transparent D-Sub plug or inverted surfaces | ||||
| Steps To Reproduce | NATIONAL_INSTRUMENTS_778676-01_MANUFACTURER_MODEL.stp to big for upload (5770 kB) | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
Dear PeterB, it is impossible to investigate an issue without the example file, could you please try to archive it or upload it via 3rd-patties resource, Google drive for example, and share the link? |
|
|
Looks like this is "STP - 778676-01" from https://www.ni.com/en/support/documentation/dimensional-drawings/model.cb-37fh.html |
|
|
I don't know which renderer the OP uses, but in KiCad we ended up rendering all shells without solids as double-sided. |
|
|
See https://forum.kicad.info/t/3d-model-of-part-appears-transparent-from-side-and-bottom/46270/ https://forum.freecad.org/viewtopic.php?t=82751 |
