| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033522 | Community | OCCT:Data Exchange | public | 2023-11-06 13:02 | 2025-06-17 14:18 |
| Reporter | PeterB | Assigned To | ika | ||
| Priority | normal | Severity | major | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2017 | ||
| Product Version | 7.7.1 | ||||
| Summary | 0033522: generation of 2D FRONT view results in erroneous frame corners | ||||
| Description | generation of 2D FRONT view results in erroneous frame corners NOTE: bug is reproducible with OCC 7.7.2 | ||||

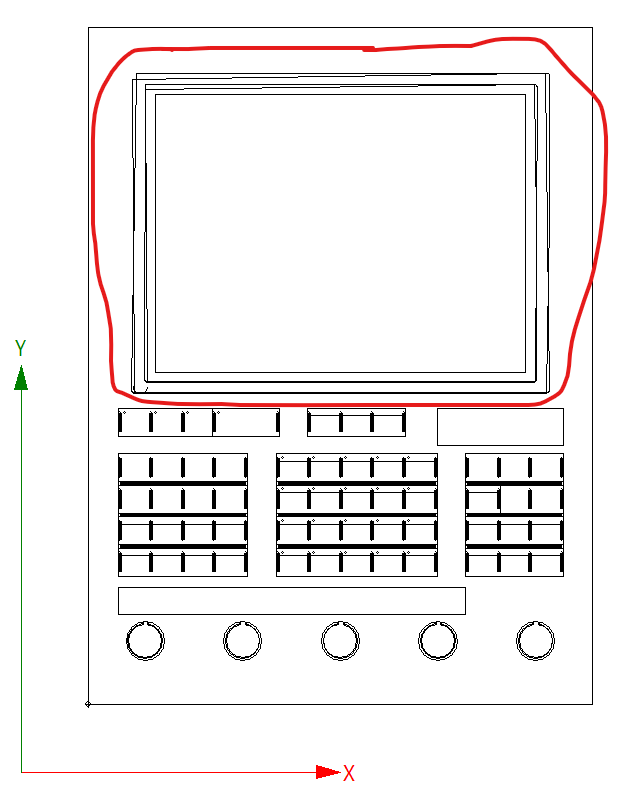

| Steps To Reproduce | see attached: + STEP-to-DXF-CmdLineTool.zip NOTE: contains ReadMe.txt + STEP file NOTE: contains several nested frames + screenshot of front view NOTE: defective corners marked in red) + DXF of front view The contained Visual Studio 17 solution exemplifies in an STEP to DXF command line tool how we use OpenCascade to read STEP files and generate the six 2D views (front, back, right, left, top, bottom) BUG: generation of 2D FRONT view results in erroneous frame corners | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
=== JIRA === E3-4779 |
|
|
still reproducible with: + OpenCAscade 7.8.1 + OpenCascade 7.9.0 |
|
|
STEP File is 16 MB in size and thus cannot be uploaded: + E3-4779--OP350-LDC-6006_093305_stp.stp |
|
|
managed to upload zipped STEP file |
|
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2023-11-06 13:02 | PeterB | New Issue | |
| 2023-11-06 13:02 | PeterB | Assigned To | => ika |
| 2025-06-17 13:34 | PeterB | Note Added: 0117028 | |
| 2025-06-17 13:35 | PeterB | Note Added: 0117029 | |
| 2025-06-17 13:36 | PeterB | Note Added: 0117030 | |
| 2025-06-17 14:07 | PeterB | Note Added: 0117033 | |
| 2025-06-17 14:07 | PeterB | File Added: E3-4779--OP350-LDC-6006_093305_stp.zip | |
| 2025-06-17 14:18 | PeterB | Note Added: 0117034 | |
| 2025-06-17 14:18 | PeterB | File Added: E3-4779--OP350-LDC-6006_093305_stp--FRONT.png |
