View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033563 | Community | OCCT:Mesh | public | 2023-12-29 12:24 | 2023-12-29 12:26 |
| Reporter | xuzhongxing | Assigned To | oan | ||
| Priority | normal | Severity | major | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2022 | ||
| Product Version | 7.8.0 | ||||
| Summary | 0033563: STEP model meshing problem | ||||

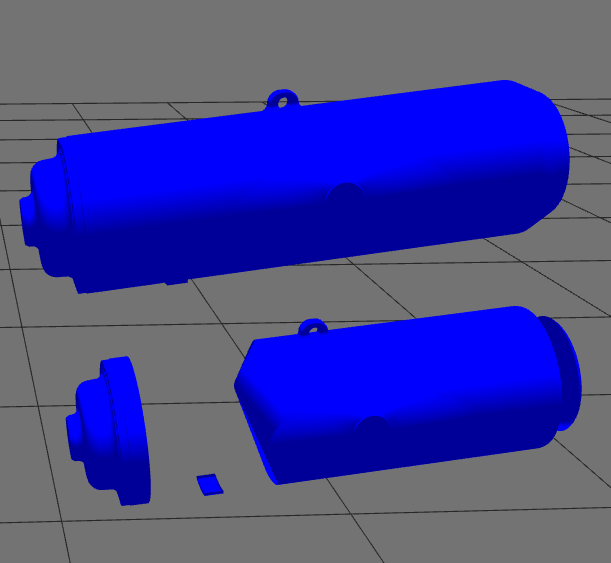

| Description | The attached STEP model has problematic mesh generated by BRepMesh_IncrementalMesh. The above object is the correct mesh. The object below is the mesh generated by occt. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2023-12-29 12:24 | xuzhongxing | New Issue | |
| 2023-12-29 12:24 | xuzhongxing | Assigned To | => oan |
| 2023-12-29 12:25 | xuzhongxing | Note Added: 0114844 | |
| 2023-12-29 12:25 | xuzhongxing | File Added: GP165R_cyl.step | |
| 2023-12-29 12:26 | xuzhongxing | Note Added: 0114845 | |
| 2023-12-29 12:26 | xuzhongxing | File Added: 屏幕截图 2023-12-29 171838.png |
