View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033770 | Community | OCCT:Data Exchange | public | 2024-07-17 15:53 | 2025-06-17 12:19 |
| Reporter | PeterB | Assigned To | ika | ||
| Priority | normal | Severity | major | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2019 | ||
| Product Version | 7.6.2 | ||||
| Summary | 0033770: Regression: STEP file opened in FreeCAD 0.20 with unexpected sphere | ||||
| Description | === BUG === OpenCascade 7.6.2 (as used by FreeCAD 0.20) displays an unexpected sphere for this STEP file => see the huge orange sphere on the attached screenshot === Regression === OpenCascade 7.5.3 (as used by FreeCAD 0.19) does not yet display this unexpected sphere => this bug was introduced with a later/newer OCC version | ||||
| Steps To Reproduce | + start FreeCAD 0.20.2 + File > Open ... + open attached STEP file BUG: see the huge orange sphere on the attached screenshot | ||||
| Additional information and documentation updates | === attachment === reproducer / STEP File: M_2104-1301_HI_WAGO.stp | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
M_2104-1301_HI_WAGO.stp (416,526 bytes) |
|
|

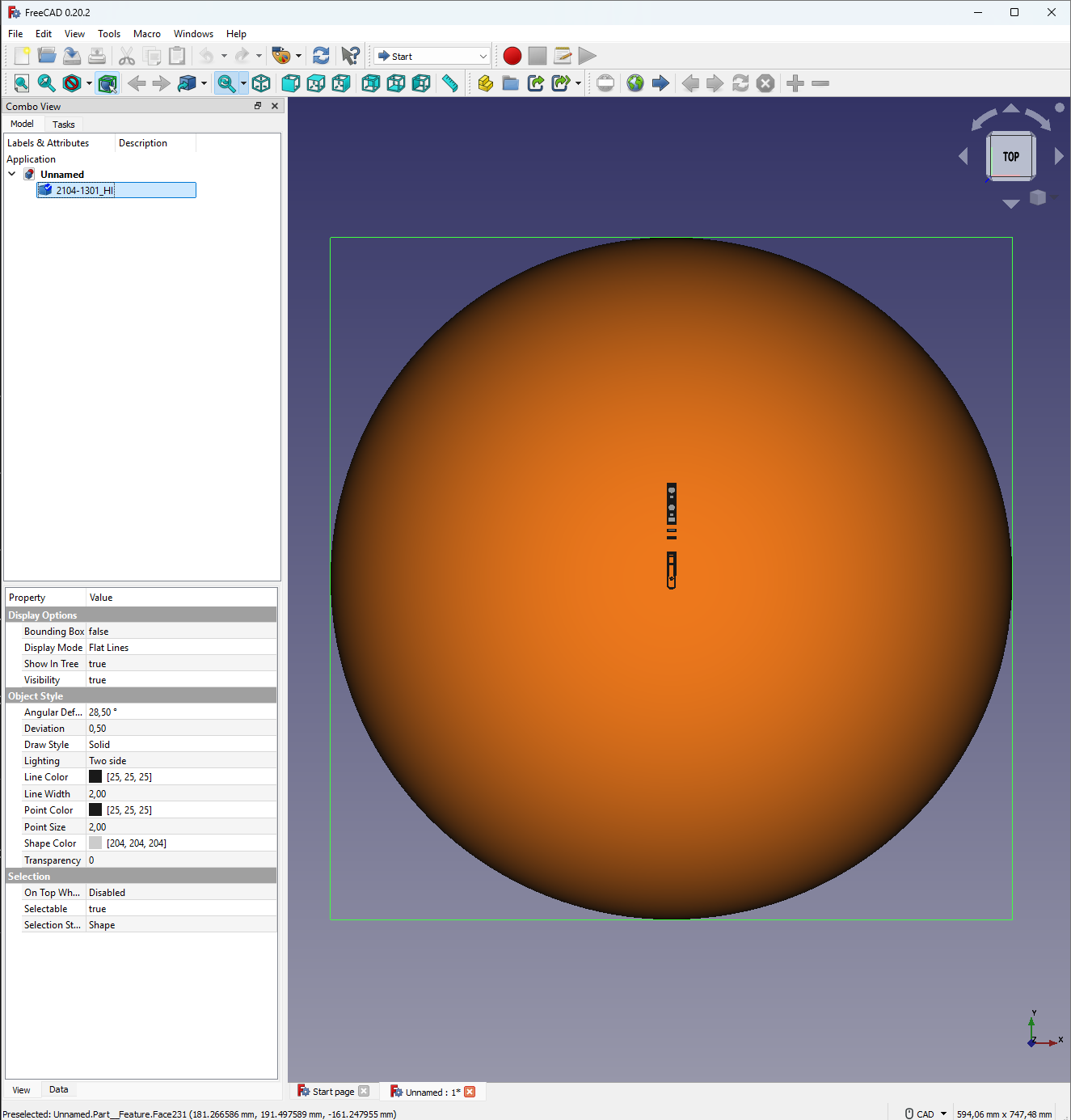

FreeCAD 0.20.2 displays an unexpected sphere FreeCAD-0.20.2--M_2104-1301_HI_WAGO.png (319,805 bytes) |
|
|

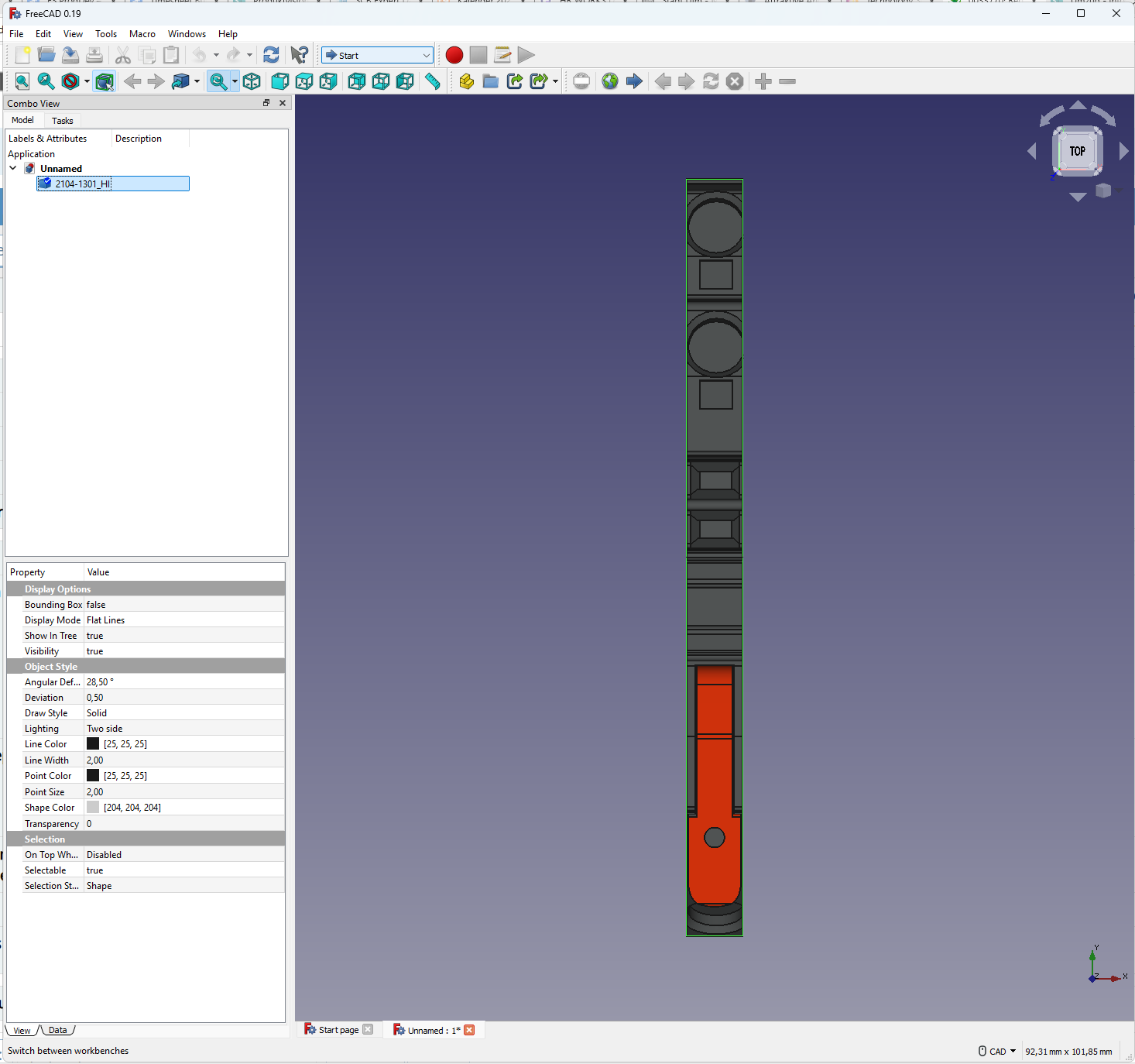

still OK with FreeCAD 0.19 using Open CASCADE Technology 7.5.0 FreeCAD-0.19--M_2104-1301_HI_WAGO.png (120,422 bytes) |
|
|
Hello @ika I attached the two screenshots and STEP file for reproduction. We wonder whether this regression could be fixed any time soon, pls? Best, Peter B. |
|
|
Dear PeterB. We have a similar issue, which have targer 8.0.0 and i will include that issue to be related to the planned. The issue: https://github.com/Open-Cascade-SAS/OCCT/issues/378 Now the Mantis is not active bugtracker, please use GitHub issues. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2024-07-17 15:53 | PeterB | New Issue | |
| 2024-07-17 15:53 | PeterB | Assigned To | => ika |
| 2025-06-17 11:27 | PeterB | Note Added: 0117017 | |
| 2025-06-17 11:27 | PeterB | File Added: M_2104-1301_HI_WAGO.stp | |
| 2025-06-17 11:33 | PeterB | Note Added: 0117018 | |
| 2025-06-17 11:33 | PeterB | File Added: FreeCAD-0.20.2--M_2104-1301_HI_WAGO.png | |
| 2025-06-17 11:39 | PeterB | Note Added: 0117019 | |
| 2025-06-17 11:39 | PeterB | File Added: FreeCAD-0.19--M_2104-1301_HI_WAGO.png | |
| 2025-06-17 11:40 | PeterB | Note Added: 0117020 | |
| 2025-06-17 12:19 | dpasukhi | Note Added: 0117025 |
