| Summary | 0033780: Modeling Algorithms - Generation of FRONT view fails with Standard_OutOfRange | ||||
| Description | generation of FRONT view fails with Standard_OutOfRange Exception => Handle_HLRBRep_Data::NbEdges() == 0 NOTE: bug is reproducible with OCC 7.7.2 === ATTACHMENTS === + STEP-to-DXF-CmdLineTool.zip NOTE: contains ReadMe.txt + STEP file "E009003dEC7133Jcosyplus_wifi_3d.step" cannot be attached: 30 MB / 7 MB (zipped) === REPRODUCTION === The attached Visual Studio 17 solution exemplifies in an STEP to DXF command line tool how we use OpenCascade to read STEP files and generate the six 2D views (front, back, right, left, top, bottom) | ||||
| Steps To Reproduce | NOTE: best to debug using Microsoft Visual Studio === CMDLINE TOOL === C:\Temp> STEP-to-DXF-CmdLineTool.exe E009003dEC7133Jcosyplus_wifi_3d.step STEP-to-DXF Converter v1.1.1 Beta Copyright Zuken E3 GmbH 2022-2024. All rights reserved. W-INFO: Input: 63.70 sec - ".\E009003dEC7133Jcosyplus_wifi_3d.step" W-INFO: Front: E-FATAL: in function "TransferTo2d()": Handle_HLRBRep_Data::NbEdges() == 0 Total Duration: 74.55 sec | ||||
| Additional information and documentation updates | Customer bug tracker ID: E3-1442 | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
|
|
|
|
|
@dpasukhi: pls add our bug tracker ID again in the title - this will help us a lot - thnx! customer bug tracker ID: E3-1442 |
|
|
bug is reproducible as well with OCC 7.8.0 |
|
|
Hi @dpasukhi this bug is still reproducible with + OpenCascade 7.8.1 and + OpenCascade 7.9.0 We wonder whether you could resolve this bug any time soon, pls? Best regards, Peter B. |
|
|
Dear PeterB, The current issue was out of road-map. But looks like that it is a crash, we can check it. But it will be not soon, it will be possible only include as a part of 8.0.0. It don't planned to be included in the closest releases. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2024-07-26 13:16 | PeterB | New Issue | |
| 2024-07-26 13:16 | PeterB | Assigned To | => ika |
| 2024-07-26 13:16 | PeterB | File Added: STEP-to-DXF-CmdLineTool.zip | |
| 2024-07-26 13:20 | PeterB | Note Added: 0116291 | |

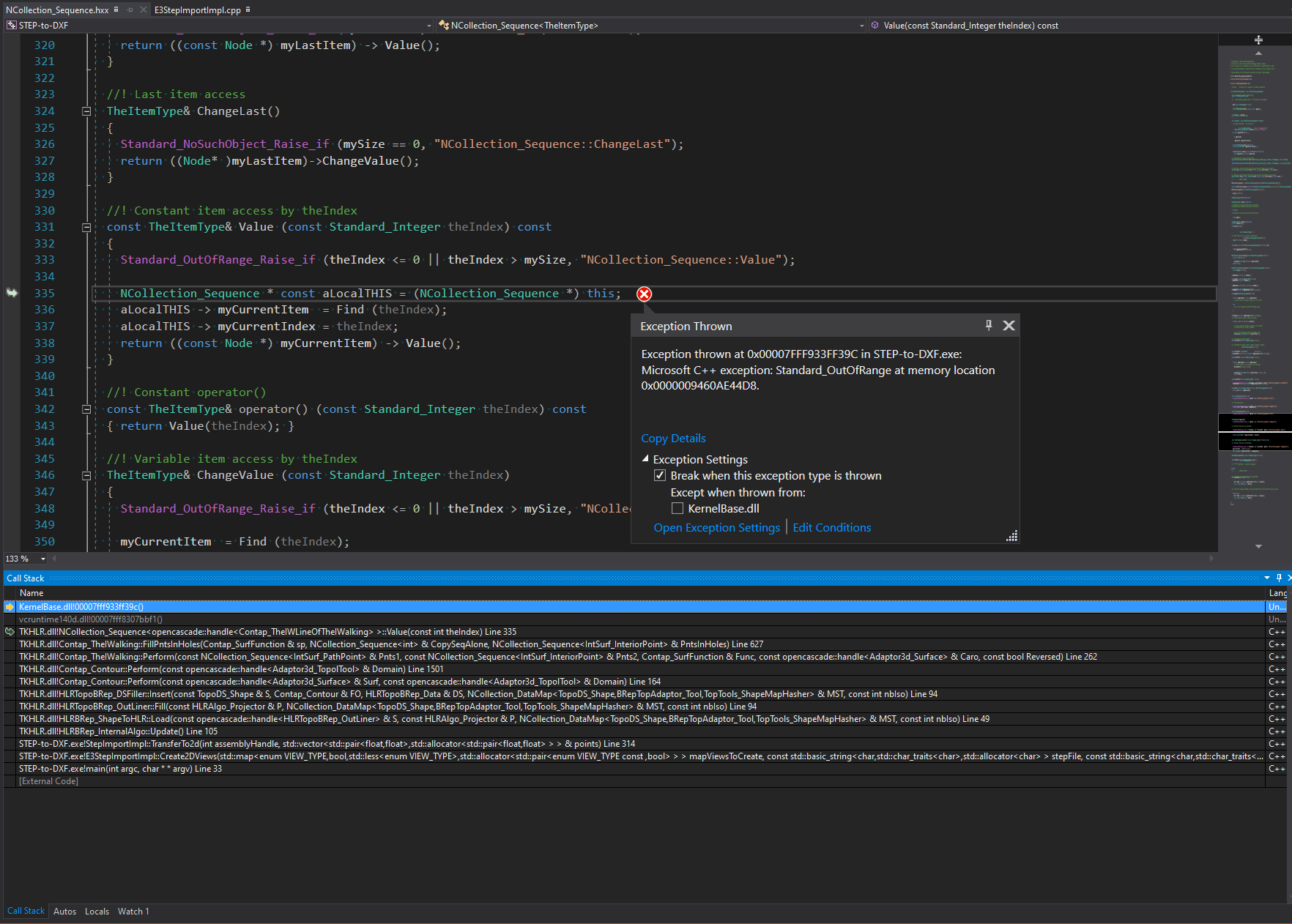

| 2024-07-26 13:20 | PeterB | File Added: Exception-in-NCollection_Sequence.png | |
