0033793: Modeling Algorithms - Fillet creation produces erroneous shape

ID	Project	Category	View Status	Date Submitted	Last Update
0033793	Community	OCCT:Modeling Algorithms	public	2024-08-12 14:22	2024-11-13 19:07

Reporter	Matthias	Assigned To	akaftasev
Priority	normal	Severity	minor
Status	new	Resolution	open
Platform	Windows	OS	VC++ 2017
Product Version	7.8.3

Summary	0033793: Modeling Algorithms - Fillet creation produces erroneous shape

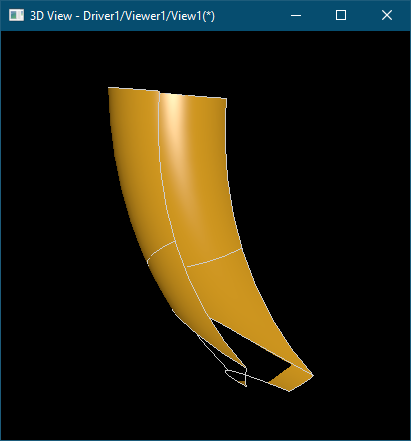

Description	Fillet creations produces an erroneous shell, see image. Fillet radii 2.9mm and 3.1mm are okay, 3.0mm is erroneous.
Steps To Reproduce	restore s.brep explode s E blend r s 3 s_5 checkshape r vdisplay faulty_1
Tags	No tags attached.

Test case number

Date Modified	Username	Field	Change
2024-08-12 14:22	Matthias	New Issue
2024-08-12 14:22	Matthias	Assigned To	=> akaftasev
2024-08-12 14:23	Matthias	Note Added: 0116489
2024-08-12 14:23	Matthias	File Added: s.brep
2024-08-12 14:23	Matthias	File Added: image.png
2024-08-12 17:50	dpasukhi	Summary	Fillet creation produces erroneous shape => Modeling Algorithms - Fillet creation produces erroneous shape
2024-08-12 17:50	dpasukhi	Steps to Reproduce Updated
2024-08-12 17:50	dpasukhi	Target Version	7.9.0 =>
2024-10-02 14:39	Matthias	Note Added: 0116801
2024-10-02 14:39	Matthias	File Added: s2.brep
2024-10-02 14:40	Matthias	Note Edited: 0116801
2024-10-02 14:40	Matthias	Note Edited: 0116801
2024-11-13 18:56	Matthias	File Deleted: s-2.brep
2024-11-13 19:06	Matthias	File Deleted: s3.brep
2024-11-13 19:06	Matthias	File Deleted: s4.brep

Matthias 2024-08-12 14:23 developer ~0116489	s.brep (817,772 bytes) image.png (31,668 bytes)

Matthias 2024-10-02 14:39 developer ~0116801 Last edited: 2024-10-02 14:40	Another example restore s2.brep explode s2 E blend r s2 35.135 s2_5 vdisplay r s2.brep (237,967 bytes)
