| Summary | 0033794: Modeling Algorithms - BRepOffsetAPI_MakeOffset not work when offset inside | ||||
| Description | https://dev.opencascade.org/content/brepoffsetapimakeoffset-not-work-when-offset-inside
BRepBuilderAPI_MakePolygon polygonBuilder;
polygonBuilder.Add(gp_Pnt(-2784, 741, 0));
polygonBuilder.Add(gp_Pnt(-1219, 741, 0));
polygonBuilder.Add(gp_Pnt(-1219, 500, 0));
polygonBuilder.Add(gp_Pnt(-2784, 500, 0));
polygonBuilder.Add(gp_Pnt(-2784, -2708, 0));
polygonBuilder.Add(gp_Pnt(964, -2708, 0));
polygonBuilder.Add(gp_Pnt(964, 500, 0));
polygonBuilder.Add(gp_Pnt(-19, 500, 0));
polygonBuilder.Add(gp_Pnt(-19, 741, 0));
polygonBuilder.Add(gp_Pnt(964, 741, 0));
polygonBuilder.Add(gp_Pnt(964, 3599, 0));
polygonBuilder.Add(gp_Pnt(-2784, 3599, 0));
polygonBuilder.Close();
auto wire = polygonBuilder.Wire();
BRepOffsetAPI_MakeOffset offsetMaker(wire, GeomAbs_Intersection);
// outside offset is ok
offsetMaker.Perform(-100,0.01);
if (offsetMaker.IsDone())
{
m_NewShape = offsetMaker.Shape();
}
| ||||
| Steps To Reproduce | # Draw Scripts. polyline w -2784 741 0 -1219 741 0 -1219 500 0 -2784 500 0 -2784 -2708 0 964 -2708 0 964 500 0 -19 500 0 -19 741 0 964 741 0 964 3599 0 -2784 3599 0 -2784 741 0 mkoffset r w 1 -100 i 0.01 | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2024-08-14 06:17 | eryar | New Issue | |
| 2024-08-14 06:17 | eryar | Assigned To | => akaftasev |

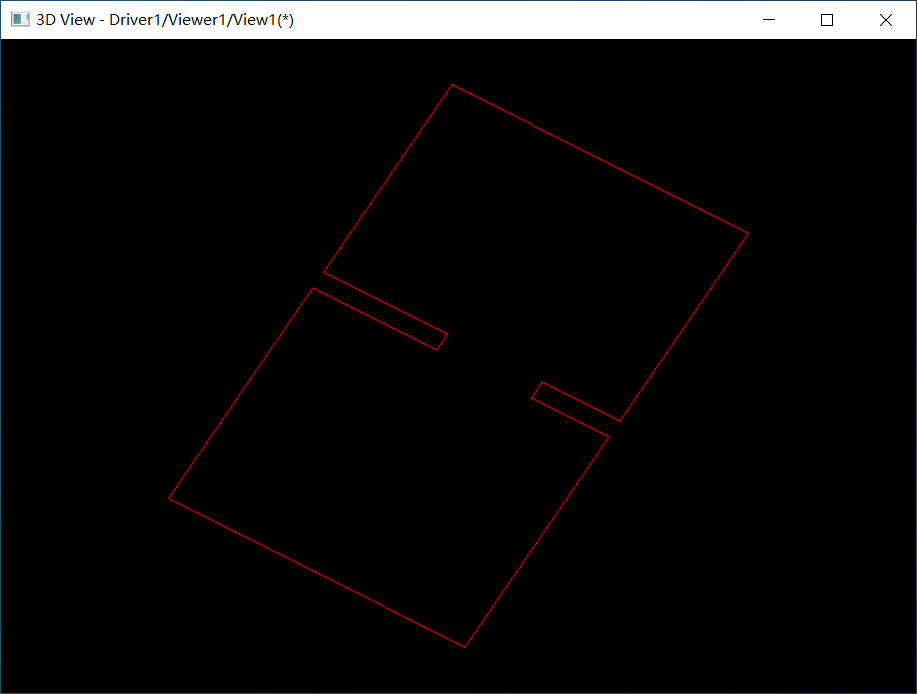

| 2024-08-14 06:17 | eryar | File Added: offset failed.PNG | |
