View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033852 | Community | OCCT:Modeling Algorithms | public | 2024-11-26 18:46 | 2025-07-09 13:56 |
| Reporter | PeterB | Assigned To | ika | ||
| Priority | normal | Severity | major | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2022 | ||
| Product Version | 7.8.0 | ||||
| Summary | 0033852: incorrect (to big) bounding box for imported STEP file | ||||

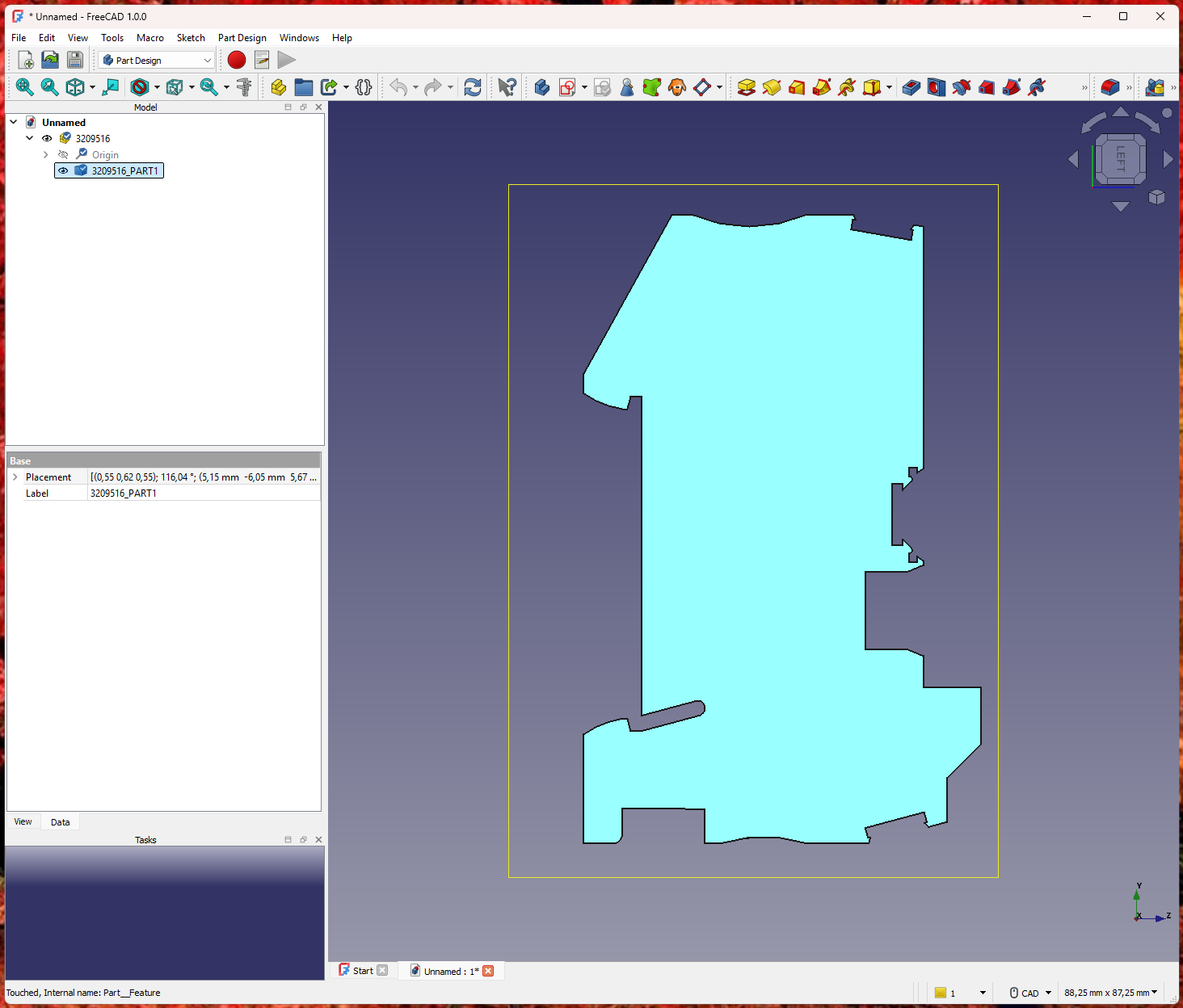

| Description | incorrect (to big) bounding box for imported STEP file => see attached screenshot FreeCAD 1.0.0 - using OpenCascade 7.8.1 | ||||
| Steps To Reproduce | 1) start FreeCAD 1.0.0 2) load attached STEP file "M_3209516_phoenix_contact_3273880w.stp" 3) display the bounding box via menu: View >> Bounding box 4) turn the model to "Left" side 5) select the model in the model tree => bounding box is too big => see attached screenshot | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
M_3209516_phoenix_contact_3273880w.png (162,594 bytes) M_3209516_phoenix_contact_3273880w.stp (456,588 bytes) |
|
|
Hi @ika still seen with FreeCAD 0.20.2 using Open CASCADE 7.6.3. We wonder whether this bug could be fixed any time soon, pls? Best, Peter B. |
|
|
Dear PeterB, that ticker is not a roadmap for 8.0.0 and at the moment is not assigned to the developer. I will analyze the issue if it can be relevant for business or active client needs - we will update the target version. Best regards, Dmitrii. |
|
|
Dear @dpasukhi just wondering whether this issue is relevant for your business or active client needs? A fix is very much appreciated from our side. Best regards, Peter B. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2024-11-26 18:46 | PeterB | New Issue | |
| 2024-11-26 18:46 | PeterB | Assigned To | => ika |
| 2024-11-27 12:06 | PeterB | Note Added: 0116881 | |
| 2024-11-27 12:06 | PeterB | File Added: M_3209516_phoenix_contact_3273880w.png | |
| 2024-11-27 12:06 | PeterB | File Added: M_3209516_phoenix_contact_3273880w.stp | |
| 2024-11-27 22:32 | dpasukhi | Category | OCCT:Data Exchange => OCCT:Modeling Algorithms |
| 2025-06-17 11:47 | PeterB | Note Added: 0117021 | |
| 2025-06-17 12:17 | dpasukhi | Note Added: 0117024 | |
| 2025-07-09 13:56 | PeterB | Note Added: 0117048 |
