View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033882 | Community | OCCT:Application Framework | public | 2025-04-07 16:58 | 2025-04-07 17:01 |
| Reporter | ventu | Assigned To | ika | ||
| Priority | normal | Severity | major | ||
| Status | new | Resolution | open | ||
| Summary | 0033882: STEP file imports with wrong parametric loops | ||||

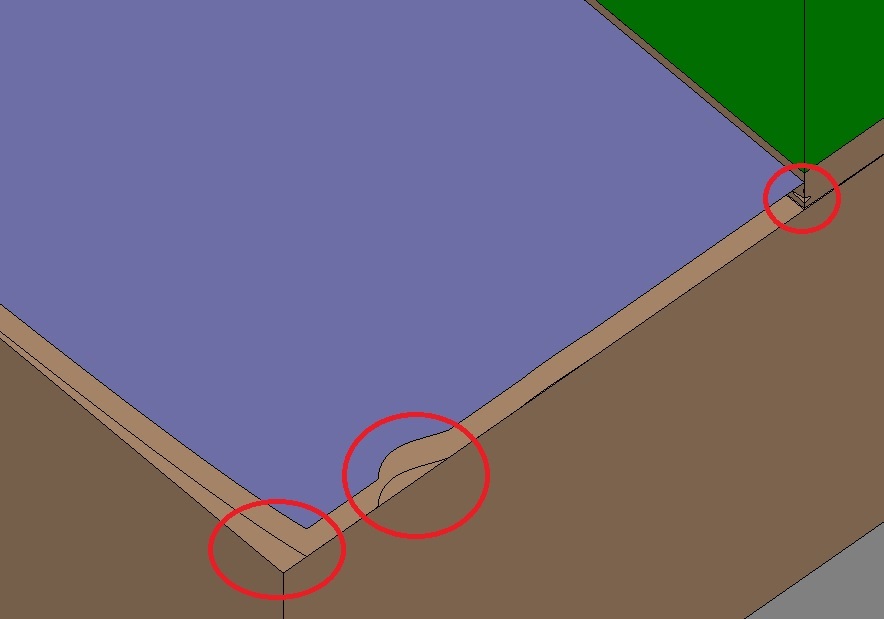

| Description | The attached file can be imported and features correct surfaces and spatial trimming loops. However parametric loops are wrong. See attached image for an example: _ the blue surface should be a rectangle, but the side on the left is eroded, making it curvy; _ additionally the side on the right gets that curious bump; _ the same happens to the underlying brown surface. | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
