View Issue Details
| ID | Project | Category | View Status | Date Submitted | Last Update |
|---|---|---|---|---|---|
| 0033901 | Community | OCCT:DRAW | public | 2025-08-20 07:06 | 2025-08-20 10:51 |
| Reporter | zhang.chaoqun | Assigned To | akaftasev | ||
| Priority | normal | Severity | major | ||
| Status | new | Resolution | open | ||
| Platform | Windows | OS | VC++ 2019 | ||
| Product Version | 7.8.0 | ||||
| Summary | 0033901: The conversion from STP file format to GLB format encountered an error (information loss). | ||||

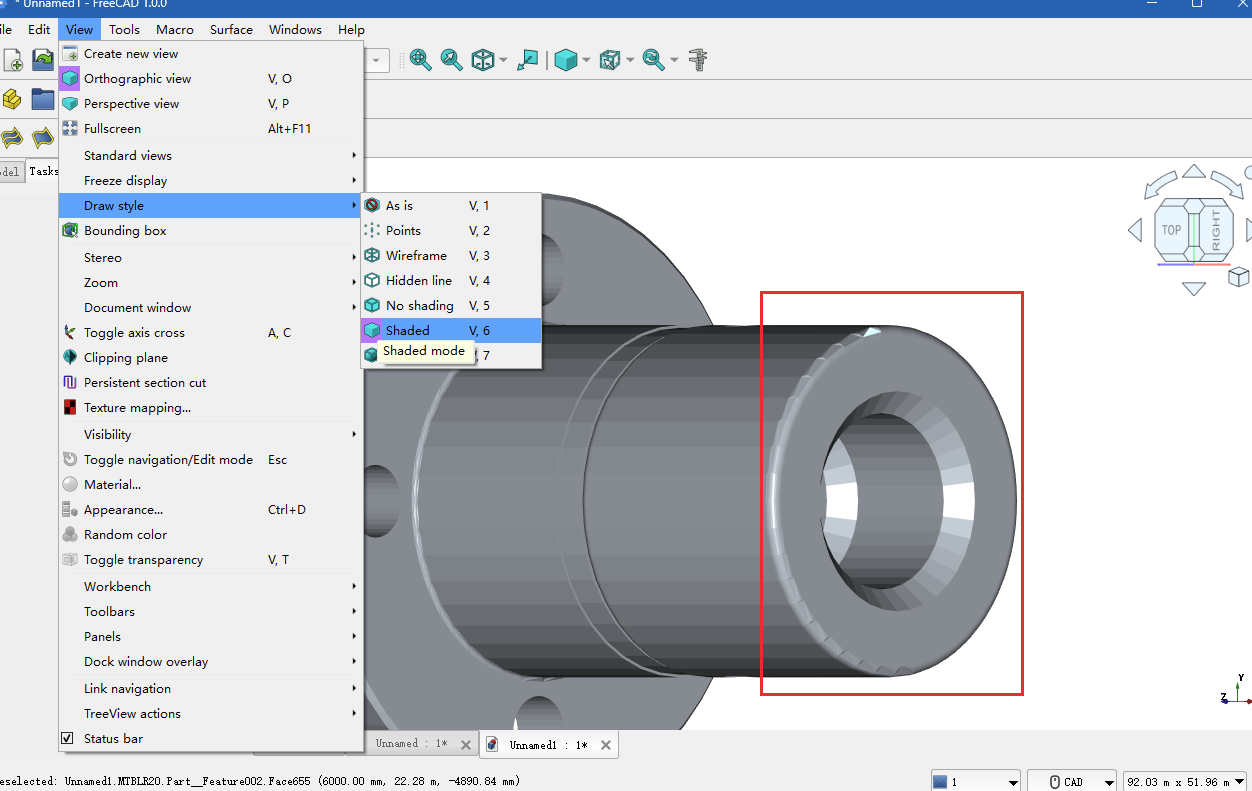

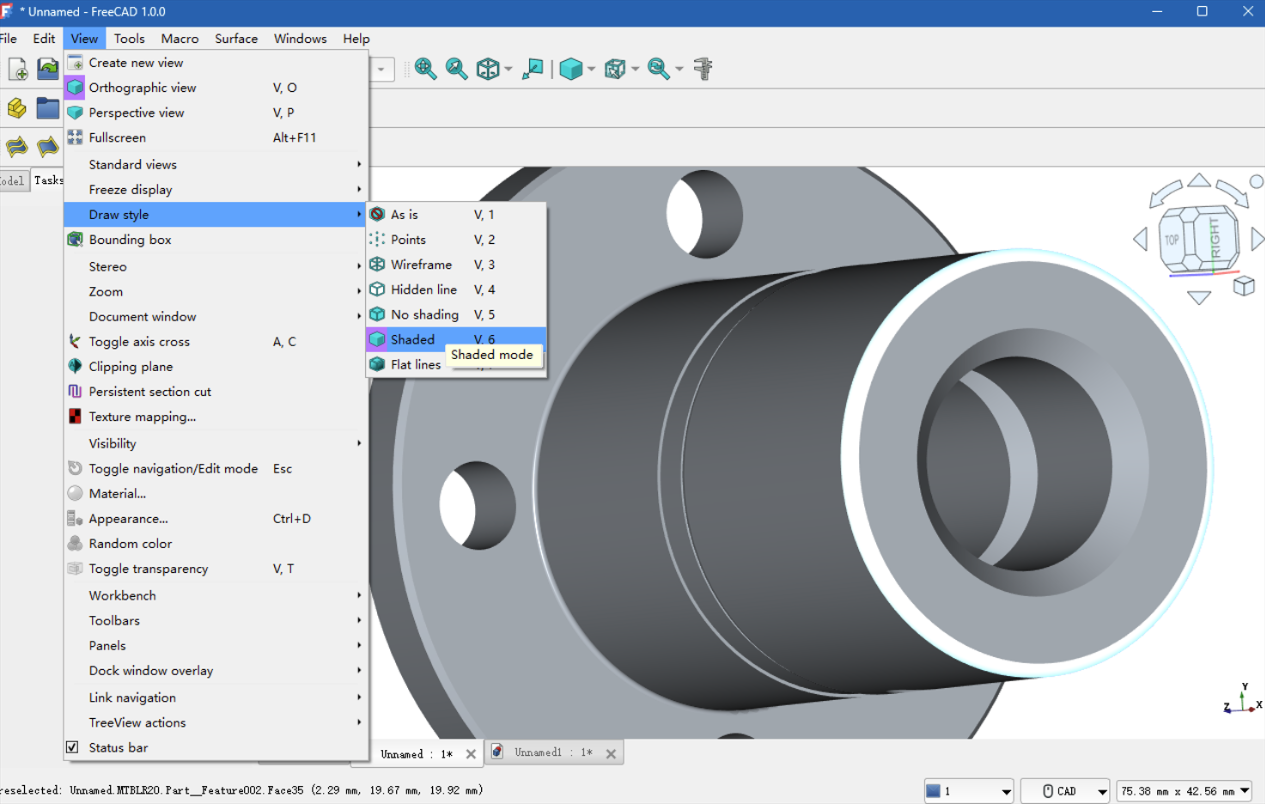

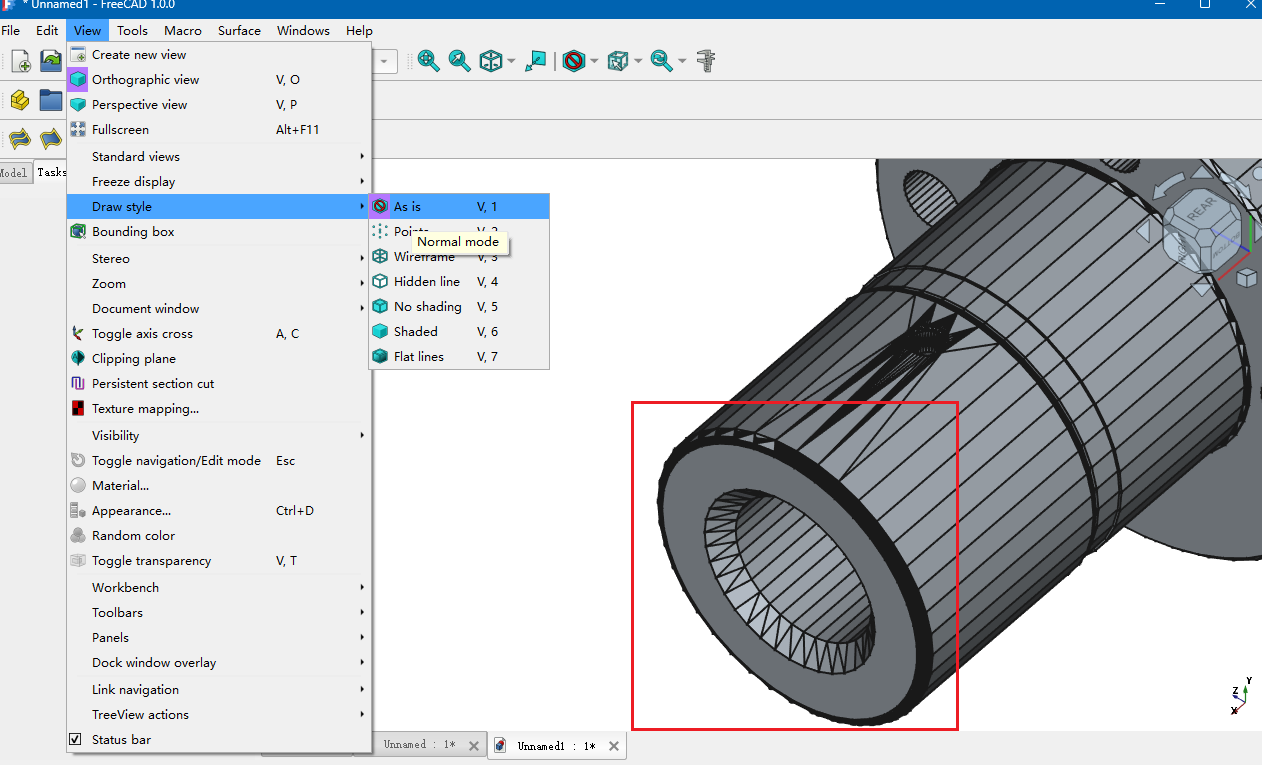

| Description | We used the OCC API to convert from STP to GLB, but an error occurred. After conversion, there was damage on the curved surfaces, and some triangular facets were missing. STP file before conversion:MTBLR20.stp → STPfile_FreeCAD_shaded.png GLB file after conversion: MTBLR20.glb → GLBfile_FreeCAD_shaded.png & GLBfile_FreeCAD_normal.png | ||||
| Steps To Reproduce | We used the step_to_glb method in the attached code for conversion, mainly utilizing TopoDS_Compound, BRep_Builder, and Prs3d_Drawer for processing. Please confirm whether this issue is due to a bug in OCC, causing information loss during conversion? | ||||
| Additional information and documentation updates | LOG("DEBUG data conversion"); TopoDS_Compound aCompound; BRep_Builder aBuildTool; aBuildTool.MakeCompound(aCompound); for (TDF_LabelSequence::Iterator aRootIter(aRootLabels); aRootIter.More(); aRootIter.Next()) { const TDF_Label& aRootLabel = aRootIter.Value(); TopoDS_Shape aRootShape; if (XCAFDoc_ShapeTool::GetShape(aRootLabel, aRootShape)) { aBuildTool.Add(aCompound, aRootShape); } } // perform meshing Handle(Prs3d_Drawer) aDrawer = new Prs3d_Drawer(); // holds visualization defaults /* 保留可视化默认值 */ BRepMesh_IncrementalMesh anAlgo; anAlgo.ChangeParameters().Deflection = 0.1; anAlgo.ChangeParameters().Angle = 20.0 * M_PI / 180.0; // 20 degrees anAlgo.ChangeParameters().InParallel = true; anAlgo.SetShape(aCompound); anAlgo.Perform(); LOG("DEBUG data conversion finished"); | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
@zhang.chaoqun Please do not add members unrelated to this issue to monitoring users. |
|
|
GLBfile_FreeCAD_normal.png (130,316 bytes) GLBfile_FreeCAD_shaded.png (123,113 bytes) MTBLR20.stp (180,377 bytes) setp_to_glb.cpp (14,585 bytes) step_to_glb.h (179 bytes) STPfile_FreeCAD_shaded.png (314,800 bytes) |
|
|
@dyama Are you referring to the assignment to akaftasev? It seems that the personnel were assigned automatically, and I didn't make any special settings. Sorry, I'm not very familiar with this process. |
|
|
Dear @dyama and @zhang.chaoqun Mantis is used for keeping history or having private tickets (in parallel with Jira). All new bug reports need to be shared in GitHub: https://github.com/Open-Cascade-SAS/OCCT/issues/154 In case if you need commercial (high-priority) support, need to contact client service by contact form in our web site (https://dev.opencascade.org/webform/contact_us) or https://occt3d.com/custom-software-development-services/ In case of community report, please share your ticket in GitHub Best regards, Dmitrii. |
| Date Modified | Username | Field | Change |
|---|---|---|---|
| 2025-08-20 07:06 | zhang.chaoqun | New Issue | |
| 2025-08-20 07:06 | zhang.chaoqun | Assigned To | => akaftasev |
| 2025-08-20 07:47 | dyama | Note Added: 0117066 | |
| 2025-08-20 09:07 | zhang.chaoqun | Note Added: 0117067 | |
| 2025-08-20 09:07 | zhang.chaoqun | File Added: GLBfile_FreeCAD_normal.png | |
| 2025-08-20 09:07 | zhang.chaoqun | File Added: GLBfile_FreeCAD_shaded.png | |
| 2025-08-20 09:07 | zhang.chaoqun | File Added: MTBLR20.glb | |
| 2025-08-20 09:07 | zhang.chaoqun | File Added: MTBLR20.stp | |
| 2025-08-20 09:07 | zhang.chaoqun | File Added: setp_to_glb.cpp | |
| 2025-08-20 09:07 | zhang.chaoqun | File Added: step_to_glb.h | |
| 2025-08-20 09:07 | zhang.chaoqun | File Added: STPfile_FreeCAD_shaded.png | |
| 2025-08-20 09:09 | zhang.chaoqun | Note Added: 0117068 | |
| 2025-08-20 10:51 | dpasukhi | Note Added: 0117069 |
