Summary0033905: BRepAlgoAPI_Common gives bad result
DescriptionHello,

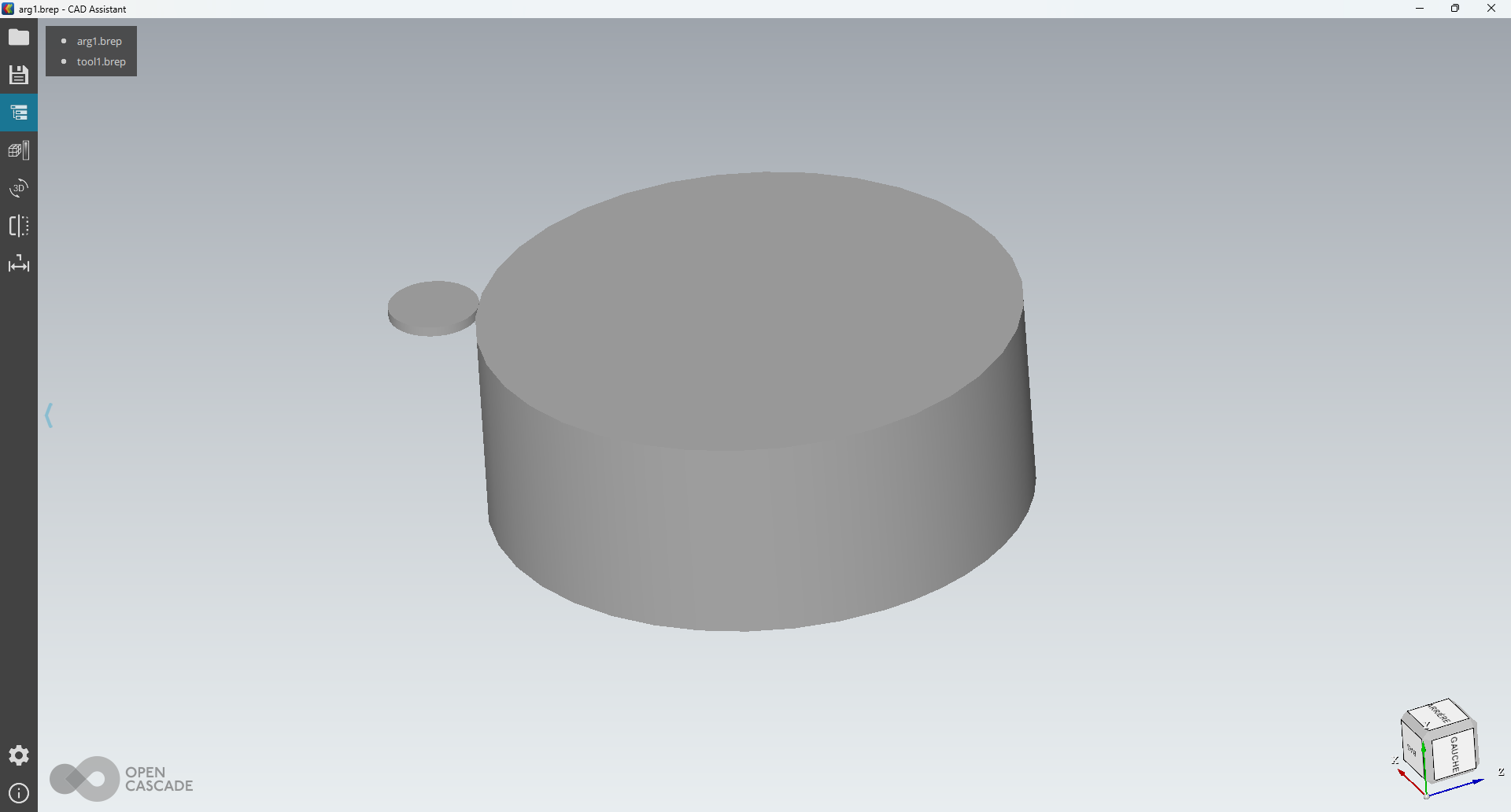

The whole arg1.brep (see attached files) is considered as common part between arg1.brep and tool1.brep but that's clearly wrong (see attached picture)
Steps To Reproduce        BRepAlgoAPI_Common lBuilder ;
        lBuilder.SetRunParallel(false) ;
        TopTools_ListOfShape lArgs ;
        TopTools_ListOfShape lTools ;
        TopoDS_Shape arg, tool ;
        BRep_Builder builder ;

        BRepTools::Read(arg, "arg1.brep", builder) ;

        lArgs.Append(arg) ;
        lBuilder.SetArguments(lArgs) ;

        BRepTools::Read(tool, "tool1.brep", builder) ;

        lTools.Append(tool) ;
        lBuilder.SetTools(lTools) ;


        pFuzzyValue = 1.0e-6 ;
        lBuilder.SetFuzzyValue(pFuzzyValue) ;

        // Proceed !
        lBuilder.Build() ;

        if (lBuilder.IsDone())
        {
            // No errors ?
            if (!lBuilder.HasErrors())
            {
                // Extract shape
                lShape = lBuilder.Shape() ;
                BRepTools::Write(lShape, "common.brep") ;
            }
        }
TagsNo tags attached.
Test case number

Attached Files

Activities

j.bourgoin

2025-08-21 17:12

reporter   ~0117074

See attached files for example
tool1.brep (4,850 bytes)
arg1.brep (4,153 bytes)
common.brep (7,317 bytes)

dpasukhi

2026-01-13 19:21

administrator   ~0117114

Merged into trad-781, repository: https://github.com/Open-Cascade-SAS/OCCT-Archive/tree/trad-781
Commit: a31ac47e3a25bef70583b1af6713948951ff5f56

Branch: https://github.com/Open-Cascade-SAS/OCCT-Archive/tree/trad-781
