| Summary | 0033906: BRepMesh_IncrementalMesh gives bad results | ||||
| Description | Hello, With the attached shape, when I give to BRepMesh_IncrementalMesh a more accurate deflection I get a bad mesh at specfic areas. | ||||

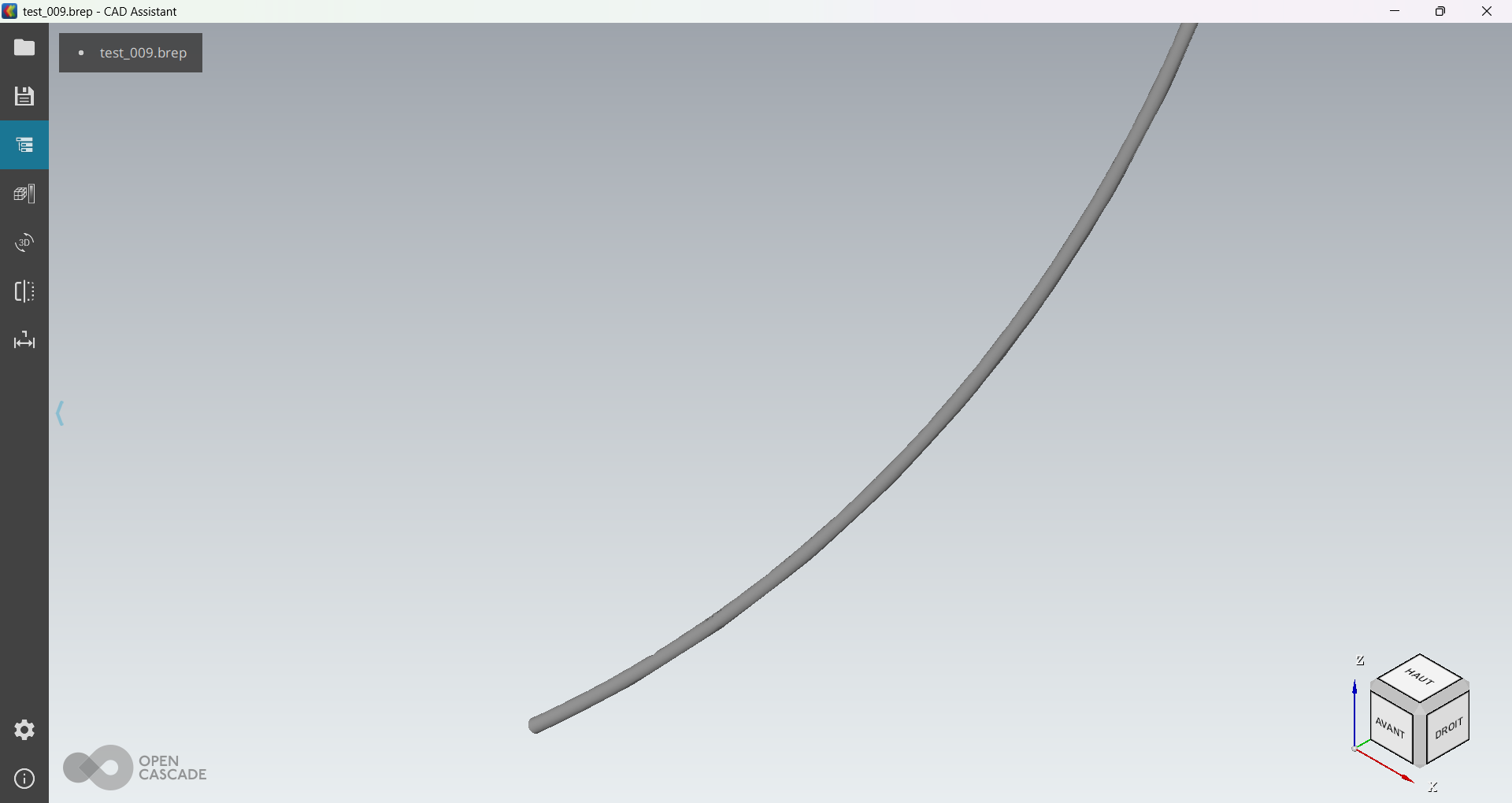

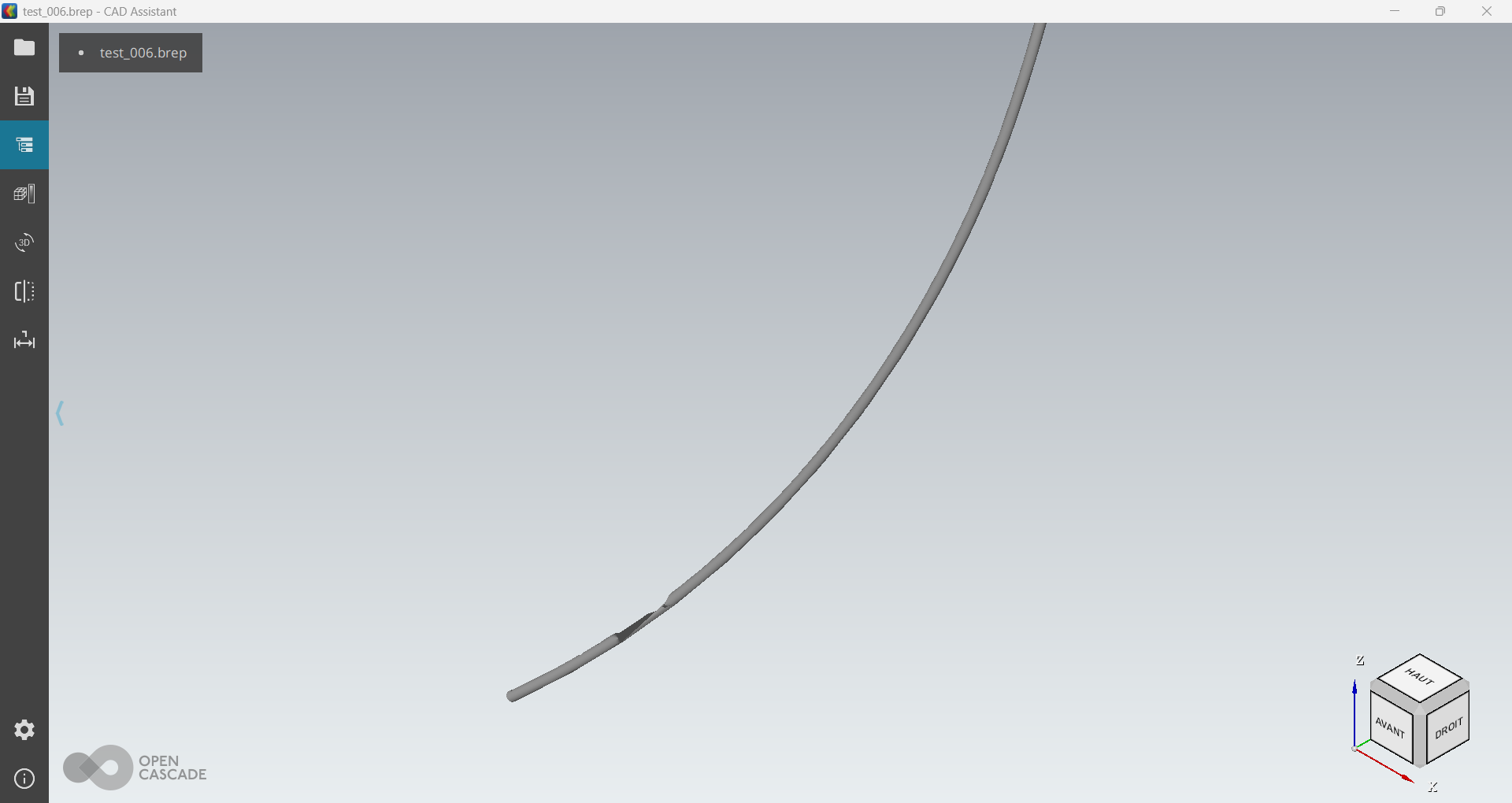

| Steps To Reproduce | BRepMesh_IncrementalMesh lIncrMesh ; lIncrMesh.SetShape(lShape) ; // Good result lIncrMesh.ChangeParameters().Deflection = 0.09 ; lIncrMesh.Perform() ; BRepTools::Write(lShape, "test_009.brep") ; // Bad result lIncrMesh.ChangeParameters().Deflection = 0.06 ; lIncrMesh.Perform() ; BRepTools::Write(lShape, "test_006.brep") ; | ||||
| Tags | No tags attached. | ||||
| Test case number | |||||
|
|
|
test_006.brep (1,211,601 bytes) test_009.brep (1,165,046 bytes) test_009.png (80,082 bytes) test_006.png (72,480 bytes) |
|
|
Hello @j.bourgoin, I don't see an initial shape, only the resulting files, could you please attach? |
|
|
Hello Ika, test_009.brep can be used as the initial shape. |
