BRepLib_MakeShape Class Reference

This is the root class for all shape constructions. It stores the result. More...

#include <BRepLib_MakeShape.hxx>

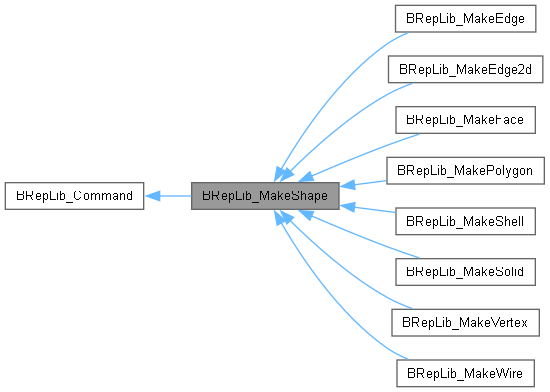

Inheritance diagram for BRepLib_MakeShape:

Public Member Functions
void	Build ()
	This is called by Shape(). It does nothing but may be redefined.
const TopoDS_Shape &	Shape ()
	operator TopoDS_Shape ()
virtual BRepLib_ShapeModification	FaceStatus (const TopoDS_Face &F) const
	returns the status of the Face after the shape creation.
virtual bool	HasDescendants (const TopoDS_Face &F) const
	Returns True if the Face generates new topology.
virtual const NCollection_List< TopoDS_Shape > &	DescendantFaces (const TopoDS_Face &F)
	returns the list of generated Faces.
virtual int	NbSurfaces () const
	returns the number of surfaces after the shape creation.
virtual const NCollection_List< TopoDS_Shape > &	NewFaces (const int I)
	Return the faces created for surface I.
virtual const NCollection_List< TopoDS_Shape > &	FacesFromEdges (const TopoDS_Edge &E)
	returns a list of the created faces from the edge <E>.
Public Member Functions inherited from BRepLib_Command
virtual	~BRepLib_Command ()
bool	IsDone () const
void	Check () const
	Raises NotDone if done is false.

Protected Member Functions
	BRepLib_MakeShape ()
Protected Member Functions inherited from BRepLib_Command
	BRepLib_Command ()
	Set done to False.
void	Done ()
	Set done to true.
void	NotDone ()
	Set done to false.

Protected Attributes
TopoDS_Shape	myShape
NCollection_List< TopoDS_Shape >	myGenFaces
NCollection_List< TopoDS_Shape >	myNewFaces
NCollection_List< TopoDS_Shape >	myEdgFaces

Detailed Description

This is the root class for all shape constructions. It stores the result.

It provides deferred methods to trace the history of sub-shapes.

Constructor & Destructor Documentation

BRepLib_MakeShape()

BRepLib_MakeShape::BRepLib_MakeShape ( )

protected

Member Function Documentation

Build()

void BRepLib_MakeShape::Build

(

)

This is called by Shape(). It does nothing but may be redefined.

DescendantFaces()

virtual const NCollection_List< TopoDS_Shape > & BRepLib_MakeShape::DescendantFaces ( const TopoDS_Face & F )

virtual

returns the list of generated Faces.

FacesFromEdges()

virtual const NCollection_List< TopoDS_Shape > & BRepLib_MakeShape::FacesFromEdges ( const TopoDS_Edge & E )

virtual

returns a list of the created faces from the edge <E>.

FaceStatus()

virtual BRepLib_ShapeModification BRepLib_MakeShape::FaceStatus ( const TopoDS_Face & F ) const

virtual

returns the status of the Face after the shape creation.

Reimplemented in BRepLib_MakeSolid.

HasDescendants()

virtual bool BRepLib_MakeShape::HasDescendants ( const TopoDS_Face & F ) const

virtual

Returns True if the Face generates new topology.

NbSurfaces()

virtual int BRepLib_MakeShape::NbSurfaces ( ) const

virtual

returns the number of surfaces after the shape creation.

NewFaces()

virtual const NCollection_List< TopoDS_Shape > & BRepLib_MakeShape::NewFaces ( const int I )

virtual

Return the faces created for surface I.

operator TopoDS_Shape()

BRepLib_MakeShape::operator TopoDS_Shape

(

)

Shape()

const TopoDS_Shape & BRepLib_MakeShape::Shape

(

)

Field Documentation

myEdgFaces

NCollection_List<TopoDS_Shape> BRepLib_MakeShape::myEdgFaces

protected

myGenFaces

NCollection_List<TopoDS_Shape> BRepLib_MakeShape::myGenFaces

protected

myNewFaces

NCollection_List<TopoDS_Shape> BRepLib_MakeShape::myNewFaces

protected

myShape

TopoDS_Shape BRepLib_MakeShape::myShape

protected

---

The documentation for this class was generated from the following file:

• BRepLib_MakeShape.hxx
