Blend_FuncInv Class Reference

Deferred class for a function used to compute a blending surface between two surfaces, using a guide line. This function is used to find a solution on a restriction of one of the surface. The vector <X> used in Value, Values and Derivatives methods has to be the vector of the parametric coordinates t,w,U,V where t is the parameter on the curve on surface, w is the parameter on the guide line, U,V are the parametric coordinates of a point on the partner surface. More...

#include <Blend_FuncInv.hxx>

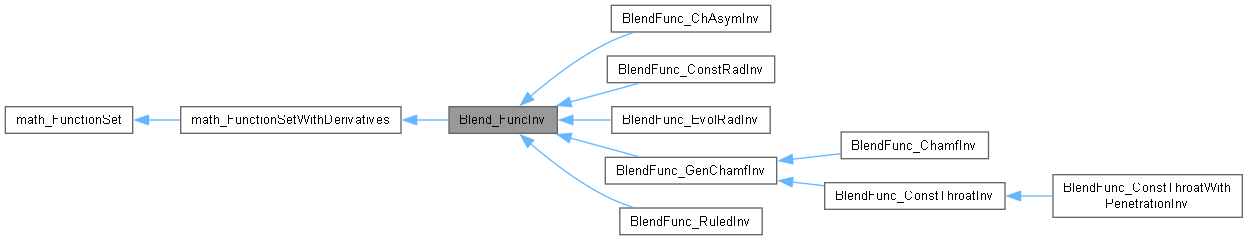

Inheritance diagram for Blend_FuncInv:

Public Member Functions
int	NbVariables () const override
	Returns 4.
int	NbEquations () const override=0
	returns the number of equations of the function.
bool	Value (const math_Vector &X, math_Vector &F) override=0
	computes the values <F> of the Functions for the variable <X>. Returns True if the computation was done successfully, False otherwise.
bool	Derivatives (const math_Vector &X, math_Matrix &D) override=0
	returns the values <D> of the derivatives for the variable <X>. Returns True if the computation was done successfully, False otherwise.
bool	Values (const math_Vector &X, math_Vector &F, math_Matrix &D) override=0
	returns the values <F> of the functions and the derivatives <D> for the variable <X>. Returns True if the computation was done successfully, False otherwise.
virtual void	Set (const bool OnFirst, const occ::handle< Adaptor2d_Curve2d > &COnSurf)=0
	Sets the CurveOnSurface on which a solution has to be found. If <OnFirst> is set to true, the curve will be on the first surface, otherwise the curve is on the second one.
virtual void	GetTolerance (math_Vector &Tolerance, const double Tol) const =0
	Returns in the vector Tolerance the parametric tolerance for each of the 4 variables; Tol is the tolerance used in 3d space.
virtual void	GetBounds (math_Vector &InfBound, math_Vector &SupBound) const =0
	Returns in the vector InfBound the lowest values allowed for each of the 4 variables. Returns in the vector SupBound the greatest values allowed for each of the 4 variables.
virtual bool	IsSolution (const math_Vector &Sol, const double Tol)=0
	Returns true if Sol is a zero of the function. Tol is the tolerance used in 3d space.
Public Member Functions inherited from math_FunctionSet
virtual int	GetStateNumber ()
	Returns the state of the function corresponding to the latestcall of any methods associated with the function. This function is called by each of the algorithms described later which define the function Integer Algorithm::StateNumber(). The algorithm has the responsibility to call this function when it has found a solution (i.e. a root or a minimum) and has to maintain the association between the solution found and this StateNumber. Byu default, this method returns 0 (which means for the algorithm: no state has been saved). It is the responsibility of the programmer to decide if he needs to save the current state of the function and to return an Integer that allows retrieval of the state.
virtual	~math_FunctionSet ()

Detailed Description

Deferred class for a function used to compute a blending surface between two surfaces, using a guide line. This function is used to find a solution on a restriction of one of the surface. The vector <X> used in Value, Values and Derivatives methods has to be the vector of the parametric coordinates t,w,U,V where t is the parameter on the curve on surface, w is the parameter on the guide line, U,V are the parametric coordinates of a point on the partner surface.

Member Function Documentation

Derivatives()

bool Blend_FuncInv::Derivatives ( const math_Vector & X, math_Matrix & D )

overridepure virtual

returns the values <D> of the derivatives for the variable <X>. Returns True if the computation was done successfully, False otherwise.

Implements math_FunctionSetWithDerivatives.

Implemented in BlendFunc_ChamfInv, BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_ConstThroatInv, BlendFunc_ConstThroatWithPenetrationInv, BlendFunc_EvolRadInv, and BlendFunc_RuledInv.

GetBounds()

virtual void Blend_FuncInv::GetBounds ( math_Vector & InfBound, math_Vector & SupBound ) const

pure virtual

Returns in the vector InfBound the lowest values allowed for each of the 4 variables. Returns in the vector SupBound the greatest values allowed for each of the 4 variables.

Implemented in BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_EvolRadInv, BlendFunc_GenChamfInv, and BlendFunc_RuledInv.

GetTolerance()

virtual void Blend_FuncInv::GetTolerance ( math_Vector & Tolerance, const double Tol ) const

pure virtual

Returns in the vector Tolerance the parametric tolerance for each of the 4 variables; Tol is the tolerance used in 3d space.

Implemented in BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_EvolRadInv, BlendFunc_GenChamfInv, and BlendFunc_RuledInv.

IsSolution()

virtual bool Blend_FuncInv::IsSolution ( const math_Vector & Sol, const double Tol )

pure virtual

Returns true if Sol is a zero of the function. Tol is the tolerance used in 3d space.

Implemented in BlendFunc_ChamfInv, BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_ConstThroatInv, BlendFunc_ConstThroatWithPenetrationInv, BlendFunc_EvolRadInv, and BlendFunc_RuledInv.

NbEquations()

int Blend_FuncInv::NbEquations ( ) const

overridepure virtual

returns the number of equations of the function.

Implements math_FunctionSetWithDerivatives.

Implemented in BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_EvolRadInv, BlendFunc_GenChamfInv, and BlendFunc_RuledInv.

NbVariables()

int Blend_FuncInv::NbVariables ( ) const

overridevirtual

Returns 4.

Implements math_FunctionSetWithDerivatives.

Set()

virtual void Blend_FuncInv::Set ( const bool OnFirst, const occ::handle< Adaptor2d_Curve2d > & COnSurf )

pure virtual

Sets the CurveOnSurface on which a solution has to be found. If <OnFirst> is set to true, the curve will be on the first surface, otherwise the curve is on the second one.

Implemented in BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_EvolRadInv, BlendFunc_GenChamfInv, BlendFunc_RuledInv, BlendFunc_ChamfInv, and BlendFunc_ConstThroatInv.

Value()

bool Blend_FuncInv::Value ( const math_Vector & X, math_Vector & F )

overridepure virtual

computes the values <F> of the Functions for the variable <X>. Returns True if the computation was done successfully, False otherwise.

Implements math_FunctionSetWithDerivatives.

Implemented in BlendFunc_ChamfInv, BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_ConstThroatInv, BlendFunc_ConstThroatWithPenetrationInv, BlendFunc_EvolRadInv, and BlendFunc_RuledInv.

Values()

bool Blend_FuncInv::Values ( const math_Vector & X, math_Vector & F, math_Matrix & D )

overridepure virtual

returns the values <F> of the functions and the derivatives <D> for the variable <X>. Returns True if the computation was done successfully, False otherwise.

Implements math_FunctionSetWithDerivatives.

Implemented in BlendFunc_ChAsymInv, BlendFunc_ConstRadInv, BlendFunc_EvolRadInv, BlendFunc_GenChamfInv, and BlendFunc_RuledInv.

---

The documentation for this class was generated from the following file:

• Blend_FuncInv.hxx
