Open CASCADE Technology Reference Manual 8.0.0
|
This class defines some Services which are specifically attached to IGES Entities : Dump. More...
#include <IGESData_SpecificModule.hxx>
Public Member Functions | |
| virtual void | OwnDump (const int CN, const occ::handle< IGESData_IGESEntity > &ent, const IGESData_IGESDumper &dumper, Standard_OStream &S, const int own) const =0 |
| Specific Dump for each type of IGES Entity : it concerns only own parameters, the general data (Directory Part, Lists) are taken into account by the IGESDumper See class IGESDumper for the rules to follow for <own> and <attached> level. | |
| virtual bool | OwnCorrect (const int CN, const occ::handle< IGESData_IGESEntity > &ent) const |
| Specific Automatic Correction on own Parameters of an Entity. It works by setting in accordance redundant data, if there are when there is no ambiguity (else, it does nothing). Remark that classic Corrections on Directory Entry (to set void data) are taken into account alsewhere. | |
 Public Member Functions inherited from Standard_Transient | |
| Standard_Transient () | |
| Empty constructor. | |
| Standard_Transient (const Standard_Transient &) | |
| Copy constructor – does nothing. | |
| Standard_Transient & | operator= (const Standard_Transient &) |
| Assignment operator, needed to avoid copying reference counter. | |
| virtual | ~Standard_Transient ()=default |
| Destructor must be virtual. | |
| virtual const opencascade::handle< Standard_Type > & | DynamicType () const |
| Returns a type descriptor about this object. | |
| bool | IsInstance (const opencascade::handle< Standard_Type > &theType) const |
| Returns a true value if this is an instance of Type. | |
| bool | IsInstance (const char *const theTypeName) const |
| Returns a true value if this is an instance of TypeName. | |
| bool | IsKind (const opencascade::handle< Standard_Type > &theType) const |
| Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. | |
| bool | IsKind (const char *const theTypeName) const |
| Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. | |
| Standard_Transient * | This () const |
| Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero. | |
| int | GetRefCount () const noexcept |
| Get the reference counter of this object. | |
| void | IncrementRefCounter () noexcept |
| Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations. | |
| int | DecrementRefCounter () noexcept |
| Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement. | |
| virtual void | Delete () const |
| Memory deallocator for transient classes. | |
Additional Inherited Members | |
| Public Types inherited from Standard_Transient | |
| typedef void | base_type |
| Returns a type descriptor about this object. | |
| Static Public Member Functions inherited from Standard_Transient | |
| static constexpr const char * | get_type_name () |
| Returns a type descriptor about this object. | |
| static const opencascade::handle< Standard_Type > & | get_type_descriptor () |
| Returns type descriptor of Standard_Transient class. | |
This class defines some Services which are specifically attached to IGES Entities : Dump.
|
virtual |
Specific Automatic Correction on own Parameters of an Entity. It works by setting in accordance redundant data, if there are when there is no ambiguity (else, it does nothing). Remark that classic Corrections on Directory Entry (to set void data) are taken into account alsewhere.
For instance, many "Associativity Entities" have a Number of Properties which must have a fixed value. Or, a ConicalArc has its Form Number which records the kind of Conic, also determined from its coefficients But, a CircularArc of which Distances (Center-Start) and (Center-End) are not equal cannot be corrected ...
Returns True if something has been corrected in <ent> By default, does nothing. If at least one of the Types processed by a sub-class of SpecificModule has a Correct procedure attached, this method can be redefined

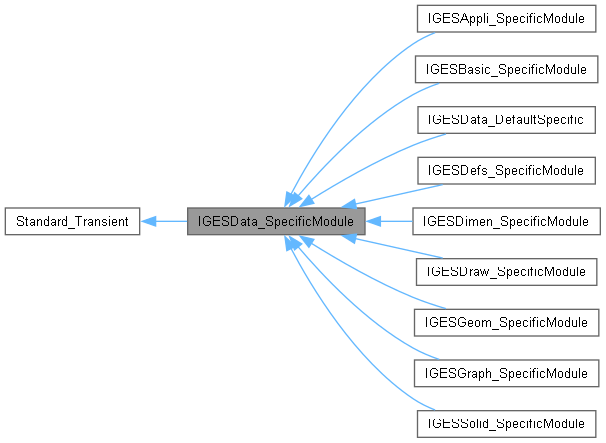

Reimplemented in IGESAppli_SpecificModule, IGESBasic_SpecificModule, IGESDimen_SpecificModule, IGESDraw_SpecificModule, IGESGeom_SpecificModule, and IGESGraph_SpecificModule.
|
pure virtual |
Specific Dump for each type of IGES Entity : it concerns only own parameters, the general data (Directory Part, Lists) are taken into account by the IGESDumper See class IGESDumper for the rules to follow for <own> and <attached> level.
Implemented in IGESAppli_SpecificModule, IGESBasic_SpecificModule, IGESData_DefaultSpecific, IGESDefs_SpecificModule, IGESDimen_SpecificModule, IGESDraw_SpecificModule, IGESGeom_SpecificModule, IGESGraph_SpecificModule, and IGESSolid_SpecificModule.
