Structure to manage image buffer. More...

#include <Image_PixMapData.hxx>

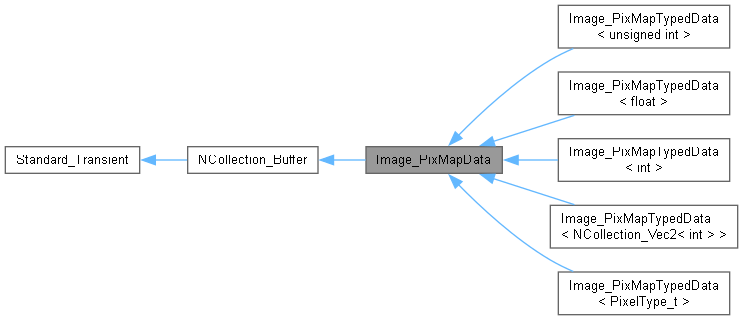

Inheritance diagram for Image_PixMapData:

[legend]

Public Member Functions
	Image_PixMapData ()
	Empty constructor.

bool	Init (const occ::handle< NCollection_BaseAllocator > &theAlloc, const size_t theSizeBPP, const size_t theSizeX, const size_t theSizeY, const size_t theSizeRowBytes, uint8_t *theDataPtr)
	Initializer.

bool	Init (const occ::handle< NCollection_BaseAllocator > &theAlloc, const size_t theSizeBPP, const NCollection_Vec3< size_t > &theSizeXYZ, const size_t theSizeRowBytes, uint8_t *theDataPtr)
	Initializer.

void	ZeroData ()
	Reset all values to zeros.

const uint8_t *	Row (const size_t theRow) const
	Return data pointer to requested row (first column).

uint8_t *	ChangeRow (const size_t theRow)
	Return data pointer to requested row (first column).

const uint8_t *	Value (const size_t theRow, const size_t theCol) const
	Return data pointer to requested position.

uint8_t *	ChangeValue (size_t theRow, size_t theCol)
	Return data pointer to requested position.

const uint8_t *	ValueXY (size_t theX, size_t theY) const
	Return data pointer to requested position.

uint8_t *	ChangeValueXY (size_t theX, size_t theY)
	Return data pointer to requested position.

const uint8_t *	Slice (size_t theSlice) const
	Return data pointer to requested 2D slice.

uint8_t *	ChangeSlice (size_t theSlice)
	Return data pointer to requested 2D slice.

const uint8_t *	SliceRow (size_t theSlice, size_t theRow) const
	Return data pointer to requested row (first column).

uint8_t *	ChangeSliceRow (size_t theSlice, size_t theRow)
	Return data pointer to requested row (first column).

const uint8_t *	ValueXYZ (size_t theX, size_t theY, size_t theZ) const
	Return data pointer to requested position.

uint8_t *	ChangeValueXYZ (size_t theX, size_t theY, size_t theZ)
	Return data pointer to requested position.

size_t	MaxRowAligmentBytes () const
	Compute the maximal row alignment for current row size.

void	SetTopDown (const bool theIsTopDown)
	Setup scanlines order in memory - top-down or bottom-up. Drawers should explicitly specify this value if current state IsTopDown() was ignored!

Public Member Functions inherited from NCollection_Buffer
	NCollection_Buffer (const occ::handle< NCollection_BaseAllocator > &theAlloc, const size_t theSize=0, uint8_t *theData=nullptr)
	Default constructor. When theData is NULL but theSize is not 0 than buffer of specified size will be allocated.

	~NCollection_Buffer () override
	Destructor.

const uint8_t *	Data () const noexcept

uint8_t *	ChangeData () noexcept

bool	IsEmpty () const noexcept

size_t	Size () const noexcept
	Return buffer length in bytes.

const occ::handle< NCollection_BaseAllocator > &	Allocator () const noexcept

void	SetAllocator (const occ::handle< NCollection_BaseAllocator > &theAlloc)
	Assign new buffer allocator with de-allocation of buffer.

bool	Allocate (const size_t theSize)
	Allocate the buffer.

void	Free ()
	De-allocate buffer.

virtual void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const
	Dumps the content of me into the stream.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Data Fields
size_t	SizeBPP
	bytes per pixel

size_t	SizeX
	width in pixels

size_t	SizeY
	height in pixels

size_t	SizeZ
	depth in pixels

size_t	SizeRowBytes
	number of bytes per line (in most cases equal to 3 * sizeX)

size_t	SizeSliceBytes
	number of bytes per 2D slice

size_t	TopToDown
	image scanlines direction in memory from Top to the Down

Protected Attributes
uint8_t *	myTopRowPtr
	pointer to the topmost row (depending on scanlines order in memory)

Protected Attributes inherited from NCollection_Buffer
uint8_t *	myData
	data pointer

size_t	mySize
	buffer length in bytes

occ::handle< NCollection_BaseAllocator >	myAllocator
	buffer allocator

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Structure to manage image buffer.

Constructor & Destructor Documentation

◆ Image_PixMapData()

Image_PixMapData::Image_PixMapData ( )

inline

Empty constructor.

Member Function Documentation

◆ ChangeRow()

uint8_t * Image_PixMapData::ChangeRow ( const size_t theRow )

inline

Return data pointer to requested row (first column).

◆ ChangeSlice()

uint8_t * Image_PixMapData::ChangeSlice ( size_t theSlice )

inline

Return data pointer to requested 2D slice.

◆ ChangeSliceRow()

uint8_t * Image_PixMapData::ChangeSliceRow	(	size_t	theSlice,
		size_t	theRow )

inline

Return data pointer to requested row (first column).

◆ ChangeValue()

uint8_t * Image_PixMapData::ChangeValue	(	size_t	theRow,
		size_t	theCol )

inline

Return data pointer to requested position.

◆ ChangeValueXY()

uint8_t * Image_PixMapData::ChangeValueXY	(	size_t	theX,
		size_t	theY )

inline

Return data pointer to requested position.

◆ ChangeValueXYZ()

uint8_t * Image_PixMapData::ChangeValueXYZ	(	size_t	theX,
		size_t	theY,
		size_t	theZ )

inline

Return data pointer to requested position.

◆ Init() [1/2]

bool Image_PixMapData::Init	(	const occ::handle< NCollection_BaseAllocator > &	theAlloc,
		const size_t	theSizeBPP,
		const NCollection_Vec3< size_t > &	theSizeXYZ,
		const size_t	theSizeRowBytes,
		uint8_t *	theDataPtr )

inline

Initializer.

◆ Init() [2/2]

bool Image_PixMapData::Init	(	const occ::handle< NCollection_BaseAllocator > &	theAlloc,
		const size_t	theSizeBPP,
		const size_t	theSizeX,
		const size_t	theSizeY,
		const size_t	theSizeRowBytes,
		uint8_t *	theDataPtr )

inline

Initializer.

◆ MaxRowAligmentBytes()

size_t Image_PixMapData::MaxRowAligmentBytes ( ) const

inline

Compute the maximal row alignment for current row size.

Returns: maximal row alignment in bytes (up to 16 bytes).

◆ Row()

const uint8_t * Image_PixMapData::Row ( const size_t theRow ) const

inline

Return data pointer to requested row (first column).

◆ SetTopDown()

void Image_PixMapData::SetTopDown ( const bool theIsTopDown )

inline

Setup scanlines order in memory - top-down or bottom-up. Drawers should explicitly specify this value if current state IsTopDown() was ignored!

Parameters

theIsTopDown top-down flag

◆ Slice()

const uint8_t * Image_PixMapData::Slice ( size_t theSlice ) const

inline

Return data pointer to requested 2D slice.

◆ SliceRow()

const uint8_t * Image_PixMapData::SliceRow	(	size_t	theSlice,
		size_t	theRow ) const

inline

Return data pointer to requested row (first column).

◆ Value()

const uint8_t * Image_PixMapData::Value	(	const size_t	theRow,
		const size_t	theCol ) const

inline

Return data pointer to requested position.

◆ ValueXY()

const uint8_t * Image_PixMapData::ValueXY	(	size_t	theX,
		size_t	theY ) const

inline

Return data pointer to requested position.

◆ ValueXYZ()

const uint8_t * Image_PixMapData::ValueXYZ	(	size_t	theX,
		size_t	theY,
		size_t	theZ ) const

inline

Return data pointer to requested position.

◆ ZeroData()

void Image_PixMapData::ZeroData ( )

inline

Reset all values to zeros.

Field Documentation

◆ myTopRowPtr

uint8_t* Image_PixMapData::myTopRowPtr

protected

pointer to the topmost row (depending on scanlines order in memory)

◆ SizeBPP

size_t Image_PixMapData::SizeBPP

bytes per pixel

◆ SizeRowBytes

size_t Image_PixMapData::SizeRowBytes

number of bytes per line (in most cases equal to 3 * sizeX)

◆ SizeSliceBytes

size_t Image_PixMapData::SizeSliceBytes

number of bytes per 2D slice

◆ SizeX

size_t Image_PixMapData::SizeX

width in pixels

◆ SizeY

size_t Image_PixMapData::SizeY

height in pixels

◆ SizeZ

size_t Image_PixMapData::SizeZ

depth in pixels

◆ TopToDown

size_t Image_PixMapData::TopToDown

image scanlines direction in memory from Top to the Down

The documentation for this class was generated from the following file:

Image_PixMapData.hxx
