ShapeUpgrade_ShapeDivide Class Reference

Divides a all faces in shell with given criteria Shell. More...

#include <ShapeUpgrade_ShapeDivide.hxx>

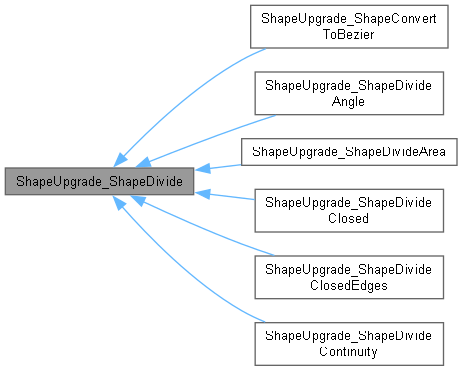

Inheritance diagram for ShapeUpgrade_ShapeDivide:

Public Member Functions
	ShapeUpgrade_ShapeDivide ()
	ShapeUpgrade_ShapeDivide (const TopoDS_Shape &S)
	Initialize by a Shape.
void	Init (const TopoDS_Shape &S)
	Initialize by a Shape.
virtual	~ShapeUpgrade_ShapeDivide ()
void	SetPrecision (const double Prec)
	Defines the spatial precision used for splitting.
void	SetMaxTolerance (const double maxtol)
	Sets maximal allowed tolerance.
void	SetMinTolerance (const double mintol)
	Sets minimal allowed tolerance.
void	SetSurfaceSegmentMode (const bool Segment)
	Purpose sets mode for trimming (segment) surface by wire UV bounds.
virtual bool	Perform (const bool newContext=true)
	Performs splitting and computes the resulting shape If newContext is True (default), the internal context will be cleared at start, else previous substitutions will be acting.
TopoDS_Shape	Result () const
	Gives the resulting Shape, or Null shape if not done.
occ::handle< ShapeBuild_ReShape >	GetContext () const
	Returns context with all the modifications made during last call(s) to Perform() recorded.
void	SetContext (const occ::handle< ShapeBuild_ReShape > &context)
	Sets context with recorded modifications to be applied during next call(s) to Perform(shape,false)
virtual void	SetMsgRegistrator (const occ::handle< ShapeExtend_BasicMsgRegistrator > &msgreg)
	Sets message registrator.
occ::handle< ShapeExtend_BasicMsgRegistrator >	MsgRegistrator () const
	Returns message registrator.
void	SendMsg (const TopoDS_Shape &shape, const Message_Msg &message, const Message_Gravity gravity=Message_Info) const
	Sends a message to be attached to the shape. Calls corresponding message of message registrator.
bool	Status (const ShapeExtend_Status status) const
	Queries the status of last call to Perform OK : no splitting was done (or no call to Perform) DONE1: some edges were split DONE2: surface was split FAIL1: some errors occurred.
void	SetSplitFaceTool (const occ::handle< ShapeUpgrade_FaceDivide > &splitFaceTool)
	Sets the tool for splitting faces.
void	SetEdgeMode (const int aEdgeMode)
	Sets mode for splitting 3d curves from edges. 0 - only curve 3d from free edges. 1 - only curve 3d from shared edges. 2 - all curve 3d.

Protected Member Functions
virtual occ::handle< ShapeUpgrade_FaceDivide >	GetSplitFaceTool () const
	Returns the tool for splitting faces.
virtual Message_Msg	GetFaceMsg () const
virtual Message_Msg	GetWireMsg () const
virtual Message_Msg	GetEdgeMsg () const
	Returns a message describing modification of a shape.

Protected Attributes
occ::handle< ShapeBuild_ReShape >	myContext
occ::handle< ShapeExtend_BasicMsgRegistrator >	myMsgReg
TopoDS_Shape	myShape
TopoDS_Shape	myResult
double	myPrecision
double	myMinTol
double	myMaxTol
bool	mySegmentMode
int	myStatus
int	myEdgeMode

Detailed Description

Divides a all faces in shell with given criteria Shell.

Constructor & Destructor Documentation

ShapeUpgrade_ShapeDivide() [1/2]

ShapeUpgrade_ShapeDivide::ShapeUpgrade_ShapeDivide

(

)

ShapeUpgrade_ShapeDivide() [2/2]

ShapeUpgrade_ShapeDivide::ShapeUpgrade_ShapeDivide

(

const TopoDS_Shape &

S

)

Initialize by a Shape.

~ShapeUpgrade_ShapeDivide()

virtual ShapeUpgrade_ShapeDivide::~ShapeUpgrade_ShapeDivide ( )

virtual

Member Function Documentation

GetContext()

occ::handle< ShapeBuild_ReShape > ShapeUpgrade_ShapeDivide::GetContext

(

)

const

Returns context with all the modifications made during last call(s) to Perform() recorded.

GetEdgeMsg()

virtual Message_Msg ShapeUpgrade_ShapeDivide::GetEdgeMsg ( ) const

protectedvirtual

Returns a message describing modification of a shape.

Reimplemented in ShapeUpgrade_ShapeConvertToBezier.

GetFaceMsg()

virtual Message_Msg ShapeUpgrade_ShapeDivide::GetFaceMsg ( ) const

protectedvirtual

Reimplemented in ShapeUpgrade_ShapeConvertToBezier.

GetSplitFaceTool()

virtual occ::handle< ShapeUpgrade_FaceDivide > ShapeUpgrade_ShapeDivide::GetSplitFaceTool ( ) const

protectedvirtual

Returns the tool for splitting faces.

Reimplemented in ShapeUpgrade_ShapeConvertToBezier, ShapeUpgrade_ShapeDivideArea, and ShapeUpgrade_ShapeDivideContinuity.

GetWireMsg()

virtual Message_Msg ShapeUpgrade_ShapeDivide::GetWireMsg ( ) const

protectedvirtual

Reimplemented in ShapeUpgrade_ShapeConvertToBezier.

Init()

void ShapeUpgrade_ShapeDivide::Init

(

const TopoDS_Shape &

S

)

Initialize by a Shape.

MsgRegistrator()

occ::handle< ShapeExtend_BasicMsgRegistrator > ShapeUpgrade_ShapeDivide::MsgRegistrator

(

)

const

Returns message registrator.

Perform()

virtual bool ShapeUpgrade_ShapeDivide::Perform ( const bool newContext = true )

virtual

Performs splitting and computes the resulting shape If newContext is True (default), the internal context will be cleared at start, else previous substitutions will be acting.

Reimplemented in ShapeUpgrade_ShapeConvertToBezier.

Result()

TopoDS_Shape ShapeUpgrade_ShapeDivide::Result

(

)

const

Gives the resulting Shape, or Null shape if not done.

SendMsg()

void ShapeUpgrade_ShapeDivide::SendMsg	(	const TopoDS_Shape &	shape,
		const Message_Msg &	message,
		const Message_Gravity	gravity = Message_Info ) const

Sends a message to be attached to the shape. Calls corresponding message of message registrator.

SetContext()

void ShapeUpgrade_ShapeDivide::SetContext

(

const occ::handle< ShapeBuild_ReShape > &

context

)

Sets context with recorded modifications to be applied during next call(s) to Perform(shape,false)

SetEdgeMode()

void ShapeUpgrade_ShapeDivide::SetEdgeMode

(

const int

aEdgeMode

)

Sets mode for splitting 3d curves from edges. 0 - only curve 3d from free edges. 1 - only curve 3d from shared edges. 2 - all curve 3d.

SetMaxTolerance()

void ShapeUpgrade_ShapeDivide::SetMaxTolerance

(

const double

maxtol

)

Sets maximal allowed tolerance.

SetMinTolerance()

void ShapeUpgrade_ShapeDivide::SetMinTolerance

(

const double

mintol

)

Sets minimal allowed tolerance.

SetMsgRegistrator()

virtual void ShapeUpgrade_ShapeDivide::SetMsgRegistrator ( const occ::handle< ShapeExtend_BasicMsgRegistrator > & msgreg )

virtual

Sets message registrator.

SetPrecision()

void ShapeUpgrade_ShapeDivide::SetPrecision

(

const double

Prec

)

Defines the spatial precision used for splitting.

SetSplitFaceTool()

void ShapeUpgrade_ShapeDivide::SetSplitFaceTool

(

const occ::handle< ShapeUpgrade_FaceDivide > &

splitFaceTool

)

Sets the tool for splitting faces.

SetSurfaceSegmentMode()

void ShapeUpgrade_ShapeDivide::SetSurfaceSegmentMode

(

const bool

Segment

)

Purpose sets mode for trimming (segment) surface by wire UV bounds.

Status()

bool ShapeUpgrade_ShapeDivide::Status

(

const ShapeExtend_Status

status

)

const

Queries the status of last call to Perform OK : no splitting was done (or no call to Perform) DONE1: some edges were split DONE2: surface was split FAIL1: some errors occurred.

Field Documentation

myContext

occ::handle<ShapeBuild_ReShape> ShapeUpgrade_ShapeDivide::myContext

protected

myEdgeMode

int ShapeUpgrade_ShapeDivide::myEdgeMode

protected

myMaxTol

double ShapeUpgrade_ShapeDivide::myMaxTol

protected

myMinTol

double ShapeUpgrade_ShapeDivide::myMinTol

protected

myMsgReg

occ::handle<ShapeExtend_BasicMsgRegistrator> ShapeUpgrade_ShapeDivide::myMsgReg

protected

myPrecision

double ShapeUpgrade_ShapeDivide::myPrecision

protected

myResult

TopoDS_Shape ShapeUpgrade_ShapeDivide::myResult

protected

mySegmentMode

bool ShapeUpgrade_ShapeDivide::mySegmentMode

protected

myShape

TopoDS_Shape ShapeUpgrade_ShapeDivide::myShape

protected

myStatus

int ShapeUpgrade_ShapeDivide::myStatus

protected

---

The documentation for this class was generated from the following file:

• ShapeUpgrade_ShapeDivide.hxx
