This select member can be of any kind, and be named But its takes more memory than some specialised ones This class allows one name for the instance. More...

#include <StepData_SelectNamed.hxx>

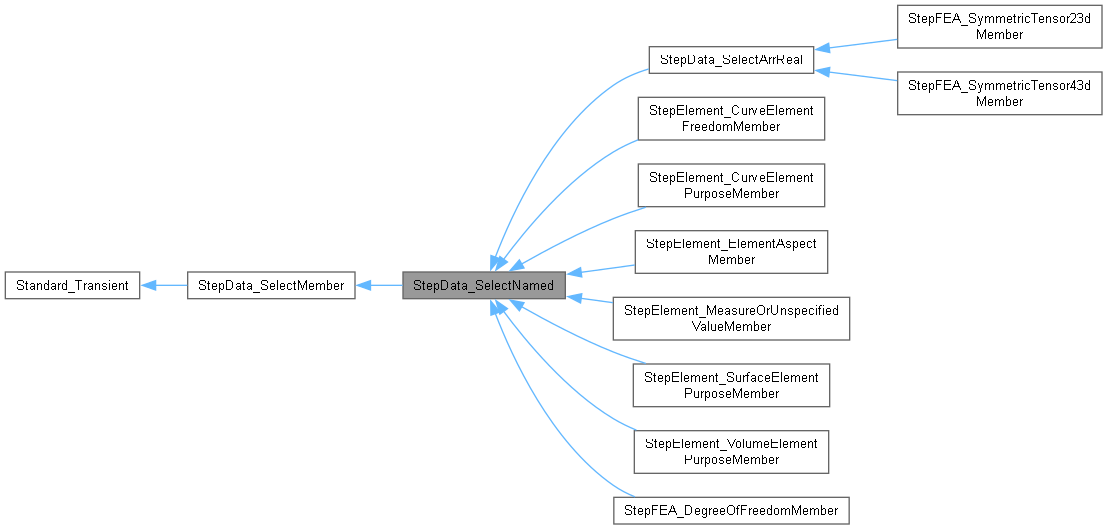

Inheritance diagram for StepData_SelectNamed:

[legend]

Public Member Functions
	StepData_SelectNamed ()

bool	HasName () const override
	Tells if a SelectMember has a name. Default is False.

const char *	Name () const override
	Returns the name of a SelectMember. Default is empty.

bool	SetName (const char *const name) override
	Sets the name of a SelectMember, returns True if done, False if no name is allowed Default does nothing and returns False.

const StepData_Field &	Field () const

StepData_Field &	CField ()

int	Kind () const override

void	SetKind (const int kind) override

int	Int () const override
	This internal method gives access to a value implemented by an Integer (to read it)

void	SetInt (const int val) override
	This internal method gives access to a value implemented by an Integer (to set it)

double	Real () const override

void	SetReal (const double val) override

const char *	String () const override

void	SetString (const char *const val) override

Public Member Functions inherited from StepData_SelectMember
	StepData_SelectMember ()

virtual bool	Matches (const char *const name) const
	Tells if the name of a SelectMember matches a given one By default, compares the strings, can be redefined (optimised)

Interface_ParamType	ParamType () const
	Returns the Kind of the SelectMember, under the form of an enum ParamType.

int	Integer () const
	Gets the value as an Integer.

void	SetInteger (const int val)

bool	Boolean () const

void	SetBoolean (const bool val)

StepData_Logical	Logical () const

void	SetLogical (const StepData_Logical val)

int	Enum () const

virtual const char *	EnumText () const

void	SetEnum (const int val, const char *const text="")

virtual void	SetEnumText (const int val, const char *const text)

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.
