Create a selectable trihedron The trihedron includes 1 origin, 3 axes and 3 labels. Default text of labels are "X", "Y", "Z". Color of origin and any axis, color of arrows and labels may be changed. Visual presentation might be shown in two, shaded and wireframe modes, wireframe by default). There are 4 modes of selection: More...

#include <AIS_Trihedron.hxx>

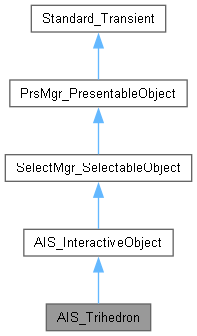

Inheritance diagram for AIS_Trihedron:

[legend]

Public Member Functions
	AIS_Trihedron (const occ::handle< Geom_Axis2Placement > &theComponent)
	Initializes a trihedron entity.

Prs3d_DatumMode	DatumDisplayMode () const
	Returns datum display mode.

void	SetDatumDisplayMode (Prs3d_DatumMode theMode)
	Sets Shading or Wireframe display mode, triangle or segment graphic group is used relatively.

const occ::handle< Geom_Axis2Placement > &	Component () const
	Returns the right-handed coordinate system set in SetComponent.

void	SetComponent (const occ::handle< Geom_Axis2Placement > &theComponent)
	Constructs the right-handed coordinate system aComponent.

bool	HasOwnSize () const
	Returns true if the trihedron object has a size other than the default size of 100 mm. along each axis.

double	Size () const
	Returns the size of trihedron object; 100.0 by DEFAULT.

void	SetSize (const double theValue)
	Sets the size of trihedron object.

void	UnsetSize ()
	Removes any non-default settings for size of this trihedron object. If the object has 1 color, the default size of the drawer is reproduced, otherwise DatumAspect becomes null.

bool	HasTextColor () const
	Returns true if trihedron has own text color.

Quantity_Color	TextColor () const
	Returns trihedron text color.

void	SetTextColor (const Quantity_Color &theColor)
	Sets color of label of trihedron axes.

void	SetTextColor (const Prs3d_DatumParts thePart, const Quantity_Color &theColor)
	Sets color of label of trihedron axis.

bool	HasArrowColor () const
	Returns true if trihedron has own arrow color.

Quantity_Color	ArrowColor () const
	Returns trihedron arrow color.

void	SetArrowColor (const Quantity_Color &theColor)
	Sets color of arrow of trihedron axes.

void	SetArrowColor (const Prs3d_DatumParts thePart, const Quantity_Color &theColor)
	Sets color of arrow of trihedron axes.

Quantity_Color	DatumPartColor (Prs3d_DatumParts thePart)
	Returns color of datum part: origin or some of trihedron axes.

void	SetDatumPartColor (const Prs3d_DatumParts thePart, const Quantity_Color &theColor)
	Sets color of datum part: origin or some of trihedron axes. If presentation is shading mode, this color is set for both sides of facing model.

void	SetOriginColor (const Quantity_Color &theColor)
	Sets color of origin. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

void	SetXAxisColor (const Quantity_Color &theColor)
	Sets color of x-axis. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

void	SetYAxisColor (const Quantity_Color &theColor)
	Sets color of y-axis. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

void	SetAxisColor (const Quantity_Color &theColor)
	Sets color of z-axis. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

bool	ToDrawArrows () const
	Returns true if arrows are to be drawn.

void	SetDrawArrows (const bool theToDraw)
	Sets whether to draw the arrows in visualization.

int	SelectionPriority (Prs3d_DatumParts thePart)
	Returns priority of selection for owner of the given type.

void	SetSelectionPriority (Prs3d_DatumParts thePart, int thePriority)
	Sets priority of selection for owner of the given type.

const TCollection_ExtendedString &	Label (Prs3d_DatumParts thePart)
	Returns text of axis. Parameter thePart should be XAxis, YAxis or ZAxis.

void	SetLabel (const Prs3d_DatumParts thePart, const TCollection_ExtendedString &theName)
	Sets text label for trihedron axis. Parameter thePart should be XAxis, YAxis or ZAxis.

void	SetColor (const Quantity_Color &theColor) override
	Sets the color theColor for this trihedron object, it changes color of axes.

bool	AcceptDisplayMode (const int theMode) const override
	Returns true if the display mode selected, aMode, is valid for trihedron datums.

int	Signature () const override
	Returns index 3, selection of the planes XOY, YOZ, XOZ.

AIS_KindOfInteractive	Type () const override
	Indicates that the type of Interactive Object is datum.

void	UnsetColor () override
	Removes the settings for color.

void	ClearSelected () override
	Method which clear all selected owners belonging to this selectable object (for fast presentation draw).

void	HilightSelected (const occ::handle< PrsMgr_PresentationManager > &thePM, const NCollection_Sequence< occ::handle< SelectMgr_EntityOwner > > &theOwners) override
	Method which draws selected owners (for fast presentation draw).

void	HilightOwnerWithColor (const occ::handle< PrsMgr_PresentationManager > &thePM, const occ::handle< Prs3d_Drawer > &theStyle, const occ::handle< SelectMgr_EntityOwner > &theOwner) override
	Method which highlights an owner belonging to this selectable object (for fast presentation draw).

Public Member Functions inherited from AIS_InteractiveObject
void	Redisplay (const bool AllModes=false)
	Updates the active presentation; if <AllModes> = true all the presentations inside are recomputed. IMPORTANT: It is preferable to call Redisplay method of corresponding AIS_InteractiveContext instance for cases when it is accessible. This method just redirects call to myCTXPtr, so this class field must be up to date for proper result.

bool	HasInteractiveContext () const
	Indicates whether the Interactive Object has a pointer to an interactive context.

AIS_InteractiveContext *	InteractiveContext () const
	Returns the context pointer to the interactive context.

virtual void	SetContext (const occ::handle< AIS_InteractiveContext > &aCtx)
	Sets the interactive context aCtx and provides a link to the default drawing tool or "Drawer" if there is none.

bool	HasOwner () const
	Returns true if the object has an owner attributed to it. The owner can be a shape for a set of sub-shapes or a sub-shape for sub-shapes which it is composed of, and takes the form of a transient.

const occ::handle< Standard_Transient > &	GetOwner () const
	Returns the owner of the Interactive Object. The owner can be a shape for a set of sub-shapes or a sub-shape for sub-shapes which it is composed of, and takes the form of a transient. There are two types of owners:

void	SetOwner (const occ::handle< Standard_Transient > &theApplicativeEntity)
	Allows you to attribute the owner theApplicativeEntity to an Interactive Object. This can be a shape for a set of sub-shapes or a sub-shape for sub-shapes which it is composed of. The owner takes the form of a transient.

void	ClearOwner ()
	Each Interactive Object has methods which allow us to attribute an Owner to it in the form of a Transient. This method removes the owner from the graphic entity.

virtual bool	ProcessDragging (const occ::handle< AIS_InteractiveContext > &theCtx, const occ::handle< V3d_View > &theView, const occ::handle< SelectMgr_EntityOwner > &theOwner, const NCollection_Vec2< int > &theDragFrom, const NCollection_Vec2< int > &theDragTo, const AIS_DragAction theAction)
	Drag object in the viewer.

occ::handle< AIS_InteractiveContext >	GetContext () const
	Returns the context pointer to the interactive context.

bool	HasPresentation () const
	Returns TRUE when this object has a presentation in the current DisplayMode()

occ::handle< Prs3d_Presentation >	Presentation () const
	Returns the current presentation of this object according to the current DisplayMode()

void	SetAspect (const occ::handle< Prs3d_BasicAspect > &anAspect)
	Sets the graphic basic aspect to the current presentation.

Public Member Functions inherited from SelectMgr_SelectableObject
	~SelectMgr_SelectableObject () override
	Clears all selections of the object.

virtual bool	AcceptShapeDecomposition () const
	Informs the graphic context that the interactive Object may be decomposed into sub-shapes for dynamic selection. The most used Interactive Object is AIS_Shape.

void	RecomputePrimitives ()
	Re-computes the sensitive primitives for all modes. IMPORTANT: Do not use this method to update selection primitives except implementing custom selection manager! This method does not take into account necessary BVH updates, but may invalidate the pointers it refers to. TO UPDATE SELECTION properly from outside classes, use method UpdateSelection.

void	RecomputePrimitives (const int theMode)
	Re-computes the sensitive primitives which correspond to the <theMode>th selection mode. IMPORTANT: Do not use this method to update selection primitives except implementing custom selection manager! selection manager! This method does not take into account necessary BVH updates, but may invalidate the pointers it refers to. TO UPDATE SELECTION properly from outside classes, use method UpdateSelection.

void	AddSelection (const occ::handle< SelectMgr_Selection > &aSelection, const int aMode)
	Adds the selection aSelection with the selection mode index aMode to this framework.

void	ClearSelections (const bool update=false)
	Empties all the selections in the SelectableObject <update> parameter defines whether all object's selections should be flagged for further update or not. This improved method can be used to recompute an object's selection (without redisplaying the object completely) when some selection mode is activated not for the first time.

const occ::handle< SelectMgr_Selection > &	Selection (const int theMode) const
	Returns the selection having specified selection mode or NULL.

bool	HasSelection (const int theMode) const
	Returns true if a selection corresponding to the selection mode theMode was computed for this object.

const NCollection_Sequence< occ::handle< SelectMgr_Selection > > &	Selections () const
	Return the sequence of selections.

void	ResetTransformation () override
	resets local transformation to identity.

void	UpdateTransformation () override
	Recomputes the location of the selection aSelection.

virtual void	UpdateTransformations (const occ::handle< SelectMgr_Selection > &aSelection)
	Updates locations in all sensitive entities from <aSelection> and in corresponding entity owners.

virtual void	ClearDynamicHighlight (const occ::handle< PrsMgr_PresentationManager > &theMgr)
	Method that needs to be implemented when the object manages selection and dynamic highlighting on its own. Clears or invalidates dynamic highlight presentation. By default it clears immediate draw of given presentation manager.

virtual bool	IsAutoHilight () const
	If returns True, the old mechanism for highlighting selected objects is used (HilightSelected Method may be empty). If returns False, the HilightSelected method will be fully responsible for highlighting selected entity owners belonging to this selectable object.

virtual void	SetAutoHilight (const bool theAutoHilight)
	Set AutoHilight property to true or false.

occ::handle< Prs3d_Presentation >	GetHilightPresentation (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr)
	Creates or returns existing presentation for highlighting detected object.

occ::handle< Prs3d_Presentation >	GetSelectPresentation (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr)
	Creates or returns existing presentation for highlighting selected object.

virtual void	ErasePresentations (bool theToRemove)
	Removes presentations returned by GetHilightPresentation() and GetSelectPresentation().

void	SetZLayer (const Graphic3d_ZLayerId theLayerId) override
	Set Z layer ID and update all presentations of the selectable object. The layers mechanism allows drawing objects in higher layers in overlay of objects in lower layers.

void	UpdateSelection (const int theMode=-1)
	Sets update status FULL to selections of the object. Must be used as the only method of UpdateSelection from outer classes to prevent BVH structures from being outdated.

void	SetAssemblyOwner (const occ::handle< SelectMgr_EntityOwner > &theOwner, const int theMode=-1)
	Sets common entity owner for assembly sensitive object entities.

Bnd_Box	BndBoxOfSelected (const occ::handle< NCollection_Shared< NCollection_IndexedMap< occ::handle< SelectMgr_EntityOwner > > > > &theOwners)
	Returns a bounding box of sensitive entities with the owners given if they are a part of activated selection.

int	GlobalSelectionMode () const
	Returns the mode for selection of object as a whole; 0 by default.

virtual occ::handle< SelectMgr_EntityOwner >	GlobalSelOwner () const
	Returns the owner of mode for selection of object as a whole.

virtual const occ::handle< SelectMgr_EntityOwner > &	GetAssemblyOwner () const
	Returns common entity owner if the object is an assembly.

void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const override
	Dumps the content of me into the stream.

Public Member Functions inherited from PrsMgr_PresentableObject
NCollection_Sequence< occ::handle< PrsMgr_Presentation > > &	Presentations ()
	Return presentations.

Graphic3d_ZLayerId	ZLayer () const
	Get ID of Z layer for main presentation.

bool	IsMutable () const
	Returns true if object has mutable nature (content or location are be changed regularly). Mutable object will be managed in different way than static onces (another optimizations).

virtual void	SetMutable (const bool theIsMutable)
	Sets if the object has mutable nature (content or location will be changed regularly). This method should be called before object displaying to take effect.

const occ::handle< Graphic3d_ViewAffinity > &	ViewAffinity () const
	Return view affinity mask.

bool	HasDisplayMode () const
	Returns true if the Interactive Object has display mode setting overriding global setting (within Interactive Context).

int	DisplayMode () const
	Returns the display mode setting of the Interactive Object. The range of supported display mode indexes should be specified within object definition and filtered by AccepDisplayMode().

void	SetDisplayMode (const int theMode)
	Sets the display mode for the interactive object. An object can have its own temporary display mode, which is different from that proposed by the interactive context.

void	UnsetDisplayMode ()
	Removes display mode settings from the interactive object.

bool	HasHilightMode () const
	Returns true if the Interactive Object is in highlight mode.

int	HilightMode () const
	Returns highlight display mode. This is obsolete method for backward compatibility - use HilightAttributes() and DynamicHilightAttributes() instead.

void	SetHilightMode (const int theMode)
	Sets highlight display mode. This is obsolete method for backward compatibility - use HilightAttributes() and DynamicHilightAttributes() instead.

void	UnsetHilightMode ()
	Unsets highlight display mode.

virtual int	DefaultDisplayMode () const
	Returns the default display mode.

bool	ToBeUpdated (bool theToIncludeHidden=false) const
	Returns TRUE if any active presentation has invalidation flag.

void	SetToUpdate (int theMode)
	Flags presentation to be updated; UpdatePresentations() will recompute these presentations.

void	SetToUpdate ()
	flags all the Presentations to be Updated.

bool	IsInfinite () const
	Returns true if the interactive object is infinite; FALSE by default. This flag affects various operations operating on bounding box of graphic presentations of this object. For instance, infinite objects are not taken in account for View FitAll. This does not necessarily means that object is actually infinite, auxiliary objects might be also marked with this flag to achieve desired behavior.

void	SetInfiniteState (const bool theFlag=true)
	Sets if object should be considered as infinite.

PrsMgr_TypeOfPresentation3d	TypeOfPresentation3d () const
	Returns information on whether the object accepts display in HLR mode or not.

void	SetTypeOfPresentation (const PrsMgr_TypeOfPresentation3d theType)
	Set type of presentation.

PrsMgr_DisplayStatus	DisplayStatus () const
	Return presentation display status; PrsMgr_DisplayStatus_None by default.

const occ::handle< Prs3d_Drawer > &	Attributes () const
	Initializes the drawing tool theDrawer.

virtual void	SetAttributes (const occ::handle< Prs3d_Drawer > &theDrawer)
	Initializes the drawing tool theDrawer.

const occ::handle< Prs3d_Drawer > &	HilightAttributes () const
	Returns the hilight attributes settings. When not NULL, overrides both Prs3d_TypeOfHighlight_LocalSelected and Prs3d_TypeOfHighlight_Selected defined within AIS_InteractiveContext::HighlightStyle().

virtual void	SetHilightAttributes (const occ::handle< Prs3d_Drawer > &theDrawer)
	Initializes the hilight drawing tool theDrawer.

const occ::handle< Prs3d_Drawer > &	DynamicHilightAttributes () const
	Returns the hilight attributes settings. When not NULL, overrides both Prs3d_TypeOfHighlight_LocalDynamic and Prs3d_TypeOfHighlight_Dynamic defined within AIS_InteractiveContext::HighlightStyle().

virtual void	SetDynamicHilightAttributes (const occ::handle< Prs3d_Drawer > &theDrawer)
	Initializes the dynamic hilight drawing tool.

virtual void	UnsetHilightAttributes ()
	Clears settings provided by the hilight drawing tool theDrawer.

void	SynchronizeAspects ()
	Synchronize presentation aspects after their modification.

const occ::handle< Graphic3d_TransformPers > &	TransformPersistence () const
	Sets up Transform Persistence defining a special Local Coordinate system where this object should be located. Note that management of Transform Persistence object is more expensive than of the normal one, because it requires its position being recomputed basing on camera position within each draw call / traverse.

virtual void	SetTransformPersistence (const occ::handle< Graphic3d_TransformPers > &theTrsfPers)
	Sets up Transform Persistence defining a special Local Coordinate system where this object should be located. Note that management of Transform Persistence object is more expensive than of the normal one, because it requires its position being recomputed basing on camera position within each draw call / traverse.

const occ::handle< TopLoc_Datum3D > &	LocalTransformationGeom () const
	Return the local transformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.

void	SetLocalTransformation (const gp_Trsf &theTrsf)
	Sets local transformation to theTransformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.

void	SetLocalTransformation (const occ::handle< TopLoc_Datum3D > &theTrsf)
	Sets local transformation to theTransformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.

bool	HasTransformation () const
	Returns true if object has a transformation that is different from the identity.

const occ::handle< TopLoc_Datum3D > &	TransformationGeom () const
	Return the transformation taking into account transformation of parent object(s). Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.

const gp_Trsf &	LocalTransformation () const
	Return the local transformation. Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.

const gp_Trsf &	Transformation () const
	Return the transformation taking into account transformation of parent object(s). Note that the local transformation of the object having Transformation Persistence is applied within Local Coordinate system defined by this Persistence.

const gp_GTrsf &	InversedTransformation () const
	Return inversed transformation.

const occ::handle< TopLoc_Datum3D > &	CombinedParentTransformation () const
	Return combined parent transformation.

virtual void	RecomputeTransformation (const occ::handle< Graphic3d_Camera > &theProjector)
	Calculates object presentation for specific camera position. Each of the views in the viewer and every modification such as rotation, for example, entails recalculation.

const occ::handle< Graphic3d_SequenceOfHClipPlane > &	ClipPlanes () const
	Set clip planes for graphical clipping for all display mode presentations. The composition of clip planes truncates the rendering space to convex volume. Please be aware that number of supported clip plane is limited. The planes which exceed the limit are ignored. Besides of this, some planes can be already set in view where the object is shown: the number of these planes should be subtracted from limit to predict the maximum possible number of object clipping planes.

virtual void	SetClipPlanes (const occ::handle< Graphic3d_SequenceOfHClipPlane > &thePlanes)
	Set clip planes for graphical clipping for all display mode presentations. The composition of clip planes truncates the rendering space to convex volume. Please be aware that number of supported clip plane is limited. The planes which exceed the limit are ignored. Besides of this, some planes can be already set in view where the object is shown: the number of these planes should be subtracted from limit to predict the maximum possible number of object clipping planes.

virtual void	AddClipPlane (const occ::handle< Graphic3d_ClipPlane > &thePlane)
	Adds clip plane for graphical clipping for all display mode presentations. The composition of clip planes truncates the rendering space to convex volume. Please be aware that number of supported clip plane is limited. The planes which exceed the limit are ignored. Besides of this, some planes can be already set in view where the object is shown: the number of these planes should be subtracted from limit to predict the maximum possible number of object clipping planes.

virtual void	RemoveClipPlane (const occ::handle< Graphic3d_ClipPlane > &thePlane)
	Removes previously added clip plane.

PrsMgr_PresentableObject *	Parent () const
	Returns children of the current object.

const NCollection_List< occ::handle< PrsMgr_PresentableObject > > &	Children () const
	Returns children of the current object.

virtual void	AddChild (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Makes theObject child of current object in scene hierarchy.

void	AddChildWithCurrentTransformation (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Makes theObject child of current object in scene hierarchy with keeping the current global transformation So the object keeps the same position/orientation in the global CS.

virtual void	RemoveChild (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Removes theObject from children of current object in scene hierarchy.

void	RemoveChildWithRestoreTransformation (const occ::handle< PrsMgr_PresentableObject > &theObject)
	Removes theObject from children of current object in scene hierarchy with keeping the current global transformation. So the object keeps the same position/orientation in the global CS.

bool	HasOwnPresentations () const
	Returns true if object should have own presentations.

virtual void	BoundingBox (Bnd_Box &theBndBox)
	Returns bounding box of object correspondingly to its current display mode. This method requires presentation to be already computed, since it relies on bounding box of presentation structures, which are supposed to be same/close amongst different display modes of this object.

void	SetIsoOnTriangulation (const bool theIsEnabled)
	Returns the current facing model which is in effect.

Aspect_TypeOfFacingModel	CurrentFacingModel () const
	Returns the current facing model which is in effect.

void	SetCurrentFacingModel (const Aspect_TypeOfFacingModel theModel=Aspect_TOFM_BOTH_SIDE)
	change the current facing model apply on polygons for SetColor(), SetTransparency(), SetMaterial() methods default facing model is Aspect_TOFM_TWO_SIDE. This mean that attributes is applying both on the front and back face.

bool	HasColor () const
	Returns true if the Interactive Object has color.

virtual void	Color (Quantity_Color &theColor) const
	Returns the color setting of the Interactive Object.

bool	HasWidth () const
	Returns true if the Interactive Object has width.

double	Width () const
	Returns the width setting of the Interactive Object.

virtual void	SetWidth (const double theWidth)
	Allows you to provide the setting aValue for width. Only the Interactive Object knows which Drawer attribute is affected by the width setting.

virtual void	UnsetWidth ()
	Reset width to default value.

bool	HasMaterial () const
	Returns true if the Interactive Object has a setting for material.

virtual Graphic3d_NameOfMaterial	Material () const
	Returns the current material setting as enumeration value.

virtual void	SetMaterial (const Graphic3d_MaterialAspect &aName)
	Sets the material aMat defining this display attribute for the interactive object. Material aspect determines shading aspect, color and transparency of visible entities.

virtual void	UnsetMaterial ()
	Removes the setting for material.

bool	IsTransparent () const
	Returns true if there is a transparency setting.

virtual double	Transparency () const
	Returns the transparency setting. This will be between 0.0 and 1.0. At 0.0 an object will be totally opaque, and at 1.0, fully transparent.

virtual void	SetTransparency (const double aValue=0.6)
	Attributes a setting aValue for transparency. The transparency value should be between 0.0 and 1.0. At 0.0 an object will be totally opaque, and at 1.0, fully transparent. Warning At a value of 1.0, there may be nothing visible.

virtual void	UnsetTransparency ()
	Removes the transparency setting. The object is opaque by default.

virtual bool	HasPolygonOffsets () const
	Returns true if <myDrawer> has non-null shading aspect.

virtual void	PolygonOffsets (int &aMode, float &aFactor, float &aUnits) const
	Retrieves current polygon offsets settings from <myDrawer>.

virtual void	SetPolygonOffsets (const int aMode, const float aFactor=1.0, const float aUnits=0.0)
	Sets up polygon offsets for this object.

virtual void	UnsetAttributes ()
	Clears settings provided by the drawing tool aDrawer.

void	ToBeUpdated (NCollection_List< int > &ListOfMode) const
	pointer to the parent object

bool	ToPropagateVisualState () const
	Get value of the flag "propagate visual state" It means that the display/erase/color visual state is propagated automatically to all children; by default, the flag is true.

void	SetPropagateVisualState (const bool theFlag)
	Change the value of the flag "propagate visual state".

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()=default
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

bool	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

bool	IsInstance (const char *const theTypeName) const
	Returns a true value if this is an instance of TypeName.

bool	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

bool	IsKind (const char *const theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

int	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object. Uses relaxed memory ordering since incrementing only requires atomicity, not synchronization with other memory operations.

int	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value. Uses release ordering for the decrement to ensure all writes to the object are visible before the count reaches zero. An acquire fence is added only when the count reaches zero, ensuring proper synchronization before deletion. This is more efficient than using acq_rel for every decrement.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
void	Compute (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr, const occ::handle< Prs3d_Presentation > &thePrs, const int theMode) override
	Compute trihedron presentation.

void	ComputeSelection (const occ::handle< SelectMgr_Selection > &theSelection, const int theMode) override
	Compute selection.

void	DumpJson (Standard_OStream &theOStream, int theDepth=-1) const override
	Dumps the content of me into the stream.

occ::handle< Select3D_SensitiveEntity >	createSensitiveEntity (const Prs3d_DatumParts thePart, const occ::handle< SelectMgr_EntityOwner > &theOwner) const
	Creates a sensitive entity for the datum part that will be used in selection owner creation.

void	computePresentation (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr, const occ::handle< Prs3d_Presentation > &thePrs)
	Computes presentation for display mode equal 1.

void	setOwnDatumAspect ()
	Returns own datum aspect of trihedron, create this aspect if it was not created yet.

const occ::handle< Graphic3d_ArrayOfPrimitives > &	arrayOfPrimitives (Prs3d_DatumParts thePart) const
	Returns primitives.

void	updatePrimitives (const occ::handle< Prs3d_DatumAspect > &theAspect, Prs3d_DatumMode theMode, const gp_Pnt &theOrigin, const gp_Dir &theXDir, const gp_Dir &theYDir, const gp_Dir &theZDir)
	Updates graphic groups for the current datum mode Parameters of datum position and orientation.

Protected Member Functions inherited from AIS_InteractiveObject
	AIS_InteractiveObject (const PrsMgr_TypeOfPresentation3d aTypeOfPresentation3d=PrsMgr_TOP_AllView)
	The TypeOfPresention3d means that the interactive object may have a presentation dependent on the view of Display.

void	SetDisplayStatus (PrsMgr_DisplayStatus theStatus)
	Set presentation display status.

Protected Member Functions inherited from SelectMgr_SelectableObject
	SelectMgr_SelectableObject (const PrsMgr_TypeOfPresentation3d aTypeOfPresentation3d=PrsMgr_TOP_AllView)
	Protected empty constructor.

void	setGlobalSelMode (const int theMode)
	Override global selection mode.

void	UpdateClipping () override
	Update clipping planes state.

virtual void	updateSelection (const int theMode)
	Sets update status FULL to selections of the object. Must be used as the only method of UpdateSelection from outer classes to prevent BVH structures from being outdated.

Protected Member Functions inherited from PrsMgr_PresentableObject
called instead void	Update (bool theToIncludeHidden=false)
	Recomputes all presentations of the object.

This method is deprecated	SetToUpdate ()+UpdatePresentations() should be called instead") 1 void Update(int theMode
	Recomputes the presentation in the given mode.

	PrsMgr_PresentableObject (const PrsMgr_TypeOfPresentation3d aTypeOfPresentation3d=PrsMgr_TOP_AllView)
	Destructor.

	~PrsMgr_PresentableObject () override
	Destructor.

virtual void	Fill (const occ::handle< PrsMgr_PresentationManager > &thePrsMgr, const occ::handle< PrsMgr_Presentation > &thePrs, const int theMode)
	Fills the given 3D view presentation for specified display mode using Compute() method. In addition, configures other properties of presentation (transformation, clipping planes).

virtual void	computeHLR (const occ::handle< Graphic3d_Camera > &theProjector, const occ::handle< TopLoc_Datum3D > &theTrsf, const occ::handle< Prs3d_Presentation > &thePrs)
	Calculates hidden line removal presentation for specific camera position. Each of the views in the viewer and every modification such as rotation, for example, entails recalculation. Default implementation throws Standard_NotImplemented exception Warning! The transformation must be applied to the object before computation.

bool	UpdatePresentations (bool theToIncludeHidden=false)
	Recomputes invalidated presentations of the object.

virtual void	SetCombinedParentTransform (const occ::handle< TopLoc_Datum3D > &theTrsf)
	Sets myCombinedParentTransform to theTransformation. Thus object receives transformation from parent node and able to derive its own.

virtual void	setLocalTransformation (const occ::handle< TopLoc_Datum3D > &theTransformation)
	Sets local transformation to theTransformation.

void	recomputeComputed () const
	Recompute computed (HLR) presentations (when view is in computed mode).

void	replaceAspects (const NCollection_DataMap< occ::handle< Graphic3d_Aspects >, occ::handle< Graphic3d_Aspects > > &theMap)
	Replace aspects of existing (computed) presentation groups, so that the new aspects can be applied without recomputing presentation. It is NOT recommended approach, because user has to fill such map and then search for each occurrence in computed groups. The recommended approach is computing presentation with necessary customized aspects, and then modify them directly followed by SynchronizeAspects() call.

Protected Attributes
occ::handle< Geom_Axis2Placement >	myComponent

Prs3d_DatumMode	myTrihDispMode

bool	myHasOwnSize

bool	myHasOwnTextColor

bool	myHasOwnArrowColor

TCollection_ExtendedString	myLabels [Prs3d_DatumParts_NB]

int	mySelectionPriority [Prs3d_DatumParts_NB]

occ::handle< Graphic3d_Group >	myPartToGroup [Prs3d_DatumParts_NB]

NCollection_List< Prs3d_DatumParts >	mySelectedParts

occ::handle< Graphic3d_AspectLine3d >	myHiddenLineAspect

occ::handle< Graphic3d_ArrayOfPrimitives >	myPrimitives [Prs3d_DatumParts_NB]

Protected Attributes inherited from AIS_InteractiveObject
AIS_InteractiveContext *	myCTXPtr
	pointer to Interactive Context, where object is currently displayed;

occ::handle< Standard_Transient >	myOwner
	application-specific owner object

Protected Attributes inherited from SelectMgr_SelectableObject
NCollection_Sequence< occ::handle< SelectMgr_Selection > >	myselections
	list of selections

occ::handle< Prs3d_Presentation >	mySelectionPrs
	optional presentation for highlighting selected object

occ::handle< Prs3d_Presentation >	myHilightPrs
	optional presentation for highlighting detected object

int	myGlobalSelMode
	global selection mode

bool	myAutoHilight
	auto-highlighting flag defining

Protected Attributes inherited from PrsMgr_PresentableObject
This method is deprecated bool	theToClearOther
	pointer to the parent object

PrsMgr_PresentableObject *	myParent
	pointer to the parent object

NCollection_Sequence< occ::handle< PrsMgr_Presentation > >	myPresentations
	list of presentations

occ::handle< Graphic3d_ViewAffinity >	myViewAffinity
	view affinity mask

occ::handle< Graphic3d_SequenceOfHClipPlane >	myClipPlanes
	sequence of object-specific clipping planes

occ::handle< Prs3d_Drawer >	myDrawer
	main presentation attributes

occ::handle< Prs3d_Drawer >	myHilightDrawer
	(optional) custom presentation attributes for highlighting selected object

occ::handle< Prs3d_Drawer >	myDynHilightDrawer
	(optional) custom presentation attributes for highlighting detected object

occ::handle< Graphic3d_TransformPers >	myTransformPersistence
	transformation persistence

occ::handle< TopLoc_Datum3D >	myLocalTransformation
	local transformation relative to parent object

occ::handle< TopLoc_Datum3D >	myTransformation
	absolute transformation of this object (combined parents + local transformations)

occ::handle< TopLoc_Datum3D >	myCombinedParentTransform
	transformation of parent object (combined for all parents)

NCollection_List< occ::handle< PrsMgr_PresentableObject > >	myChildren
	list of children

gp_GTrsf	myInvTransformation
	inversion of absolute transformation (combined parents + local transformations)

PrsMgr_TypeOfPresentation3d	myTypeOfPresentation3d
	presentation type

PrsMgr_DisplayStatus	myDisplayStatus
	presentation display status

Aspect_TypeOfFacingModel	myCurrentFacingModel
	current facing model

float	myOwnWidth
	custom width value

bool	hasOwnColor
	own color flag

bool	hasOwnMaterial
	own material flag

bool	myInfiniteState
	infinite flag

bool	myIsMutable
	mutable flag

bool	myHasOwnPresentations
	flag indicating if object should have own presentations

bool	myToPropagateVisualState
	flag indicating if visual state (display/erase/color) should be propagated to all children

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Static Protected Member Functions inherited from PrsMgr_PresentableObject
static const gp_Trsf &	getIdentityTrsf ()
	Return the identity transformation.

Detailed Description

Create a selectable trihedron The trihedron includes 1 origin, 3 axes and 3 labels. Default text of labels are "X", "Y", "Z". Color of origin and any axis, color of arrows and labels may be changed. Visual presentation might be shown in two, shaded and wireframe modes, wireframe by default). There are 4 modes of selection:

AIS_TrihedronSelectionMode_EntireObject to select trihedron, priority = 1
AIS_TrihedronSelectionMode_Origin to select its origin, priority = 5
AIS_TrihedronSelectionMode_Axes to select its axis, priority = 3
AIS_TrihedronSelectionMode_MainPlanes to select its planes, priority = 2

Warning! For the presentation of trihedron, the default unit of length is the millimetre, and the default value for the representation of the axes is 100. If you modify these dimensions, you must temporarily recover the Drawer. From inside it, you take the aspect in which the values for length are stocked. For trihedron, this is Prs3d_Drawer_LineAspect. You change the values inside this Aspect and recalculate the presentation.

Constructor & Destructor Documentation

◆ AIS_Trihedron()

AIS_Trihedron::AIS_Trihedron ( const occ::handle< Geom_Axis2Placement > & theComponent )

Initializes a trihedron entity.

Member Function Documentation

◆ AcceptDisplayMode()

bool AIS_Trihedron::AcceptDisplayMode ( const int theMode ) const

inlineoverridevirtual

Returns true if the display mode selected, aMode, is valid for trihedron datums.

Reimplemented from PrsMgr_PresentableObject.

◆ arrayOfPrimitives()

const occ::handle< Graphic3d_ArrayOfPrimitives > & AIS_Trihedron::arrayOfPrimitives ( Prs3d_DatumParts thePart ) const

inlineprotected

Returns primitives.

◆ ArrowColor()

Quantity_Color AIS_Trihedron::ArrowColor ( ) const

Returns trihedron arrow color.

◆ ClearSelected()

void AIS_Trihedron::ClearSelected ( )

overridevirtual

Method which clear all selected owners belonging to this selectable object (for fast presentation draw).

Reimplemented from SelectMgr_SelectableObject.

◆ Component()

const occ::handle< Geom_Axis2Placement > & AIS_Trihedron::Component ( ) const

inline

Returns the right-handed coordinate system set in SetComponent.

◆ Compute()

void AIS_Trihedron::Compute	(	const occ::handle< PrsMgr_PresentationManager > &	thePrsMgr,
		const occ::handle< Prs3d_Presentation > &	thePrs,
		const int	theMode )

overrideprotectedvirtual

Compute trihedron presentation.

Implements PrsMgr_PresentableObject.

◆ computePresentation()

void AIS_Trihedron::computePresentation	(	const occ::handle< PrsMgr_PresentationManager > &	thePrsMgr,
		const occ::handle< Prs3d_Presentation > &	thePrs )

protected

Computes presentation for display mode equal 1.

◆ ComputeSelection()

void AIS_Trihedron::ComputeSelection	(	const occ::handle< SelectMgr_Selection > &	theSelection,
		const int	theMode )

overrideprotectedvirtual

Compute selection.

Implements SelectMgr_SelectableObject.

◆ createSensitiveEntity()

occ::handle< Select3D_SensitiveEntity > AIS_Trihedron::createSensitiveEntity	(	const Prs3d_DatumParts	thePart,
		const occ::handle< SelectMgr_EntityOwner > &	theOwner ) const

protected

Creates a sensitive entity for the datum part that will be used in selection owner creation.

◆ DatumDisplayMode()

Prs3d_DatumMode AIS_Trihedron::DatumDisplayMode ( ) const

inline

Returns datum display mode.

◆ DatumPartColor()

Quantity_Color AIS_Trihedron::DatumPartColor ( Prs3d_DatumParts thePart )

Returns color of datum part: origin or some of trihedron axes.

◆ DumpJson()

void AIS_Trihedron::DumpJson	(	Standard_OStream &	theOStream,
		int	theDepth = -1 ) const

overrideprotectedvirtual

Dumps the content of me into the stream.

Reimplemented from AIS_InteractiveObject.

◆ HasArrowColor()

bool AIS_Trihedron::HasArrowColor ( ) const

inline

Returns true if trihedron has own arrow color.

◆ HasOwnSize()

bool AIS_Trihedron::HasOwnSize ( ) const

inline

Returns true if the trihedron object has a size other than the default size of 100 mm. along each axis.

◆ HasTextColor()

bool AIS_Trihedron::HasTextColor ( ) const

inline

Returns true if trihedron has own text color.

◆ HilightOwnerWithColor()

void AIS_Trihedron::HilightOwnerWithColor	(	const occ::handle< PrsMgr_PresentationManager > &	thePM,
		const occ::handle< Prs3d_Drawer > &	theStyle,
		const occ::handle< SelectMgr_EntityOwner > &	theOwner )

overridevirtual

Method which highlights an owner belonging to this selectable object (for fast presentation draw).

Reimplemented from SelectMgr_SelectableObject.

◆ HilightSelected()

void AIS_Trihedron::HilightSelected	(	const occ::handle< PrsMgr_PresentationManager > &	thePM,
		const NCollection_Sequence< occ::handle< SelectMgr_EntityOwner > > &	theOwners )

overridevirtual

Method which draws selected owners (for fast presentation draw).

Reimplemented from SelectMgr_SelectableObject.

◆ Label()

const TCollection_ExtendedString & AIS_Trihedron::Label ( Prs3d_DatumParts thePart )

inline

Returns text of axis. Parameter thePart should be XAxis, YAxis or ZAxis.

◆ SelectionPriority()

int AIS_Trihedron::SelectionPriority ( Prs3d_DatumParts thePart )

inline

Returns priority of selection for owner of the given type.

◆ SetArrowColor() [1/2]

void AIS_Trihedron::SetArrowColor	(	const Prs3d_DatumParts	thePart,
		const Quantity_Color &	theColor )

Sets color of arrow of trihedron axes.

◆ SetArrowColor() [2/2]

void AIS_Trihedron::SetArrowColor ( const Quantity_Color & theColor )

Sets color of arrow of trihedron axes.

◆ SetAxisColor()

void AIS_Trihedron::SetAxisColor ( const Quantity_Color & theColor )

Sets color of z-axis. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

◆ SetColor()

void AIS_Trihedron::SetColor ( const Quantity_Color & theColor )

overridevirtual

Sets the color theColor for this trihedron object, it changes color of axes.

Reimplemented from PrsMgr_PresentableObject.

◆ SetComponent()

void AIS_Trihedron::SetComponent ( const occ::handle< Geom_Axis2Placement > & theComponent )

Constructs the right-handed coordinate system aComponent.

◆ SetDatumDisplayMode()

void AIS_Trihedron::SetDatumDisplayMode ( Prs3d_DatumMode theMode )

inline

Sets Shading or Wireframe display mode, triangle or segment graphic group is used relatively.

◆ SetDatumPartColor()

void AIS_Trihedron::SetDatumPartColor	(	const Prs3d_DatumParts	thePart,
		const Quantity_Color &	theColor )

Sets color of datum part: origin or some of trihedron axes. If presentation is shading mode, this color is set for both sides of facing model.

◆ SetDrawArrows()

void AIS_Trihedron::SetDrawArrows ( const bool theToDraw )

Sets whether to draw the arrows in visualization.

◆ SetLabel()

void AIS_Trihedron::SetLabel	(	const Prs3d_DatumParts	thePart,
		const TCollection_ExtendedString &	theName )

inline

Sets text label for trihedron axis. Parameter thePart should be XAxis, YAxis or ZAxis.

◆ SetOriginColor()

void AIS_Trihedron::SetOriginColor ( const Quantity_Color & theColor )

Sets color of origin. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

◆ setOwnDatumAspect()

void AIS_Trihedron::setOwnDatumAspect ( )

protected

Returns own datum aspect of trihedron, create this aspect if it was not created yet.

◆ SetSelectionPriority()

void AIS_Trihedron::SetSelectionPriority	(	Prs3d_DatumParts	thePart,
		int	thePriority )

inline

Sets priority of selection for owner of the given type.

◆ SetSize()

void AIS_Trihedron::SetSize ( const double theValue )

Sets the size of trihedron object.

◆ SetTextColor() [1/2]

void AIS_Trihedron::SetTextColor	(	const Prs3d_DatumParts	thePart,
		const Quantity_Color &	theColor )

Sets color of label of trihedron axis.

◆ SetTextColor() [2/2]

void AIS_Trihedron::SetTextColor ( const Quantity_Color & theColor )

Sets color of label of trihedron axes.

◆ SetXAxisColor()

void AIS_Trihedron::SetXAxisColor ( const Quantity_Color & theColor )

Sets color of x-axis. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

◆ SetYAxisColor()

void AIS_Trihedron::SetYAxisColor ( const Quantity_Color & theColor )

Sets color of y-axis. Standard_DEPRECATED("This method is deprecated - SetColor() should be called instead")

◆ Signature()

int AIS_Trihedron::Signature ( ) const

inlineoverridevirtual

Returns index 3, selection of the planes XOY, YOZ, XOZ.

Reimplemented from AIS_InteractiveObject.

◆ Size()

double AIS_Trihedron::Size ( ) const

Returns the size of trihedron object; 100.0 by DEFAULT.

◆ TextColor()

Quantity_Color AIS_Trihedron::TextColor ( ) const

Returns trihedron text color.

◆ ToDrawArrows()

bool AIS_Trihedron::ToDrawArrows ( ) const

Returns true if arrows are to be drawn.

◆ Type()

AIS_KindOfInteractive AIS_Trihedron::Type ( ) const

inlineoverridevirtual

Indicates that the type of Interactive Object is datum.

Reimplemented from AIS_InteractiveObject.

◆ UnsetColor()

void AIS_Trihedron::UnsetColor ( )

overridevirtual

Removes the settings for color.

Reimplemented from PrsMgr_PresentableObject.

◆ UnsetSize()

void AIS_Trihedron::UnsetSize ( )

Removes any non-default settings for size of this trihedron object. If the object has 1 color, the default size of the drawer is reproduced, otherwise DatumAspect becomes null.

◆ updatePrimitives()

void AIS_Trihedron::updatePrimitives	(	const occ::handle< Prs3d_DatumAspect > &	theAspect,
		Prs3d_DatumMode	theMode,
		const gp_Pnt &	theOrigin,
		const gp_Dir &	theXDir,
		const gp_Dir &	theYDir,
		const gp_Dir &	theZDir )

protected

Updates graphic groups for the current datum mode Parameters of datum position and orientation.

Field Documentation

◆ myComponent

occ::handle<Geom_Axis2Placement> AIS_Trihedron::myComponent

protected

◆ myHasOwnArrowColor

bool AIS_Trihedron::myHasOwnArrowColor

protected

◆ myHasOwnSize

bool AIS_Trihedron::myHasOwnSize

protected

◆ myHasOwnTextColor

bool AIS_Trihedron::myHasOwnTextColor

protected

◆ myHiddenLineAspect

occ::handle<Graphic3d_AspectLine3d> AIS_Trihedron::myHiddenLineAspect

protected

◆ myLabels

TCollection_ExtendedString AIS_Trihedron::myLabels[Prs3d_DatumParts_NB]

protected

◆ myPartToGroup

occ::handle<Graphic3d_Group> AIS_Trihedron::myPartToGroup[Prs3d_DatumParts_NB]

protected

◆ myPrimitives

occ::handle<Graphic3d_ArrayOfPrimitives> AIS_Trihedron::myPrimitives[Prs3d_DatumParts_NB]

protected

◆ mySelectedParts

NCollection_List<Prs3d_DatumParts> AIS_Trihedron::mySelectedParts

protected

◆ mySelectionPriority

int AIS_Trihedron::mySelectionPriority[Prs3d_DatumParts_NB]

protected

◆ myTrihDispMode

Prs3d_DatumMode AIS_Trihedron::myTrihDispMode

protected

The documentation for this class was generated from the following file:

AIS_Trihedron.hxx

Public Member Functions

Protected Member Functions

Protected Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ AIS_Trihedron()

Member Function Documentation

◆ AcceptDisplayMode()

◆ arrayOfPrimitives()

◆ ArrowColor()

◆ ClearSelected()

◆ Component()

◆ Compute()

◆ computePresentation()

◆ ComputeSelection()

◆ createSensitiveEntity()

◆ DatumDisplayMode()

◆ DatumPartColor()

◆ DumpJson()

◆ HasArrowColor()

◆ HasOwnSize()

◆ HasTextColor()

◆ HilightOwnerWithColor()

◆ HilightSelected()

◆ Label()

◆ SelectionPriority()

◆ SetArrowColor() [1/2]

◆ SetArrowColor() [2/2]

◆ SetAxisColor()

◆ SetColor()

◆ SetComponent()

◆ SetDatumDisplayMode()

◆ SetDatumPartColor()

◆ SetDrawArrows()

◆ SetLabel()

◆ SetOriginColor()

◆ setOwnDatumAspect()

◆ SetSelectionPriority()

◆ SetSize()

◆ SetTextColor() [1/2]

◆ SetTextColor() [2/2]

◆ SetXAxisColor()

◆ SetYAxisColor()

◆ Signature()

◆ Size()

◆ TextColor()

◆ ToDrawArrows()

◆ Type()

◆ UnsetColor()

◆ UnsetSize()

◆ updatePrimitives()

Field Documentation

◆ myComponent

◆ myHasOwnArrowColor

◆ myHasOwnSize

◆ myHasOwnTextColor

◆ myHiddenLineAspect

◆ myLabels

◆ myPartToGroup

◆ myPrimitives

◆ mySelectedParts

◆ mySelectionPriority

◆ myTrihDispMode
