Default tool to define range of discrete face model and obtain grid points distributed within this range. More...

#include <BRepMesh_DefaultRangeSplitter.hxx>

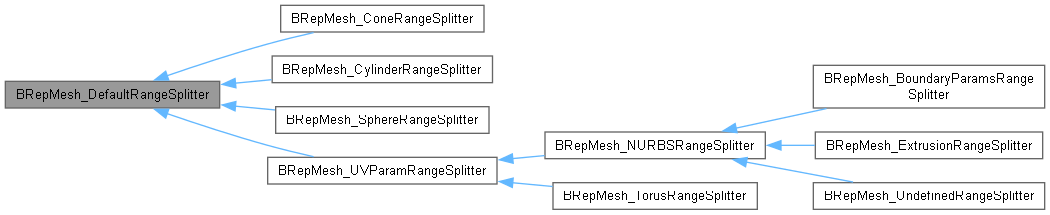

Inheritance diagram for BRepMesh_DefaultRangeSplitter:

[legend]

Public Member Functions
	BRepMesh_DefaultRangeSplitter ()
	Constructor.

virtual	~BRepMesh_DefaultRangeSplitter ()
	Destructor.

virtual void	Reset (const IMeshData::IFaceHandle &theDFace, const IMeshTools_Parameters &theParameters)
	Resets this splitter. Must be called before first use.

virtual void	AddPoint (const gp_Pnt2d &thePoint)
	Registers border point.

virtual void	AdjustRange ()
	Updates discrete range of surface according to its geometric range.

virtual Standard_Boolean	IsValid ()
	Returns True if computed range is valid.

gp_Pnt2d	Scale (const gp_Pnt2d &thePoint, const Standard_Boolean isToFaceBasis) const
	Scales the given point from real parametric space to face basis and otherwise.

virtual Handle< IMeshData::ListOfPnt2d >	GenerateSurfaceNodes (const IMeshTools_Parameters &theParameters) const
	Returns list of nodes generated using surface data and specified parameters. By default returns null ptr.

gp_Pnt	Point (const gp_Pnt2d &thePoint2d) const
	Returns point in 3d space corresponded to the given point defined in parametric space of surface.

const IMeshData::IFaceHandle &	GetDFace () const
	Returns face model.

const Handle< BRepAdaptor_Surface > &	GetSurface () const
	Returns surface.

const std::pair< Standard_Real, Standard_Real > &	GetRangeU () const
	Returns U range.

const std::pair< Standard_Real, Standard_Real > &	GetRangeV () const
	Returns V range.

const std::pair< Standard_Real, Standard_Real > &	GetDelta () const
	Returns delta.

const std::pair< Standard_Real, Standard_Real > &	GetToleranceUV () const

Protected Member Functions
virtual void	computeTolerance (const Standard_Real theLenU, const Standard_Real theLenV)
	Computes parametric tolerance taking length along U and V into account.

virtual void	computeDelta (const Standard_Real theLengthU, const Standard_Real theLengthV)
	Computes parametric delta taking length along U and V and value of tolerance into account.

Protected Attributes
IMeshData::IFaceHandle	myDFace

std::pair< Standard_Real, Standard_Real >	myRangeU

std::pair< Standard_Real, Standard_Real >	myRangeV

std::pair< Standard_Real, Standard_Real >	myDelta

std::pair< Standard_Real, Standard_Real >	myTolerance

Standard_Boolean	myIsValid

Detailed Description

Default tool to define range of discrete face model and obtain grid points distributed within this range.

Constructor & Destructor Documentation

◆ BRepMesh_DefaultRangeSplitter()

BRepMesh_DefaultRangeSplitter::BRepMesh_DefaultRangeSplitter ( )

inline

Constructor.

◆ ~BRepMesh_DefaultRangeSplitter()

virtual BRepMesh_DefaultRangeSplitter::~BRepMesh_DefaultRangeSplitter ( )

inlinevirtual

Destructor.

Member Function Documentation

◆ AddPoint()

virtual void BRepMesh_DefaultRangeSplitter::AddPoint ( const gp_Pnt2d & thePoint )

virtual

Registers border point.

Reimplemented in BRepMesh_BoundaryParamsRangeSplitter, and BRepMesh_TorusRangeSplitter.

◆ AdjustRange()

virtual void BRepMesh_DefaultRangeSplitter::AdjustRange ( )

virtual

Updates discrete range of surface according to its geometric range.

Reimplemented in BRepMesh_NURBSRangeSplitter.

◆ computeDelta()

virtual void BRepMesh_DefaultRangeSplitter::computeDelta	(	const Standard_Real	theLengthU,
		const Standard_Real	theLengthV )

protectedvirtual

Computes parametric delta taking length along U and V and value of tolerance into account.

Reimplemented in BRepMesh_CylinderRangeSplitter.

◆ computeTolerance()

virtual void BRepMesh_DefaultRangeSplitter::computeTolerance	(	const Standard_Real	theLenU,
		const Standard_Real	theLenV )

protectedvirtual

Computes parametric tolerance taking length along U and V into account.

◆ GenerateSurfaceNodes()

virtual Handle< IMeshData::ListOfPnt2d > BRepMesh_DefaultRangeSplitter::GenerateSurfaceNodes ( const IMeshTools_Parameters & theParameters ) const

virtual

Returns list of nodes generated using surface data and specified parameters. By default returns null ptr.

Reimplemented in BRepMesh_ConeRangeSplitter, BRepMesh_CylinderRangeSplitter, BRepMesh_NURBSRangeSplitter, BRepMesh_SphereRangeSplitter, and BRepMesh_TorusRangeSplitter.

◆ GetDelta()

const std::pair< Standard_Real, Standard_Real > & BRepMesh_DefaultRangeSplitter::GetDelta ( ) const

inline

Returns delta.

◆ GetDFace()

const IMeshData::IFaceHandle & BRepMesh_DefaultRangeSplitter::GetDFace ( ) const

inline

Returns face model.

◆ GetRangeU()

const std::pair< Standard_Real, Standard_Real > & BRepMesh_DefaultRangeSplitter::GetRangeU ( ) const

inline

Returns U range.

◆ GetRangeV()

const std::pair< Standard_Real, Standard_Real > & BRepMesh_DefaultRangeSplitter::GetRangeV ( ) const

inline

Returns V range.

◆ GetSurface()

const Handle< BRepAdaptor_Surface > & BRepMesh_DefaultRangeSplitter::GetSurface ( ) const

inline

Returns surface.

◆ GetToleranceUV()

const std::pair< Standard_Real, Standard_Real > & BRepMesh_DefaultRangeSplitter::GetToleranceUV ( ) const

inline

◆ IsValid()

virtual Standard_Boolean BRepMesh_DefaultRangeSplitter::IsValid ( )

virtual

Returns True if computed range is valid.

◆ Point()

gp_Pnt BRepMesh_DefaultRangeSplitter::Point ( const gp_Pnt2d & thePoint2d ) const

inline

Returns point in 3d space corresponded to the given point defined in parametric space of surface.

◆ Reset()

virtual void BRepMesh_DefaultRangeSplitter::Reset	(	const IMeshData::IFaceHandle &	theDFace,
		const IMeshTools_Parameters &	theParameters )

virtual

Resets this splitter. Must be called before first use.

Reimplemented in BRepMesh_CylinderRangeSplitter, and BRepMesh_UVParamRangeSplitter.

◆ Scale()

gp_Pnt2d BRepMesh_DefaultRangeSplitter::Scale	(	const gp_Pnt2d &	thePoint,
		const Standard_Boolean	isToFaceBasis ) const

Scales the given point from real parametric space to face basis and otherwise.

Parameters

thePoint	point to be scaled.
isToFaceBasis	if TRUE converts point to face basis, otherwise performs reverse conversion.

Returns: scaled point.

Field Documentation

◆ myDelta

std::pair<Standard_Real, Standard_Real> BRepMesh_DefaultRangeSplitter::myDelta

protected

◆ myDFace

IMeshData::IFaceHandle BRepMesh_DefaultRangeSplitter::myDFace

protected

◆ myIsValid

Standard_Boolean BRepMesh_DefaultRangeSplitter::myIsValid

protected

◆ myRangeU

std::pair<Standard_Real, Standard_Real> BRepMesh_DefaultRangeSplitter::myRangeU

protected

◆ myRangeV

std::pair<Standard_Real, Standard_Real> BRepMesh_DefaultRangeSplitter::myRangeV

protected

◆ myTolerance

std::pair<Standard_Real, Standard_Real> BRepMesh_DefaultRangeSplitter::myTolerance

protected

The documentation for this class was generated from the following file:

BRepMesh_DefaultRangeSplitter.hxx
