persistent implementation of storage a document in a binary file More...

#include <BinLDrivers_DocumentStorageDriver.hxx>

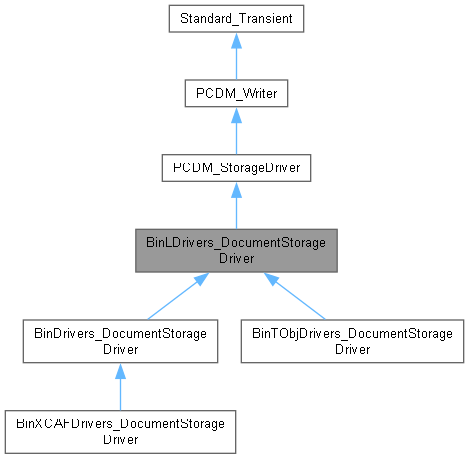

Inheritance diagram for BinLDrivers_DocumentStorageDriver:

[legend]

Public Member Functions
	BinLDrivers_DocumentStorageDriver ()
	Constructor.

virtual void	Write (const Handle< CDM_Document > &theDocument, const TCollection_ExtendedString &theFileName, const Message_ProgressRange &theRange=Message_ProgressRange()) override
	Write <theDocument> to the binary file <theFileName>

virtual void	Write (const Handle< CDM_Document > &theDocument, Standard_OStream &theOStream, const Message_ProgressRange &theRange=Message_ProgressRange()) override
	Write <theDocument> to theOStream.

virtual Handle< BinMDF_ADriverTable >	AttributeDrivers (const Handle< Message_Messenger > &theMsgDriver)

void	AddSection (const TCollection_AsciiString &theName, const Standard_Boolean isPostRead=Standard_True)
	Create a section that should be written after the OCAF data.

Standard_Boolean	IsQuickPart (const Standard_Integer theVersion) const
	Return true if document should be stored in quick mode for partial reading.

Public Member Functions inherited from PCDM_StorageDriver
virtual Handle< PCDM_Document >	Make (const Handle< CDM_Document > &aDocument)
	raises NotImplemented.

virtual void	Make (const Handle< CDM_Document > &aDocument, PCDM_SequenceOfDocument &Documents)
	By default, puts in the Sequence the document returns by the previous Make method.

void	SetFormat (const TCollection_ExtendedString &aformat)

TCollection_ExtendedString	GetFormat () const

Standard_Boolean	IsError () const

void	SetIsError (const Standard_Boolean theIsError)

PCDM_StoreStatus	GetStoreStatus () const

void	SetStoreStatus (const PCDM_StoreStatus theStoreStatus)

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Member Functions
void	WriteSubTree (const TDF_Label &theData, Standard_OStream &theOS, const Standard_Boolean &theQuickPart, const Message_ProgressRange &theRange=Message_ProgressRange())
	Write the tree under <theLabel> to the stream <theOS>

virtual void	WriteSection (const TCollection_AsciiString &, const Handle< CDM_Document > &, Standard_OStream &)
	define the procedure of writing a section to file.

virtual void	WriteShapeSection (BinLDrivers_DocumentSection &theDocSection, Standard_OStream &theOS, const TDocStd_FormatVersion theDocVer, const Message_ProgressRange &theRange=Message_ProgressRange())
	defines the procedure of writing a shape section to file

virtual void	EnableQuickPartWriting (const Handle< Message_Messenger > &, const Standard_Boolean)
	Enables writing in the quick part access mode.

virtual void	Clear ()
	clears the writing-cash data in drivers if any.

Protected Attributes
Handle< BinMDF_ADriverTable >	myDrivers

BinObjMgt_SRelocationTable	myRelocTable

Handle< Message_Messenger >	myMsgDriver

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

persistent implementation of storage a document in a binary file

Constructor & Destructor Documentation

◆ BinLDrivers_DocumentStorageDriver()

BinLDrivers_DocumentStorageDriver::BinLDrivers_DocumentStorageDriver ( )

Constructor.

Member Function Documentation

◆ AddSection()

void BinLDrivers_DocumentStorageDriver::AddSection	(	const TCollection_AsciiString &	theName,
		const Standard_Boolean	isPostRead = Standard_True )

Create a section that should be written after the OCAF data.

◆ AttributeDrivers()

virtual Handle< BinMDF_ADriverTable > BinLDrivers_DocumentStorageDriver::AttributeDrivers ( const Handle< Message_Messenger > & theMsgDriver )

virtual

Reimplemented in BinDrivers_DocumentStorageDriver, BinTObjDrivers_DocumentStorageDriver, and BinXCAFDrivers_DocumentStorageDriver.

◆ Clear()

virtual void BinLDrivers_DocumentStorageDriver::Clear ( )

protectedvirtual

clears the writing-cash data in drivers if any.

Reimplemented in BinDrivers_DocumentStorageDriver.

◆ EnableQuickPartWriting()

virtual void BinLDrivers_DocumentStorageDriver::EnableQuickPartWriting	(	const Handle< Message_Messenger > &	,
		const Standard_Boolean	)

inlineprotectedvirtual

Enables writing in the quick part access mode.

Reimplemented in BinDrivers_DocumentStorageDriver.

◆ IsQuickPart()

Standard_Boolean BinLDrivers_DocumentStorageDriver::IsQuickPart ( const Standard_Integer theVersion ) const

Return true if document should be stored in quick mode for partial reading.

◆ Write() [1/2]

virtual void BinLDrivers_DocumentStorageDriver::Write	(	const Handle< CDM_Document > &	theDocument,
		const TCollection_ExtendedString &	theFileName,
		const Message_ProgressRange &	theRange = Message_ProgressRange() )

overridevirtual

Write <theDocument> to the binary file <theFileName>

Reimplemented from PCDM_StorageDriver.

◆ Write() [2/2]

virtual void BinLDrivers_DocumentStorageDriver::Write	(	const Handle< CDM_Document > &	theDocument,
		Standard_OStream &	theOStream,
		const Message_ProgressRange &	theRange = Message_ProgressRange() )

overridevirtual

Write <theDocument> to theOStream.

Reimplemented from PCDM_StorageDriver.

◆ WriteSection()

virtual void BinLDrivers_DocumentStorageDriver::WriteSection	(	const TCollection_AsciiString &	,
		const Handle< CDM_Document > &	,
		Standard_OStream &	)

protectedvirtual

define the procedure of writing a section to file.

◆ WriteShapeSection()

virtual void BinLDrivers_DocumentStorageDriver::WriteShapeSection	(	BinLDrivers_DocumentSection &	theDocSection,
		Standard_OStream &	theOS,
		const TDocStd_FormatVersion	theDocVer,
		const Message_ProgressRange &	theRange = Message_ProgressRange() )

protectedvirtual

defines the procedure of writing a shape section to file

Reimplemented in BinDrivers_DocumentStorageDriver.

◆ WriteSubTree()

void BinLDrivers_DocumentStorageDriver::WriteSubTree	(	const TDF_Label &	theData,
		Standard_OStream &	theOS,
		const Standard_Boolean &	theQuickPart,
		const Message_ProgressRange &	theRange = Message_ProgressRange() )

protected

Write the tree under <theLabel> to the stream <theOS>

Field Documentation

◆ myDrivers

Handle< BinMDF_ADriverTable > BinLDrivers_DocumentStorageDriver::myDrivers

protected

◆ myMsgDriver

Handle< Message_Messenger > BinLDrivers_DocumentStorageDriver::myMsgDriver

protected

◆ myRelocTable

BinObjMgt_SRelocationTable BinLDrivers_DocumentStorageDriver::myRelocTable

protected

The documentation for this class was generated from the following file:

BinLDrivers_DocumentStorageDriver.hxx
