The abstract class Geometry for 3D space is the root class of all geometric objects from the Geom package. It describes the common behavior of these objects when: More...

#include <Geom_Geometry.hxx>

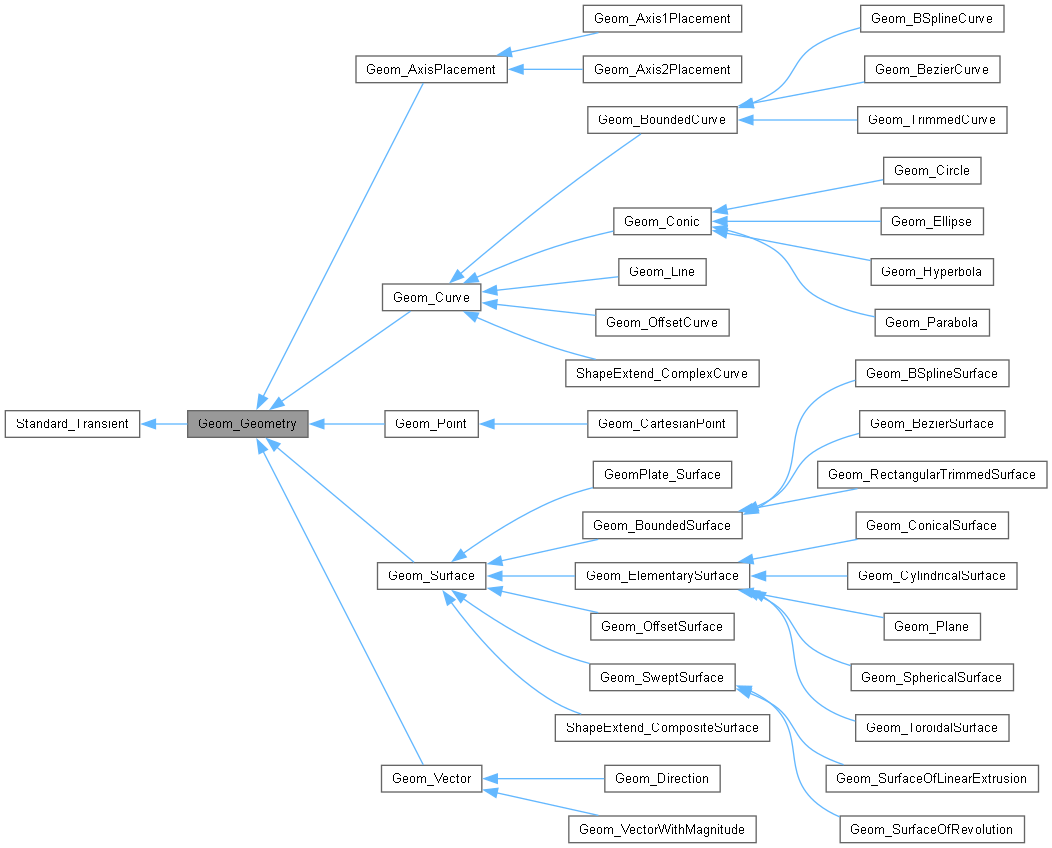

Inheritance diagram for Geom_Geometry:

[legend]

Public Member Functions
void	Mirror (const gp_Pnt &P)
	Performs the symmetrical transformation of a Geometry with respect to the point P which is the center of the symmetry.

void	Mirror (const gp_Ax1 &A1)
	Performs the symmetrical transformation of a Geometry with respect to an axis placement which is the axis of the symmetry.

void	Mirror (const gp_Ax2 &A2)
	Performs the symmetrical transformation of a Geometry with respect to a plane. The axis placement A2 locates the plane of the symmetry : (Location, XDirection, YDirection).

void	Rotate (const gp_Ax1 &A1, const Standard_Real Ang)
	Rotates a Geometry. A1 is the axis of the rotation. Ang is the angular value of the rotation in radians.

void	Scale (const gp_Pnt &P, const Standard_Real S)
	Scales a Geometry. S is the scaling value.

void	Translate (const gp_Vec &V)
	Translates a Geometry. V is the vector of the translation.

void	Translate (const gp_Pnt &P1, const gp_Pnt &P2)
	Translates a Geometry from the point P1 to the point P2.

virtual void	Transform (const gp_Trsf &T)=0
	Transformation of a geometric object. This transformation can be a translation, a rotation, a symmetry, a scaling or a complex transformation obtained by combination of the previous elementaries transformations. (see class Transformation of the package Geom).

Handle< Geom_Geometry >	Mirrored (const gp_Pnt &P) const

Handle< Geom_Geometry >	Mirrored (const gp_Ax1 &A1) const

Handle< Geom_Geometry >	Mirrored (const gp_Ax2 &A2) const

Handle< Geom_Geometry >	Rotated (const gp_Ax1 &A1, const Standard_Real Ang) const

Handle< Geom_Geometry >	Scaled (const gp_Pnt &P, const Standard_Real S) const

Handle< Geom_Geometry >	Transformed (const gp_Trsf &T) const

Handle< Geom_Geometry >	Translated (const gp_Vec &V) const

Handle< Geom_Geometry >	Translated (const gp_Pnt &P1, const gp_Pnt &P2) const

virtual Handle< Geom_Geometry >	Copy () const =0
	Creates a new object which is a copy of this geometric object.

virtual void	DumpJson (Standard_OStream &theOStream, Standard_Integer theDepth=-1) const
	Dumps the content of me into the stream.

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

The abstract class Geometry for 3D space is the root class of all geometric objects from the Geom package. It describes the common behavior of these objects when:

applying geometric transformations to objects, and
constructing objects by geometric transformation (including copying). Warning Only transformations which do not modify the nature of the geometry can be applied to Geom objects: this is the case with translations, rotations, symmetries and scales; this is also the case with gp_Trsf composite transformations which are used to define the geometric transformations applied using the Transform or Transformed functions. Note: Geometry defines the "prototype" of the abstract method Transform which is defined for each concrete type of derived object. All other transformations are implemented using the Transform method.

Member Function Documentation

◆ Copy()

virtual Handle< Geom_Geometry > Geom_Geometry::Copy ( ) const

pure virtual

Creates a new object which is a copy of this geometric object.

Implemented in Geom_Axis1Placement, Geom_Axis2Placement, Geom_BezierCurve, Geom_BezierSurface, Geom_BSplineCurve, Geom_BSplineSurface, Geom_CartesianPoint, Geom_Circle, Geom_ConicalSurface, Geom_CylindricalSurface, Geom_Direction, Geom_Ellipse, Geom_Hyperbola, Geom_Line, Geom_OffsetCurve, Geom_OffsetSurface, Geom_Parabola, Geom_Plane, Geom_RectangularTrimmedSurface, Geom_SphericalSurface, Geom_SurfaceOfLinearExtrusion, Geom_SurfaceOfRevolution, Geom_ToroidalSurface, Geom_TrimmedCurve, Geom_VectorWithMagnitude, GeomPlate_Surface, and ShapeExtend_CompositeSurface.

◆ DumpJson()

virtual void Geom_Geometry::DumpJson	(	Standard_OStream &	theOStream,
		Standard_Integer	theDepth = -1 ) const

virtual

Dumps the content of me into the stream.

Reimplemented in Geom_BezierCurve, Geom_BezierSurface, Geom_BoundedCurve, Geom_BSplineCurve, Geom_BSplineSurface, Geom_Circle, Geom_Conic, Geom_ConicalSurface, Geom_Curve, Geom_CylindricalSurface, Geom_ElementarySurface, Geom_Ellipse, Geom_Hyperbola, Geom_Line, Geom_OffsetCurve, Geom_OffsetSurface, Geom_Parabola, Geom_Plane, Geom_RectangularTrimmedSurface, Geom_SphericalSurface, Geom_Surface, Geom_SurfaceOfLinearExtrusion, Geom_SurfaceOfRevolution, Geom_SweptSurface, Geom_ToroidalSurface, and Geom_TrimmedCurve.

◆ Mirror() [1/3]

void Geom_Geometry::Mirror ( const gp_Ax1 & A1 )

Performs the symmetrical transformation of a Geometry with respect to an axis placement which is the axis of the symmetry.

◆ Mirror() [2/3]

void Geom_Geometry::Mirror ( const gp_Ax2 & A2 )

Performs the symmetrical transformation of a Geometry with respect to a plane. The axis placement A2 locates the plane of the symmetry : (Location, XDirection, YDirection).

◆ Mirror() [3/3]

void Geom_Geometry::Mirror ( const gp_Pnt & P )

Performs the symmetrical transformation of a Geometry with respect to the point P which is the center of the symmetry.

◆ Mirrored() [1/3]

Handle< Geom_Geometry > Geom_Geometry::Mirrored ( const gp_Ax1 & A1 ) const

◆ Mirrored() [2/3]

Handle< Geom_Geometry > Geom_Geometry::Mirrored ( const gp_Ax2 & A2 ) const

◆ Mirrored() [3/3]

Handle< Geom_Geometry > Geom_Geometry::Mirrored ( const gp_Pnt & P ) const

◆ Rotate()

void Geom_Geometry::Rotate	(	const gp_Ax1 &	A1,
		const Standard_Real	Ang )

Rotates a Geometry. A1 is the axis of the rotation. Ang is the angular value of the rotation in radians.

◆ Rotated()

Handle< Geom_Geometry > Geom_Geometry::Rotated	(	const gp_Ax1 &	A1,
		const Standard_Real	Ang ) const

◆ Scale()

void Geom_Geometry::Scale	(	const gp_Pnt &	P,
		const Standard_Real	S )

Scales a Geometry. S is the scaling value.

◆ Scaled()

Handle< Geom_Geometry > Geom_Geometry::Scaled	(	const gp_Pnt &	P,
		const Standard_Real	S ) const

◆ Transform()

virtual void Geom_Geometry::Transform ( const gp_Trsf & T )

pure virtual

Transformation of a geometric object. This transformation can be a translation, a rotation, a symmetry, a scaling or a complex transformation obtained by combination of the previous elementaries transformations. (see class Transformation of the package Geom).

Implemented in Geom_Axis1Placement, Geom_Axis2Placement, Geom_BezierCurve, Geom_BezierSurface, Geom_BSplineCurve, Geom_BSplineSurface, Geom_CartesianPoint, Geom_Circle, Geom_ConicalSurface, Geom_CylindricalSurface, Geom_Direction, Geom_Ellipse, Geom_Hyperbola, Geom_Line, Geom_OffsetCurve, Geom_OffsetSurface, Geom_Parabola, Geom_Plane, Geom_RectangularTrimmedSurface, Geom_SphericalSurface, Geom_SurfaceOfLinearExtrusion, Geom_SurfaceOfRevolution, Geom_ToroidalSurface, Geom_TrimmedCurve, Geom_VectorWithMagnitude, GeomPlate_Surface, ShapeExtend_ComplexCurve, and ShapeExtend_CompositeSurface.

◆ Transformed()

Handle< Geom_Geometry > Geom_Geometry::Transformed ( const gp_Trsf & T ) const

◆ Translate() [1/2]

void Geom_Geometry::Translate	(	const gp_Pnt &	P1,
		const gp_Pnt &	P2 )

Translates a Geometry from the point P1 to the point P2.

◆ Translate() [2/2]

void Geom_Geometry::Translate ( const gp_Vec & V )

Translates a Geometry. V is the vector of the translation.

◆ Translated() [1/2]

Handle< Geom_Geometry > Geom_Geometry::Translated	(	const gp_Pnt &	P1,
		const gp_Pnt &	P2 ) const

◆ Translated() [2/2]

Handle< Geom_Geometry > Geom_Geometry::Translated ( const gp_Vec & V ) const

The documentation for this class was generated from the following file:

Geom_Geometry.hxx
