GeomEvaluator_Surface Class Reference

Interface for calculation of values and derivatives for different kinds of surfaces. Works both with adaptors and surfaces. More...

#include <GeomEvaluator_Surface.hxx>

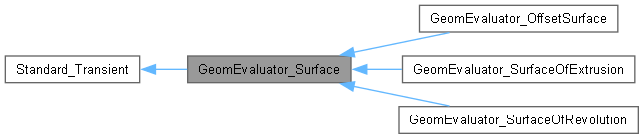

Inheritance diagram for GeomEvaluator_Surface:

Public Member Functions
	GeomEvaluator_Surface ()
virtual void	D0 (const Standard_Real theU, const Standard_Real theV, gp_Pnt &theValue) const =0
	Value of surface.
virtual void	D1 (const Standard_Real theU, const Standard_Real theV, gp_Pnt &theValue, gp_Vec &theD1U, gp_Vec &theD1V) const =0
	Value and first derivatives of surface.
virtual void	D2 (const Standard_Real theU, const Standard_Real theV, gp_Pnt &theValue, gp_Vec &theD1U, gp_Vec &theD1V, gp_Vec &theD2U, gp_Vec &theD2V, gp_Vec &theD2UV) const =0
	Value, first and second derivatives of surface.
virtual void	D3 (const Standard_Real theU, const Standard_Real theV, gp_Pnt &theValue, gp_Vec &theD1U, gp_Vec &theD1V, gp_Vec &theD2U, gp_Vec &theD2V, gp_Vec &theD2UV, gp_Vec &theD3U, gp_Vec &theD3V, gp_Vec &theD3UUV, gp_Vec &theD3UVV) const =0
	Value, first, second and third derivatives of surface.
virtual gp_Vec	DN (const Standard_Real theU, const Standard_Real theV, const Standard_Integer theDerU, const Standard_Integer theDerV) const =0
	Calculates N-th derivatives of surface, where N = theDerU + theDerV.
virtual Handle< GeomEvaluator_Surface >	ShallowCopy () const =0
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.
Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.
Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.
virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Interface for calculation of values and derivatives for different kinds of surfaces. Works both with adaptors and surfaces.

Constructor & Destructor Documentation

GeomEvaluator_Surface()

GeomEvaluator_Surface::GeomEvaluator_Surface ( )

inline

Member Function Documentation

D0()

virtual void GeomEvaluator_Surface::D0 ( const Standard_Real theU, const Standard_Real theV, gp_Pnt & theValue ) const

pure virtual

Value of surface.

Implemented in GeomEvaluator_OffsetSurface, GeomEvaluator_SurfaceOfExtrusion, and GeomEvaluator_SurfaceOfRevolution.

D1()

virtual void GeomEvaluator_Surface::D1 ( const Standard_Real theU, const Standard_Real theV, gp_Pnt & theValue, gp_Vec & theD1U, gp_Vec & theD1V ) const

pure virtual

Value and first derivatives of surface.

Implemented in GeomEvaluator_OffsetSurface, GeomEvaluator_SurfaceOfExtrusion, and GeomEvaluator_SurfaceOfRevolution.

D2()

virtual void GeomEvaluator_Surface::D2 ( const Standard_Real theU, const Standard_Real theV, gp_Pnt & theValue, gp_Vec & theD1U, gp_Vec & theD1V, gp_Vec & theD2U, gp_Vec & theD2V, gp_Vec & theD2UV ) const

pure virtual

Value, first and second derivatives of surface.

Implemented in GeomEvaluator_OffsetSurface, GeomEvaluator_SurfaceOfExtrusion, and GeomEvaluator_SurfaceOfRevolution.

D3()

virtual void GeomEvaluator_Surface::D3 ( const Standard_Real theU, const Standard_Real theV, gp_Pnt & theValue, gp_Vec & theD1U, gp_Vec & theD1V, gp_Vec & theD2U, gp_Vec & theD2V, gp_Vec & theD2UV, gp_Vec & theD3U, gp_Vec & theD3V, gp_Vec & theD3UUV, gp_Vec & theD3UVV ) const

pure virtual

Value, first, second and third derivatives of surface.

Implemented in GeomEvaluator_OffsetSurface, GeomEvaluator_SurfaceOfExtrusion, and GeomEvaluator_SurfaceOfRevolution.

DN()

virtual gp_Vec GeomEvaluator_Surface::DN ( const Standard_Real theU, const Standard_Real theV, const Standard_Integer theDerU, const Standard_Integer theDerV ) const

pure virtual

Calculates N-th derivatives of surface, where N = theDerU + theDerV.

Raises if N < 1 or theDerU < 0 or theDerV < 0

Implemented in GeomEvaluator_OffsetSurface, GeomEvaluator_SurfaceOfExtrusion, and GeomEvaluator_SurfaceOfRevolution.

ShallowCopy()

virtual Handle< GeomEvaluator_Surface > GeomEvaluator_Surface::ShallowCopy ( ) const

pure virtual

Implemented in GeomEvaluator_OffsetSurface, GeomEvaluator_SurfaceOfExtrusion, and GeomEvaluator_SurfaceOfRevolution.

---

The documentation for this class was generated from the following file:

• GeomEvaluator_Surface.hxx
