Representation of STEP entity PlanarPairWithRange. More...

#include <StepKinematics_PlanarPairWithRange.hxx>

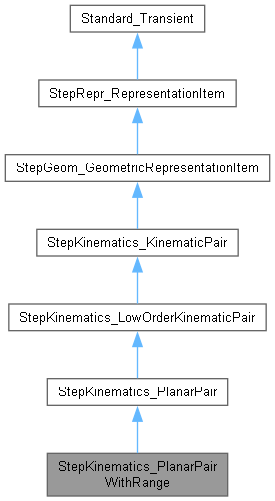

Inheritance diagram for StepKinematics_PlanarPairWithRange:

[legend]

Public Member Functions
	StepKinematics_PlanarPairWithRange ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< TCollection_HAsciiString > &theItemDefinedTransformation_Name, const Standard_Boolean hasItemDefinedTransformation_Description, const Handle< TCollection_HAsciiString > &theItemDefinedTransformation_Description, const Handle< StepRepr_RepresentationItem > &theItemDefinedTransformation_TransformItem1, const Handle< StepRepr_RepresentationItem > &theItemDefinedTransformation_TransformItem2, const Handle< StepKinematics_KinematicJoint > &theKinematicPair_Joint, const Standard_Boolean theLowOrderKinematicPair_TX, const Standard_Boolean theLowOrderKinematicPair_TY, const Standard_Boolean theLowOrderKinematicPair_TZ, const Standard_Boolean theLowOrderKinematicPair_RX, const Standard_Boolean theLowOrderKinematicPair_RY, const Standard_Boolean theLowOrderKinematicPair_RZ, const Standard_Boolean hasLowerLimitActualRotation, const Standard_Real theLowerLimitActualRotation, const Standard_Boolean hasUpperLimitActualRotation, const Standard_Real theUpperLimitActualRotation, const Standard_Boolean hasLowerLimitActualTranslationX, const Standard_Real theLowerLimitActualTranslationX, const Standard_Boolean hasUpperLimitActualTranslationX, const Standard_Real theUpperLimitActualTranslationX, const Standard_Boolean hasLowerLimitActualTranslationY, const Standard_Real theLowerLimitActualTranslationY, const Standard_Boolean hasUpperLimitActualTranslationY, const Standard_Real theUpperLimitActualTranslationY)
	Initialize all fields (own and inherited)

Standard_Real	LowerLimitActualRotation () const
	Returns field LowerLimitActualRotation.

void	SetLowerLimitActualRotation (const Standard_Real theLowerLimitActualRotation)
	Sets field LowerLimitActualRotation.

Standard_Boolean	HasLowerLimitActualRotation () const
	Returns True if optional field LowerLimitActualRotation is defined.

Standard_Real	UpperLimitActualRotation () const
	Returns field UpperLimitActualRotation.

void	SetUpperLimitActualRotation (const Standard_Real theUpperLimitActualRotation)
	Sets field UpperLimitActualRotation.

Standard_Boolean	HasUpperLimitActualRotation () const
	Returns True if optional field UpperLimitActualRotation is defined.

Standard_Real	LowerLimitActualTranslationX () const
	Returns field LowerLimitActualTranslationX.

void	SetLowerLimitActualTranslationX (const Standard_Real theLowerLimitActualTranslationX)
	Sets field LowerLimitActualTranslationX.

Standard_Boolean	HasLowerLimitActualTranslationX () const
	Returns True if optional field LowerLimitActualTranslationX is defined.

Standard_Real	UpperLimitActualTranslationX () const
	Returns field UpperLimitActualTranslationX.

void	SetUpperLimitActualTranslationX (const Standard_Real theUpperLimitActualTranslationX)
	Sets field UpperLimitActualTranslationX.

Standard_Boolean	HasUpperLimitActualTranslationX () const
	Returns True if optional field UpperLimitActualTranslationX is defined.

Standard_Real	LowerLimitActualTranslationY () const
	Returns field LowerLimitActualTranslationY.

void	SetLowerLimitActualTranslationY (const Standard_Real theLowerLimitActualTranslationY)
	Sets field LowerLimitActualTranslationY.

Standard_Boolean	HasLowerLimitActualTranslationY () const
	Returns True if optional field LowerLimitActualTranslationY is defined.

Standard_Real	UpperLimitActualTranslationY () const
	Returns field UpperLimitActualTranslationY.

void	SetUpperLimitActualTranslationY (const Standard_Real theUpperLimitActualTranslationY)
	Sets field UpperLimitActualTranslationY.

Standard_Boolean	HasUpperLimitActualTranslationY () const
	Returns True if optional field UpperLimitActualTranslationY is defined.

Public Member Functions inherited from StepKinematics_PlanarPair
	StepKinematics_PlanarPair ()
	default constructor

Public Member Functions inherited from StepKinematics_LowOrderKinematicPair
	StepKinematics_LowOrderKinematicPair ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< TCollection_HAsciiString > &theItemDefinedTransformation_Name, const Standard_Boolean hasItemDefinedTransformation_Description, const Handle< TCollection_HAsciiString > &theItemDefinedTransformation_Description, const Handle< StepRepr_RepresentationItem > &theItemDefinedTransformation_TransformItem1, const Handle< StepRepr_RepresentationItem > &theItemDefinedTransformation_TransformItem2, const Handle< StepKinematics_KinematicJoint > &theKinematicPair_Joint, const Standard_Boolean theTX, const Standard_Boolean theTY, const Standard_Boolean theTZ, const Standard_Boolean theRX, const Standard_Boolean theRY, const Standard_Boolean theRZ)
	Initialize all fields (own and inherited)

Standard_Boolean	TX () const
	Returns field TX.

void	SetTX (const Standard_Boolean theTX)
	Sets field TX.

Standard_Boolean	TY () const
	Returns field TY.

void	SetTY (const Standard_Boolean theTY)
	Sets field TY.

Standard_Boolean	TZ () const
	Returns field TZ.

void	SetTZ (const Standard_Boolean theTZ)
	Sets field TZ.

Standard_Boolean	RX () const
	Returns field RX.

void	SetRX (const Standard_Boolean theRX)
	Sets field RX.

Standard_Boolean	RY () const
	Returns field RY.

void	SetRY (const Standard_Boolean theRY)
	Sets field RY.

Standard_Boolean	RZ () const
	Returns field RZ.

void	SetRZ (const Standard_Boolean theRZ)
	Sets field RZ.

Public Member Functions inherited from StepKinematics_KinematicPair
	StepKinematics_KinematicPair ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< TCollection_HAsciiString > &theItemDefinedTransformation_Name, const Standard_Boolean hasItemDefinedTransformation_Description, const Handle< TCollection_HAsciiString > &theItemDefinedTransformation_Description, const Handle< StepRepr_RepresentationItem > &theItemDefinedTransformation_TransformItem1, const Handle< StepRepr_RepresentationItem > &theItemDefinedTransformation_TransformItem2, const Handle< StepKinematics_KinematicJoint > &theJoint)
	Initialize all fields (own and inherited)

Handle< StepRepr_ItemDefinedTransformation >	ItemDefinedTransformation () const
	Returns data for supertype ItemDefinedTransformation.

void	SetItemDefinedTransformation (const Handle< StepRepr_ItemDefinedTransformation > &theItemDefinedTransformation)
	Sets data for supertype ItemDefinedTransformation.

Handle< StepKinematics_KinematicJoint >	Joint () const
	Returns field Joint.

void	SetJoint (const Handle< StepKinematics_KinematicJoint > &theJoint)
	Sets field Joint.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity PlanarPairWithRange.

Constructor & Destructor Documentation

◆ StepKinematics_PlanarPairWithRange()

StepKinematics_PlanarPairWithRange::StepKinematics_PlanarPairWithRange ( )

default constructor

Member Function Documentation

◆ HasLowerLimitActualRotation()

Standard_Boolean StepKinematics_PlanarPairWithRange::HasLowerLimitActualRotation ( ) const

Returns True if optional field LowerLimitActualRotation is defined.

◆ HasLowerLimitActualTranslationX()

Standard_Boolean StepKinematics_PlanarPairWithRange::HasLowerLimitActualTranslationX ( ) const

Returns True if optional field LowerLimitActualTranslationX is defined.

◆ HasLowerLimitActualTranslationY()

Standard_Boolean StepKinematics_PlanarPairWithRange::HasLowerLimitActualTranslationY ( ) const

Returns True if optional field LowerLimitActualTranslationY is defined.

◆ HasUpperLimitActualRotation()

Standard_Boolean StepKinematics_PlanarPairWithRange::HasUpperLimitActualRotation ( ) const

Returns True if optional field UpperLimitActualRotation is defined.

◆ HasUpperLimitActualTranslationX()

Standard_Boolean StepKinematics_PlanarPairWithRange::HasUpperLimitActualTranslationX ( ) const

Returns True if optional field UpperLimitActualTranslationX is defined.

◆ HasUpperLimitActualTranslationY()

Standard_Boolean StepKinematics_PlanarPairWithRange::HasUpperLimitActualTranslationY ( ) const

Returns True if optional field UpperLimitActualTranslationY is defined.

◆ Init()

void StepKinematics_PlanarPairWithRange::Init	(	const Handle< TCollection_HAsciiString > &	theRepresentationItem_Name,
		const Handle< TCollection_HAsciiString > &	theItemDefinedTransformation_Name,
		const Standard_Boolean	hasItemDefinedTransformation_Description,
		const Handle< TCollection_HAsciiString > &	theItemDefinedTransformation_Description,
		const Handle< StepRepr_RepresentationItem > &	theItemDefinedTransformation_TransformItem1,
		const Handle< StepRepr_RepresentationItem > &	theItemDefinedTransformation_TransformItem2,
		const Handle< StepKinematics_KinematicJoint > &	theKinematicPair_Joint,
		const Standard_Boolean	theLowOrderKinematicPair_TX,
		const Standard_Boolean	theLowOrderKinematicPair_TY,
		const Standard_Boolean	theLowOrderKinematicPair_TZ,
		const Standard_Boolean	theLowOrderKinematicPair_RX,
		const Standard_Boolean	theLowOrderKinematicPair_RY,
		const Standard_Boolean	theLowOrderKinematicPair_RZ,
		const Standard_Boolean	hasLowerLimitActualRotation,
		const Standard_Real	theLowerLimitActualRotation,
		const Standard_Boolean	hasUpperLimitActualRotation,
		const Standard_Real	theUpperLimitActualRotation,
		const Standard_Boolean	hasLowerLimitActualTranslationX,
		const Standard_Real	theLowerLimitActualTranslationX,
		const Standard_Boolean	hasUpperLimitActualTranslationX,
		const Standard_Real	theUpperLimitActualTranslationX,
		const Standard_Boolean	hasLowerLimitActualTranslationY,
		const Standard_Real	theLowerLimitActualTranslationY,
		const Standard_Boolean	hasUpperLimitActualTranslationY,
		const Standard_Real	theUpperLimitActualTranslationY )

Initialize all fields (own and inherited)

◆ LowerLimitActualRotation()

Standard_Real StepKinematics_PlanarPairWithRange::LowerLimitActualRotation ( ) const

Returns field LowerLimitActualRotation.

◆ LowerLimitActualTranslationX()

Standard_Real StepKinematics_PlanarPairWithRange::LowerLimitActualTranslationX ( ) const

Returns field LowerLimitActualTranslationX.

◆ LowerLimitActualTranslationY()

Standard_Real StepKinematics_PlanarPairWithRange::LowerLimitActualTranslationY ( ) const

Returns field LowerLimitActualTranslationY.

◆ SetLowerLimitActualRotation()

void StepKinematics_PlanarPairWithRange::SetLowerLimitActualRotation ( const Standard_Real theLowerLimitActualRotation )

Sets field LowerLimitActualRotation.

◆ SetLowerLimitActualTranslationX()

void StepKinematics_PlanarPairWithRange::SetLowerLimitActualTranslationX ( const Standard_Real theLowerLimitActualTranslationX )

Sets field LowerLimitActualTranslationX.

◆ SetLowerLimitActualTranslationY()

void StepKinematics_PlanarPairWithRange::SetLowerLimitActualTranslationY ( const Standard_Real theLowerLimitActualTranslationY )

Sets field LowerLimitActualTranslationY.

◆ SetUpperLimitActualRotation()

void StepKinematics_PlanarPairWithRange::SetUpperLimitActualRotation ( const Standard_Real theUpperLimitActualRotation )

Sets field UpperLimitActualRotation.

◆ SetUpperLimitActualTranslationX()

void StepKinematics_PlanarPairWithRange::SetUpperLimitActualTranslationX ( const Standard_Real theUpperLimitActualTranslationX )

Sets field UpperLimitActualTranslationX.

◆ SetUpperLimitActualTranslationY()

void StepKinematics_PlanarPairWithRange::SetUpperLimitActualTranslationY ( const Standard_Real theUpperLimitActualTranslationY )

Sets field UpperLimitActualTranslationY.

◆ UpperLimitActualRotation()

Standard_Real StepKinematics_PlanarPairWithRange::UpperLimitActualRotation ( ) const

Returns field UpperLimitActualRotation.

◆ UpperLimitActualTranslationX()

Standard_Real StepKinematics_PlanarPairWithRange::UpperLimitActualTranslationX ( ) const

Returns field UpperLimitActualTranslationX.

◆ UpperLimitActualTranslationY()

Standard_Real StepKinematics_PlanarPairWithRange::UpperLimitActualTranslationY ( ) const

Returns field UpperLimitActualTranslationY.

The documentation for this class was generated from the following file:

StepKinematics_PlanarPairWithRange.hxx
