Representation of STEP entity SlidingSurfacePairValue. More...

#include <StepKinematics_SlidingSurfacePairValue.hxx>

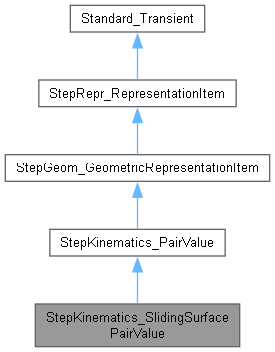

Inheritance diagram for StepKinematics_SlidingSurfacePairValue:

[legend]

Public Member Functions
	StepKinematics_SlidingSurfacePairValue ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepKinematics_KinematicPair > &thePairValue_AppliesToPair, const Handle< StepGeom_PointOnSurface > &theActualPointOnSurface1, const Handle< StepGeom_PointOnSurface > &theActualPointOnSurface2, const Standard_Real theActualRotation)
	Initialize all fields (own and inherited)

Handle< StepGeom_PointOnSurface >	ActualPointOnSurface1 () const
	Returns field ActualPointOnSurface1.

void	SetActualPointOnSurface1 (const Handle< StepGeom_PointOnSurface > &theActualPointOnSurface1)
	Sets field ActualPointOnSurface1.

Handle< StepGeom_PointOnSurface >	ActualPointOnSurface2 () const
	Returns field ActualPointOnSurface2.

void	SetActualPointOnSurface2 (const Handle< StepGeom_PointOnSurface > &theActualPointOnSurface2)
	Sets field ActualPointOnSurface2.

Standard_Real	ActualRotation () const
	Returns field ActualRotation.

void	SetActualRotation (const Standard_Real theActualRotation)
	Sets field ActualRotation.

Public Member Functions inherited from StepKinematics_PairValue
	StepKinematics_PairValue ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepKinematics_KinematicPair > &theAppliesToPair)
	Initialize all fields (own and inherited)

Handle< StepKinematics_KinematicPair >	AppliesToPair () const
	Returns field AppliesToPair.

void	SetAppliesToPair (const Handle< StepKinematics_KinematicPair > &theAppliesToPair)
	Sets field AppliesToPair.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity SlidingSurfacePairValue.

Constructor & Destructor Documentation

◆ StepKinematics_SlidingSurfacePairValue()

StepKinematics_SlidingSurfacePairValue::StepKinematics_SlidingSurfacePairValue ( )

default constructor

Member Function Documentation

◆ ActualPointOnSurface1()

Handle< StepGeom_PointOnSurface > StepKinematics_SlidingSurfacePairValue::ActualPointOnSurface1 ( ) const

Returns field ActualPointOnSurface1.

◆ ActualPointOnSurface2()

Handle< StepGeom_PointOnSurface > StepKinematics_SlidingSurfacePairValue::ActualPointOnSurface2 ( ) const

Returns field ActualPointOnSurface2.

◆ ActualRotation()

Standard_Real StepKinematics_SlidingSurfacePairValue::ActualRotation ( ) const

Returns field ActualRotation.

◆ Init()

void StepKinematics_SlidingSurfacePairValue::Init	(	const Handle< TCollection_HAsciiString > &	theRepresentationItem_Name,
		const Handle< StepKinematics_KinematicPair > &	thePairValue_AppliesToPair,
		const Handle< StepGeom_PointOnSurface > &	theActualPointOnSurface1,
		const Handle< StepGeom_PointOnSurface > &	theActualPointOnSurface2,
		const Standard_Real	theActualRotation )

Initialize all fields (own and inherited)

◆ SetActualPointOnSurface1()

void StepKinematics_SlidingSurfacePairValue::SetActualPointOnSurface1 ( const Handle< StepGeom_PointOnSurface > & theActualPointOnSurface1 )

Sets field ActualPointOnSurface1.

◆ SetActualPointOnSurface2()

void StepKinematics_SlidingSurfacePairValue::SetActualPointOnSurface2 ( const Handle< StepGeom_PointOnSurface > & theActualPointOnSurface2 )

Sets field ActualPointOnSurface2.

◆ SetActualRotation()

void StepKinematics_SlidingSurfacePairValue::SetActualRotation ( const Standard_Real theActualRotation )

Sets field ActualRotation.

The documentation for this class was generated from the following file:

StepKinematics_SlidingSurfacePairValue.hxx
