StepShape_OrientedPath Class Reference

#include <StepShape_OrientedPath.hxx>

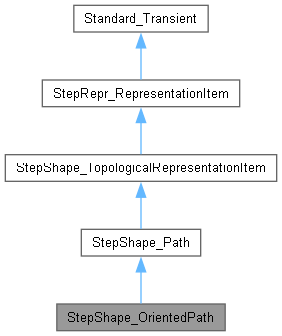

Inheritance diagram for StepShape_OrientedPath:

Public Member Functions
	StepShape_OrientedPath ()
	Returns a OrientedPath.
void	Init (const Handle< TCollection_HAsciiString > &aName, const Handle< StepShape_EdgeLoop > &aPathElement, const Standard_Boolean aOrientation)
void	SetPathElement (const Handle< StepShape_EdgeLoop > &aPathElement)
Handle< StepShape_EdgeLoop >	PathElement () const
void	SetOrientation (const Standard_Boolean aOrientation)
Standard_Boolean	Orientation () const
virtual void	SetEdgeList (const Handle< StepShape_HArray1OfOrientedEdge > &aEdgeList) override
virtual Handle< StepShape_HArray1OfOrientedEdge >	EdgeList () const override
virtual Handle< StepShape_OrientedEdge >	EdgeListValue (const Standard_Integer num) const override
virtual Standard_Integer	NbEdgeList () const override
Public Member Functions inherited from StepShape_Path
	StepShape_Path ()
	Returns a Path.
void	Init (const Handle< TCollection_HAsciiString > &aName, const Handle< StepShape_HArray1OfOrientedEdge > &aEdgeList)
Public Member Functions inherited from StepShape_TopologicalRepresentationItem
	StepShape_TopologicalRepresentationItem ()
	Returns a TopologicalRepresentationItem.
Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.
void	Init (const Handle< TCollection_HAsciiString > &aName)
void	SetName (const Handle< TCollection_HAsciiString > &aName)
Handle< TCollection_HAsciiString >	Name () const
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.
Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.
Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.
virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Constructor & Destructor Documentation

StepShape_OrientedPath()

StepShape_OrientedPath::StepShape_OrientedPath

(

)

Returns a OrientedPath.

Member Function Documentation

EdgeList()

virtual Handle< StepShape_HArray1OfOrientedEdge > StepShape_OrientedPath::EdgeList ( ) const

overridevirtual

Reimplemented from StepShape_Path.

EdgeListValue()

virtual Handle< StepShape_OrientedEdge > StepShape_OrientedPath::EdgeListValue ( const Standard_Integer num ) const

overridevirtual

Reimplemented from StepShape_Path.

Init()

void StepShape_OrientedPath::Init	(	const Handle< TCollection_HAsciiString > &	aName,
		const Handle< StepShape_EdgeLoop > &	aPathElement,
		const Standard_Boolean	aOrientation )

NbEdgeList()

virtual Standard_Integer StepShape_OrientedPath::NbEdgeList ( ) const

overridevirtual

Reimplemented from StepShape_Path.

Orientation()

Standard_Boolean StepShape_OrientedPath::Orientation

(

)

const

PathElement()

Handle< StepShape_EdgeLoop > StepShape_OrientedPath::PathElement

(

)

const

SetEdgeList()

virtual void StepShape_OrientedPath::SetEdgeList ( const Handle< StepShape_HArray1OfOrientedEdge > & aEdgeList )

overridevirtual

Reimplemented from StepShape_Path.

SetOrientation()

void StepShape_OrientedPath::SetOrientation

(

const Standard_Boolean

aOrientation

)

SetPathElement()

void StepShape_OrientedPath::SetPathElement

(

const Handle< StepShape_EdgeLoop > &

aPathElement

)

---

The documentation for this class was generated from the following file:

• StepShape_OrientedPath.hxx
