Representation of STEP entity TessellatedConnectingEdge. More...

#include <StepVisual_TessellatedConnectingEdge.hxx>

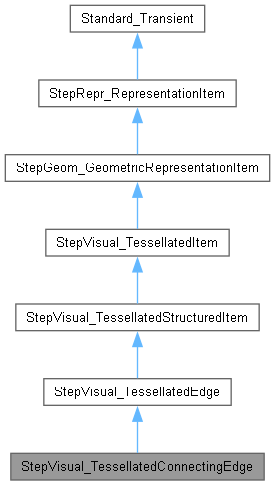

Inheritance diagram for StepVisual_TessellatedConnectingEdge:

[legend]

Public Member Functions
	StepVisual_TessellatedConnectingEdge ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theTessellatedEdge_Coordinates, const Standard_Boolean theHasTessellatedEdge_GeometricLink, const StepVisual_EdgeOrCurve &theTessellatedEdge_GeometricLink, const Handle< TColStd_HArray1OfInteger > &theTessellatedEdge_LineStrip, const StepData_Logical theSmooth, const Handle< StepVisual_TessellatedFace > &theFace1, const Handle< StepVisual_TessellatedFace > &theFace2, const Handle< TColStd_HArray1OfInteger > &theLineStripFace1, const Handle< TColStd_HArray1OfInteger > &theLineStripFace2)
	Initialize all fields (own and inherited)

StepData_Logical	Smooth () const
	Returns field Smooth.

void	SetSmooth (const StepData_Logical theSmooth)
	Sets field Smooth.

Handle< StepVisual_TessellatedFace >	Face1 () const
	Returns field Face1.

void	SetFace1 (const Handle< StepVisual_TessellatedFace > &theFace1)
	Sets field Face1.

Handle< StepVisual_TessellatedFace >	Face2 () const
	Returns field Face2.

void	SetFace2 (const Handle< StepVisual_TessellatedFace > &theFace2)
	Sets field Face2.

Handle< TColStd_HArray1OfInteger >	LineStripFace1 () const
	Returns field LineStripFace1.

void	SetLineStripFace1 (const Handle< TColStd_HArray1OfInteger > &theLineStripFace1)
	Sets field LineStripFace1.

Standard_Integer	NbLineStripFace1 () const
	Returns number of LineStripFace1.

Standard_Integer	LineStripFace1Value (const Standard_Integer theNum) const
	Returns value of LineStripFace1 by its num.

Handle< TColStd_HArray1OfInteger >	LineStripFace2 () const
	Returns field LineStripFace2.

void	SetLineStripFace2 (const Handle< TColStd_HArray1OfInteger > &theLineStripFace2)
	Sets field LineStripFace2.

Standard_Integer	NbLineStripFace2 () const
	Returns number of LineStripFace2.

Standard_Integer	LineStripFace2Value (const Standard_Integer theNum) const
	Returns value of LineStripFace2 by its num.

Public Member Functions inherited from StepVisual_TessellatedEdge
	StepVisual_TessellatedEdge ()
	default constructor

void	Init (const Handle< TCollection_HAsciiString > &theRepresentationItem_Name, const Handle< StepVisual_CoordinatesList > &theCoordinates, const Standard_Boolean theHasGeometricLink, const StepVisual_EdgeOrCurve &theGeometricLink, const Handle< TColStd_HArray1OfInteger > &theLineStrip)
	Initialize all fields (own and inherited)

Handle< StepVisual_CoordinatesList >	Coordinates () const
	Returns field Coordinates.

void	SetCoordinates (const Handle< StepVisual_CoordinatesList > &theCoordinates)
	Sets field Coordinates.

StepVisual_EdgeOrCurve	GeometricLink () const
	Returns field GeometricLink.

void	SetGeometricLink (const StepVisual_EdgeOrCurve &theGeometricLink)
	Sets field GeometricLink.

Standard_Boolean	HasGeometricLink () const
	Returns True if optional field GeometricLink is defined.

Handle< TColStd_HArray1OfInteger >	LineStrip () const
	Returns field LineStrip.

void	SetLineStrip (const Handle< TColStd_HArray1OfInteger > &theLineStrip)
	Sets field LineStrip.

Standard_Integer	NbLineStrip () const
	Returns number of LineStrip.

Standard_Integer	LineStripValue (const Standard_Integer theNum) const
	Returns value of LineStrip by its num.

Public Member Functions inherited from StepVisual_TessellatedStructuredItem
	StepVisual_TessellatedStructuredItem ()
	default constructor

Public Member Functions inherited from StepVisual_TessellatedItem
	StepVisual_TessellatedItem ()
	Returns a DraughtingCalloutElement select type.

Public Member Functions inherited from StepGeom_GeometricRepresentationItem
	StepGeom_GeometricRepresentationItem ()
	Returns a GeometricRepresentationItem.

Public Member Functions inherited from StepRepr_RepresentationItem
	StepRepr_RepresentationItem ()
	Returns a RepresentationItem.

void	Init (const Handle< TCollection_HAsciiString > &aName)

void	SetName (const Handle< TCollection_HAsciiString > &aName)

Handle< TCollection_HAsciiString >	Name () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.

static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Representation of STEP entity TessellatedConnectingEdge.

Constructor & Destructor Documentation

◆ StepVisual_TessellatedConnectingEdge()

StepVisual_TessellatedConnectingEdge::StepVisual_TessellatedConnectingEdge ( )

default constructor

Member Function Documentation

◆ Face1()

Handle< StepVisual_TessellatedFace > StepVisual_TessellatedConnectingEdge::Face1 ( ) const

Returns field Face1.

◆ Face2()

Handle< StepVisual_TessellatedFace > StepVisual_TessellatedConnectingEdge::Face2 ( ) const

Returns field Face2.

◆ Init()

void StepVisual_TessellatedConnectingEdge::Init	(	const Handle< TCollection_HAsciiString > &	theRepresentationItem_Name,
		const Handle< StepVisual_CoordinatesList > &	theTessellatedEdge_Coordinates,
		const Standard_Boolean	theHasTessellatedEdge_GeometricLink,
		const StepVisual_EdgeOrCurve &	theTessellatedEdge_GeometricLink,
		const Handle< TColStd_HArray1OfInteger > &	theTessellatedEdge_LineStrip,
		const StepData_Logical	theSmooth,
		const Handle< StepVisual_TessellatedFace > &	theFace1,
		const Handle< StepVisual_TessellatedFace > &	theFace2,
		const Handle< TColStd_HArray1OfInteger > &	theLineStripFace1,
		const Handle< TColStd_HArray1OfInteger > &	theLineStripFace2 )

Initialize all fields (own and inherited)

◆ LineStripFace1()

Handle< TColStd_HArray1OfInteger > StepVisual_TessellatedConnectingEdge::LineStripFace1 ( ) const

Returns field LineStripFace1.

◆ LineStripFace1Value()

Standard_Integer StepVisual_TessellatedConnectingEdge::LineStripFace1Value ( const Standard_Integer theNum ) const

Returns value of LineStripFace1 by its num.

◆ LineStripFace2()

Handle< TColStd_HArray1OfInteger > StepVisual_TessellatedConnectingEdge::LineStripFace2 ( ) const

Returns field LineStripFace2.

◆ LineStripFace2Value()

Standard_Integer StepVisual_TessellatedConnectingEdge::LineStripFace2Value ( const Standard_Integer theNum ) const

Returns value of LineStripFace2 by its num.

◆ NbLineStripFace1()

Standard_Integer StepVisual_TessellatedConnectingEdge::NbLineStripFace1 ( ) const

Returns number of LineStripFace1.

◆ NbLineStripFace2()

Standard_Integer StepVisual_TessellatedConnectingEdge::NbLineStripFace2 ( ) const

Returns number of LineStripFace2.

◆ SetFace1()

void StepVisual_TessellatedConnectingEdge::SetFace1 ( const Handle< StepVisual_TessellatedFace > & theFace1 )

Sets field Face1.

◆ SetFace2()

void StepVisual_TessellatedConnectingEdge::SetFace2 ( const Handle< StepVisual_TessellatedFace > & theFace2 )

Sets field Face2.

◆ SetLineStripFace1()

void StepVisual_TessellatedConnectingEdge::SetLineStripFace1 ( const Handle< TColStd_HArray1OfInteger > & theLineStripFace1 )

Sets field LineStripFace1.

◆ SetLineStripFace2()

void StepVisual_TessellatedConnectingEdge::SetLineStripFace2 ( const Handle< TColStd_HArray1OfInteger > & theLineStripFace2 )

Sets field LineStripFace2.

◆ SetSmooth()

void StepVisual_TessellatedConnectingEdge::SetSmooth ( const StepData_Logical theSmooth )

Sets field Smooth.

◆ Smooth()

StepData_Logical StepVisual_TessellatedConnectingEdge::Smooth ( ) const

Returns field Smooth.

The documentation for this class was generated from the following file:

StepVisual_TessellatedConnectingEdge.hxx
