Auxiliary class providing an exploration of a set of shapes to build faces or solids. To build faces : shapes are wires, elements are edges. To build solids : shapes are shells, elements are faces. The ShapeSet stores a list of shapes, a list of elements to start reconstructions, and a map to search neighbours. The map stores the connection between elements through subshapes of type <SubShapeType> given in constructor. <SubShapeType> is : More...

#include <TopOpeBRepBuild_ShapeSet.hxx>

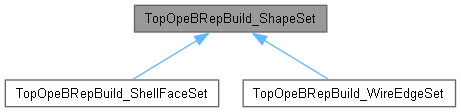

Inheritance diagram for TopOpeBRepBuild_ShapeSet:

[legend]

Public Member Functions
	TopOpeBRepBuild_ShapeSet (const TopAbs_ShapeEnum SubShapeType, const Standard_Boolean checkshape=Standard_True)
	Creates a ShapeSet in order to build shapes connected by <SubShapeType> shapes. <checkshape>:check (or not) the shapes, startelements, elements added.

virtual	~TopOpeBRepBuild_ShapeSet ()

virtual void	AddShape (const TopoDS_Shape &S)
	Adds ~~to the list of shapes. (wires or shells).~~

virtual void	AddStartElement (const TopoDS_Shape &S)
	(S is a face or edge) Add S to the list of starting shapes used for reconstructions. apply AddElement(S).

virtual void	AddElement (const TopoDS_Shape &S)
	for each subshape SE of S of type mySubShapeType

const TopTools_ListOfShape &	StartElements () const
	return a reference on myStartShapes

void	InitShapes ()

Standard_Boolean	MoreShapes () const

void	NextShape ()

const TopoDS_Shape &	Shape () const

void	InitStartElements ()

Standard_Boolean	MoreStartElements () const

void	NextStartElement ()

const TopoDS_Shape &	StartElement () const

virtual void	InitNeighbours (const TopoDS_Shape &S)

Standard_Boolean	MoreNeighbours ()

void	NextNeighbour ()

const TopoDS_Shape &	Neighbour () const

TopTools_ListOfShape &	ChangeStartShapes ()

virtual void	FindNeighbours ()
	Build the list of neighbour shapes of myCurrentShape (neighbour shapes and myCurrentShapes are of type t) Initialize myIncidentShapesIter on neighbour shapes.

virtual const TopTools_ListOfShape &	MakeNeighboursList (const TopoDS_Shape &E, const TopoDS_Shape &V)

Standard_Integer	MaxNumberSubShape (const TopoDS_Shape &Shape)

void	CheckShape (const Standard_Boolean checkshape)

Standard_Boolean	CheckShape () const

Standard_Boolean	CheckShape (const TopoDS_Shape &S, const Standard_Boolean checkgeom=Standard_False)

void	DumpName (Standard_OStream &OS, const TCollection_AsciiString &str) const

void	DumpCheck (Standard_OStream &OS, const TCollection_AsciiString &str, const TopoDS_Shape &S, const Standard_Boolean chk) const

virtual void	DumpSS ()

virtual void	DumpBB ()

void	DEBName (const TCollection_AsciiString &N)

const TCollection_AsciiString &	DEBName () const

void	DEBNumber (const Standard_Integer I)

Standard_Integer	DEBNumber () const

virtual TCollection_AsciiString	SName (const TopoDS_Shape &S, const TCollection_AsciiString &sb="", const TCollection_AsciiString &sa="") const

virtual TCollection_AsciiString	SNameori (const TopoDS_Shape &S, const TCollection_AsciiString &sb="", const TCollection_AsciiString &sa="") const

virtual TCollection_AsciiString	SName (const TopTools_ListOfShape &S, const TCollection_AsciiString &sb="", const TCollection_AsciiString &sa="") const

virtual TCollection_AsciiString	SNameori (const TopTools_ListOfShape &S, const TCollection_AsciiString &sb="", const TCollection_AsciiString &sa="") const

Protected Member Functions
void	ProcessAddShape (const TopoDS_Shape &S)

void	ProcessAddStartElement (const TopoDS_Shape &S)

void	ProcessAddElement (const TopoDS_Shape &S)

Detailed Description

Auxiliary class providing an exploration of a set of shapes to build faces or solids. To build faces : shapes are wires, elements are edges. To build solids : shapes are shells, elements are faces. The ShapeSet stores a list of shapes, a list of elements to start reconstructions, and a map to search neighbours. The map stores the connection between elements through subshapes of type <SubShapeType> given in constructor. <SubShapeType> is :

TopAbs_VERTEX to connect edges
TopAbs_EDGE to connect faces

Signature needed by the BlockBuilder : InitStartElements(me : in out) MoreStartElements(me) returns Boolean; NextStartElement(me : in out); StartElement(me) returns Shape; —C++: return const & InitNeighbours(me : in out; S : Shape); MoreNeighbours(me) returns Boolean; NextNeighbour(me : in out); Neighbour(me) returns Shape; —C++: return const &

Constructor & Destructor Documentation

◆ TopOpeBRepBuild_ShapeSet()

TopOpeBRepBuild_ShapeSet::TopOpeBRepBuild_ShapeSet	(	const TopAbs_ShapeEnum	SubShapeType,
		const Standard_Boolean	checkshape = Standard_True )

Creates a ShapeSet in order to build shapes connected by <SubShapeType> shapes. <checkshape>:check (or not) the shapes, startelements, elements added.

◆ ~TopOpeBRepBuild_ShapeSet()

virtual TopOpeBRepBuild_ShapeSet::~TopOpeBRepBuild_ShapeSet ( )

virtual

Member Function Documentation

◆ AddElement()

virtual void TopOpeBRepBuild_ShapeSet::AddElement ( const TopoDS_Shape & S )

virtual

for each subshape SE of S of type mySubShapeType

Add subshapes of S to the map of subshapes (mySubShapeMap)
Add S to the list of shape incident to subshapes of S.

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ AddShape()

virtual void TopOpeBRepBuild_ShapeSet::AddShape ( const TopoDS_Shape & S )

virtual

Adds ~~to the list of shapes. (wires or shells).~~

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ AddStartElement()

virtual void TopOpeBRepBuild_ShapeSet::AddStartElement ( const TopoDS_Shape & S )

virtual

(S is a face or edge) Add S to the list of starting shapes used for reconstructions. apply AddElement(S).

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ ChangeStartShapes()

TopTools_ListOfShape & TopOpeBRepBuild_ShapeSet::ChangeStartShapes ( )

◆ CheckShape() [1/3]

Standard_Boolean TopOpeBRepBuild_ShapeSet::CheckShape ( ) const

◆ CheckShape() [2/3]

void TopOpeBRepBuild_ShapeSet::CheckShape ( const Standard_Boolean checkshape )

◆ CheckShape() [3/3]

Standard_Boolean TopOpeBRepBuild_ShapeSet::CheckShape	(	const TopoDS_Shape &	S,
		const Standard_Boolean	checkgeom = Standard_False )

◆ DEBName() [1/2]

const TCollection_AsciiString & TopOpeBRepBuild_ShapeSet::DEBName ( ) const

◆ DEBName() [2/2]

void TopOpeBRepBuild_ShapeSet::DEBName ( const TCollection_AsciiString & N )

◆ DEBNumber() [1/2]

Standard_Integer TopOpeBRepBuild_ShapeSet::DEBNumber ( ) const

◆ DEBNumber() [2/2]

void TopOpeBRepBuild_ShapeSet::DEBNumber ( const Standard_Integer I )

◆ DumpBB()

virtual void TopOpeBRepBuild_ShapeSet::DumpBB ( )

virtual

◆ DumpCheck()

void TopOpeBRepBuild_ShapeSet::DumpCheck	(	Standard_OStream &	OS,
		const TCollection_AsciiString &	str,
		const TopoDS_Shape &	S,
		const Standard_Boolean	chk ) const

◆ DumpName()

void TopOpeBRepBuild_ShapeSet::DumpName	(	Standard_OStream &	OS,
		const TCollection_AsciiString &	str ) const

◆ DumpSS()

virtual void TopOpeBRepBuild_ShapeSet::DumpSS ( )

virtual

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ FindNeighbours()

virtual void TopOpeBRepBuild_ShapeSet::FindNeighbours ( )

virtual

Build the list of neighbour shapes of myCurrentShape (neighbour shapes and myCurrentShapes are of type t) Initialize myIncidentShapesIter on neighbour shapes.

Reimplemented in TopOpeBRepBuild_WireEdgeSet.

◆ InitNeighbours()

virtual void TopOpeBRepBuild_ShapeSet::InitNeighbours ( const TopoDS_Shape & S )

virtual

Reimplemented in TopOpeBRepBuild_WireEdgeSet.

◆ InitShapes()

void TopOpeBRepBuild_ShapeSet::InitShapes ( )

◆ InitStartElements()

void TopOpeBRepBuild_ShapeSet::InitStartElements ( )

◆ MakeNeighboursList()

virtual const TopTools_ListOfShape & TopOpeBRepBuild_ShapeSet::MakeNeighboursList	(	const TopoDS_Shape &	E,
		const TopoDS_Shape &	V )

virtual

Reimplemented in TopOpeBRepBuild_WireEdgeSet.

◆ MaxNumberSubShape()

Standard_Integer TopOpeBRepBuild_ShapeSet::MaxNumberSubShape ( const TopoDS_Shape & Shape )

◆ MoreNeighbours()

Standard_Boolean TopOpeBRepBuild_ShapeSet::MoreNeighbours ( )

◆ MoreShapes()

Standard_Boolean TopOpeBRepBuild_ShapeSet::MoreShapes ( ) const

◆ MoreStartElements()

Standard_Boolean TopOpeBRepBuild_ShapeSet::MoreStartElements ( ) const

◆ Neighbour()

const TopoDS_Shape & TopOpeBRepBuild_ShapeSet::Neighbour ( ) const

◆ NextNeighbour()

void TopOpeBRepBuild_ShapeSet::NextNeighbour ( )

◆ NextShape()

void TopOpeBRepBuild_ShapeSet::NextShape ( )

◆ NextStartElement()

void TopOpeBRepBuild_ShapeSet::NextStartElement ( )

◆ ProcessAddElement()

void TopOpeBRepBuild_ShapeSet::ProcessAddElement ( const TopoDS_Shape & S )

protected

◆ ProcessAddShape()

void TopOpeBRepBuild_ShapeSet::ProcessAddShape ( const TopoDS_Shape & S )

protected

◆ ProcessAddStartElement()

void TopOpeBRepBuild_ShapeSet::ProcessAddStartElement ( const TopoDS_Shape & S )

protected

◆ Shape()

const TopoDS_Shape & TopOpeBRepBuild_ShapeSet::Shape ( ) const

◆ SName() [1/2]

virtual TCollection_AsciiString TopOpeBRepBuild_ShapeSet::SName	(	const TopoDS_Shape &	S,
		const TCollection_AsciiString &	sb = "",
		const TCollection_AsciiString &	sa = "" ) const

virtual

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ SName() [2/2]

virtual TCollection_AsciiString TopOpeBRepBuild_ShapeSet::SName	(	const TopTools_ListOfShape &	S,
		const TCollection_AsciiString &	sb = "",
		const TCollection_AsciiString &	sa = "" ) const

virtual

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ SNameori() [1/2]

virtual TCollection_AsciiString TopOpeBRepBuild_ShapeSet::SNameori	(	const TopoDS_Shape &	S,
		const TCollection_AsciiString &	sb = "",
		const TCollection_AsciiString &	sa = "" ) const

virtual

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ SNameori() [2/2]

virtual TCollection_AsciiString TopOpeBRepBuild_ShapeSet::SNameori	(	const TopTools_ListOfShape &	S,
		const TCollection_AsciiString &	sb = "",
		const TCollection_AsciiString &	sa = "" ) const

virtual

Reimplemented in TopOpeBRepBuild_ShellFaceSet, and TopOpeBRepBuild_WireEdgeSet.

◆ StartElement()

const TopoDS_Shape & TopOpeBRepBuild_ShapeSet::StartElement ( ) const

◆ StartElements()

const TopTools_ListOfShape & TopOpeBRepBuild_ShapeSet::StartElements ( ) const

return a reference on myStartShapes

Field Documentation

◆ myCheckShape

Standard_Boolean TopOpeBRepBuild_ShapeSet::myCheckShape

protected

◆ myCurrentShape

TopoDS_Shape TopOpeBRepBuild_ShapeSet::myCurrentShape

protected

◆ myCurrentShapeNeighbours

TopTools_ListOfShape TopOpeBRepBuild_ShapeSet::myCurrentShapeNeighbours

protected

◆ myDEBName

TCollection_AsciiString TopOpeBRepBuild_ShapeSet::myDEBName

protected

◆ myDEBNumber

Standard_Integer TopOpeBRepBuild_ShapeSet::myDEBNumber

protected

◆ myIncidentShapesIter

TopTools_ListIteratorOfListOfShape TopOpeBRepBuild_ShapeSet::myIncidentShapesIter

protected

◆ myOMES

TopTools_IndexedMapOfOrientedShape TopOpeBRepBuild_ShapeSet::myOMES

protected

◆ myOMSH

TopTools_IndexedMapOfOrientedShape TopOpeBRepBuild_ShapeSet::myOMSH

protected

◆ myOMSS

TopTools_IndexedMapOfOrientedShape TopOpeBRepBuild_ShapeSet::myOMSS

protected

◆ myShapes

TopTools_ListOfShape TopOpeBRepBuild_ShapeSet::myShapes

protected

◆ myShapesIter

TopTools_ListIteratorOfListOfShape TopOpeBRepBuild_ShapeSet::myShapesIter

protected

◆ myShapeType

TopAbs_ShapeEnum TopOpeBRepBuild_ShapeSet::myShapeType

protected

◆ myStartShapes

TopTools_ListOfShape TopOpeBRepBuild_ShapeSet::myStartShapes

protected

◆ myStartShapesIter

TopTools_ListIteratorOfListOfShape TopOpeBRepBuild_ShapeSet::myStartShapesIter

protected

◆ mySubShapeExplorer

TopOpeBRepTool_ShapeExplorer TopOpeBRepBuild_ShapeSet::mySubShapeExplorer

protected

◆ mySubShapeMap

TopTools_IndexedDataMapOfShapeListOfShape TopOpeBRepBuild_ShapeSet::mySubShapeMap

protected

◆ mySubShapeType

TopAbs_ShapeEnum TopOpeBRepBuild_ShapeSet::mySubShapeType

protected

The documentation for this class was generated from the following file:

TopOpeBRepBuild_ShapeSet.hxx

Protected Attributes
TopAbs_ShapeEnum	myShapeType

TopAbs_ShapeEnum	mySubShapeType

TopOpeBRepTool_ShapeExplorer	mySubShapeExplorer

TopTools_ListOfShape	myStartShapes

TopTools_ListIteratorOfListOfShape	myStartShapesIter

TopTools_IndexedDataMapOfShapeListOfShape	mySubShapeMap

TopTools_ListIteratorOfListOfShape	myIncidentShapesIter

TopTools_ListOfShape	myShapes

TopTools_ListIteratorOfListOfShape	myShapesIter

TopoDS_Shape	myCurrentShape

TopTools_ListOfShape	myCurrentShapeNeighbours

Standard_Integer	myDEBNumber

TCollection_AsciiString	myDEBName

TopTools_IndexedMapOfOrientedShape	myOMSS

TopTools_IndexedMapOfOrientedShape	myOMES

TopTools_IndexedMapOfOrientedShape	myOMSH

Standard_Boolean	myCheckShape

Public Member Functions

Protected Member Functions

Protected Attributes

Detailed Description

Constructor & Destructor Documentation

◆ TopOpeBRepBuild_ShapeSet()

◆ ~TopOpeBRepBuild_ShapeSet()

Member Function Documentation

◆ AddElement()

◆ AddShape()

◆ AddStartElement()

◆ ChangeStartShapes()

◆ CheckShape() [1/3]

◆ CheckShape() [2/3]

◆ CheckShape() [3/3]

◆ DEBName() [1/2]

◆ DEBName() [2/2]

◆ DEBNumber() [1/2]

◆ DEBNumber() [2/2]

◆ DumpBB()

◆ DumpCheck()

◆ DumpName()

◆ DumpSS()

◆ FindNeighbours()

◆ InitNeighbours()

◆ InitShapes()

◆ InitStartElements()

◆ MakeNeighboursList()

◆ MaxNumberSubShape()

◆ MoreNeighbours()

◆ MoreShapes()

◆ MoreStartElements()

◆ Neighbour()

◆ NextNeighbour()

◆ NextShape()

◆ NextStartElement()

◆ ProcessAddElement()

◆ ProcessAddShape()

◆ ProcessAddStartElement()

◆ Shape()

◆ SName() [1/2]

◆ SName() [2/2]

◆ SNameori() [1/2]

◆ SNameori() [2/2]

◆ StartElement()

◆ StartElements()

Field Documentation

◆ myCheckShape

◆ myCurrentShape

◆ myCurrentShapeNeighbours

◆ myDEBName

◆ myDEBNumber

◆ myIncidentShapesIter

◆ myOMES

◆ myOMSH

◆ myOMSS

◆ myShapes

◆ myShapesIter

◆ myShapeType

◆ myStartShapes

◆ myStartShapesIter

◆ mySubShapeExplorer

◆ mySubShapeMap

◆ mySubShapeType
