#include <ShapePersistent_BRep.hxx>

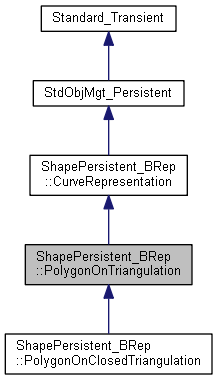

Inheritance diagram for ShapePersistent_BRep::PolygonOnTriangulation:

[legend]

Public Member Functions
virtual void	Read (StdObjMgt_ReadData &theReadData)
	Read persistent data from a file. More...

virtual void	Write (StdObjMgt_WriteData &theWriteData) const
	Write persistent data from a file. More...

virtual void	PChildren (StdObjMgt_Persistent::SequenceOfPersistent &theChildren) const
	Gets persistent child objects. More...

virtual Standard_CString	PName () const
	Returns persistent type name. More...

virtual Handle< BRep_CurveRepresentation >	import () const

Public Member Functions inherited from ShapePersistent_BRep::CurveRepresentation
void	Import (BRep_ListOfCurveRepresentation &theCurves) const
	Import transient object from the persistent data. More...

Public Member Functions inherited from StdObjMgt_Persistent
	StdObjMgt_Persistent ()

virtual void	ImportDocument (const Handle< TDocStd_Document > &theDocument) const
	Import transient document from the persistent data (to be overriden by document class; does nothing by default for other classes). More...

virtual Handle< TDF_Attribute >	CreateAttribute ()
	Create an empty transient attribuite (to be overriden by attribute classes; does nothing and returns a null handle by default for other classes). More...

virtual Handle< TDF_Attribute >	GetAttribute () const
	Get transient attribuite for the persistent data (to be overriden by attribute classes; returns a null handle by default for non-attribute classes). More...

virtual void	ImportAttribute ()
	Import transient attribuite from the persistent data (to be overriden by attribute classes; does nothing by default for non-attribute classes). More...

virtual Handle< TCollection_HAsciiString >	AsciiString () const
	Get referenced ASCII string (to be overriden by ASCII string class; returns a null handle by default for other classes). More...

virtual Handle< TCollection_HExtendedString >	ExtString () const
	Get referenced extended string (to be overriden by extended string class; returns a null handle by default for other classes). More...

virtual TDF_Label	Label (const Handle< TDF_Data > &theDF) const
	Get a label expressed by referenced extended string (to be overriden by extended string class; returns a null label by default for other classes). More...

Standard_Integer	TypeNum () const
	Returns the assigned persistent type number. More...

void	TypeNum (Standard_Integer theTypeNum)
	Assigns a persistent type number to the object. More...

Standard_Integer	RefNum () const
	Returns the object reference number. More...

void	RefNum (Standard_Integer theRefNum)
	Sets an object reference number. More...

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor. More...

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing. More...

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter. More...

virtual	~Standard_Transient ()
	Destructor must be virtual. More...

virtual void	Delete () const
	Memory deallocator for transient classes. More...

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object. More...

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type. More...

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName. More...

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism. More...

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero. More...

Standard_Integer	GetRefCount () const
	Get the reference counter of this object. More...

void	IncrementRefCounter () const
	Increments the reference counter of this object. More...

Standard_Integer	DecrementRefCounter () const
	Decrements the reference counter of this object; returns the decremented value. More...

Protected Attributes
Handle< ShapePersistent_Poly::PolygonOnTriangulation >	myPolygon

Handle< ShapePersistent_Poly::Triangulation >	myTriangulation

Protected Attributes inherited from ShapePersistent_BRep::CurveRepresentation
StdObject_Location	myLocation

Additional Inherited Members
Public Types inherited from StdObjMgt_Persistent
typedef Handle< StdObjMgt_Persistent >(*	Instantiator) ()
	Derived class instance create function. More...

typedef NCollection_Sequence< Handle< StdObjMgt_Persistent > >	SequenceOfPersistent

Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object. More...

Static Public Member Functions inherited from StdObjMgt_Persistent
template<class Persistent >
static Handle< StdObjMgt_Persistent >	Instantiate ()
	Create a derived class instance. More...

Static Public Member Functions inherited from Standard_Transient
static const char *	get_type_name ()
	Returns a type descriptor about this object. More...

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class. More...
