define a PinPoint G0 Constraint used to load a Non Linear Plate More...

#include <NLPlate_HPG0Constraint.hxx>

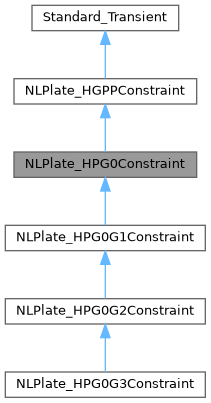

Inheritance diagram for NLPlate_HPG0Constraint:

[legend]

Public Member Functions
	NLPlate_HPG0Constraint (const gp_XY &UV, const gp_XYZ &Value)

virtual void	SetUVFreeSliding (const Standard_Boolean UVFree) override

virtual void	SetIncrementalLoadAllowed (const Standard_Boolean ILA) override

virtual Standard_Boolean	UVFreeSliding () const override

virtual Standard_Boolean	IncrementalLoadAllowed () const override

virtual Standard_Integer	ActiveOrder () const override

virtual Standard_Boolean	IsG0 () const override

virtual const gp_XYZ &	G0Target () const override

Public Member Functions inherited from NLPlate_HGPPConstraint
	NLPlate_HGPPConstraint ()

virtual void	SetActiveOrder (const Standard_Integer ActiveOrder)

virtual void	SetUV (const gp_XY &UV)

virtual void	SetOrientation (const Standard_Integer Orient=0)

virtual void	SetG0Criterion (const Standard_Real TolDist)

virtual void	SetG1Criterion (const Standard_Real TolAng)

virtual void	SetG2Criterion (const Standard_Real TolCurv)

virtual void	SetG3Criterion (const Standard_Real TolG3)

virtual const gp_XY &	UV () const

virtual Standard_Integer	Orientation ()

virtual const Plate_D1 &	G1Target () const

virtual const Plate_D2 &	G2Target () const

virtual const Plate_D3 &	G3Target () const

virtual Standard_Real	G0Criterion () const

virtual Standard_Real	G1Criterion () const

virtual Standard_Real	G2Criterion () const

virtual Standard_Real	G3Criterion () const

Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.

	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.

Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.

virtual	~Standard_Transient ()
	Destructor must be virtual.

virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.

Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.

Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.

Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.

Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.

Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.

void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.

Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.

virtual void	Delete () const
	Memory deallocator for transient classes.

Additional Inherited Members
Public Types inherited from Standard_Transient
typedef void	base_type
	Returns a type descriptor about this object.

Static Public Member Functions inherited from Standard_Transient
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.

static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Protected Attributes inherited from NLPlate_HGPPConstraint
gp_XY	myUV

Standard_Integer	myActiveOrder
