IntCurveSurface_Intersection Class Reference

#include <IntCurveSurface_Intersection.hxx>

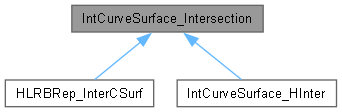

Inheritance diagram for IntCurveSurface_Intersection:

Public Member Functions
Standard_Boolean	IsDone () const
	returns the <done> field.
Standard_Integer	NbPoints () const
	returns the number of IntersectionPoint if IsDone returns True. else NotDone is raised.
const IntCurveSurface_IntersectionPoint &	Point (const Standard_Integer Index) const
	returns the IntersectionPoint of range <Index> raises NotDone if the computation has failed or if the computation has not been done raises OutOfRange if Index is not in the range <1..NbPoints>
Standard_Integer	NbSegments () const
	returns the number of IntersectionSegment if IsDone returns True. else NotDone is raised.
const IntCurveSurface_IntersectionSegment &	Segment (const Standard_Integer Index) const
	returns the IntersectionSegment of range <Index> raises NotDone if the computation has failed or if the computation has not been done raises OutOfRange if Index is not in the range <1..NbSegment>
Standard_Boolean	IsParallel () const
	Returns true if curve is parallel or belongs surface This case is recognized only for some pairs of analytical curves and surfaces (plane - line, ...)
void	Dump () const
	Dump all the fields.

Protected Member Functions
	IntCurveSurface_Intersection ()
	Empty Constructor;.
	~IntCurveSurface_Intersection ()
	Destructor is protected, for safe inheritance.
void	SetValues (const IntCurveSurface_Intersection &Inter)
	Internal method copy the <Inter> fields to <me>
void	Append (const IntCurveSurface_Intersection &Inter, const Standard_Real FirstParamOnCurve, const Standard_Real LastParamOnCurve)
	Internal method Append the IntersectionPoints and IntersectionSegments of <Inter> to <me>.
void	Append (const IntCurveSurface_IntersectionPoint &Pt)
	Internal method Append the IntersectionPoints of <Inter> to <me>
void	Append (const IntCurveSurface_IntersectionSegment &Seg)
	Internal method Append the IntersectionPoints of <Inter> to <me>
void	ResetFields ()
	Internal method Reset all the fields of <me> Clear the sequences of IntersectionPoints and Segments Set the field <done> to Standard_False.

Protected Attributes
Standard_Boolean	done
Standard_Boolean	myIsParallel

Constructor & Destructor Documentation

IntCurveSurface_Intersection()

IntCurveSurface_Intersection::IntCurveSurface_Intersection ( )

protected

Empty Constructor;.

~IntCurveSurface_Intersection()

IntCurveSurface_Intersection::~IntCurveSurface_Intersection ( )

inlineprotected

Destructor is protected, for safe inheritance.

Member Function Documentation

Append() [1/3]

void IntCurveSurface_Intersection::Append ( const IntCurveSurface_Intersection & Inter, const Standard_Real FirstParamOnCurve, const Standard_Real LastParamOnCurve )

protected

Internal method Append the IntersectionPoints and IntersectionSegments of <Inter> to <me>.

Append() [2/3]

void IntCurveSurface_Intersection::Append ( const IntCurveSurface_IntersectionPoint & Pt )

protected

Internal method Append the IntersectionPoints of <Inter> to <me>

Append() [3/3]

void IntCurveSurface_Intersection::Append ( const IntCurveSurface_IntersectionSegment & Seg )

protected

Internal method Append the IntersectionPoints of <Inter> to <me>

Dump()

void IntCurveSurface_Intersection::Dump

(

)

const

Dump all the fields.

IsDone()

Standard_Boolean IntCurveSurface_Intersection::IsDone

(

)

const

returns the <done> field.

IsParallel()

Standard_Boolean IntCurveSurface_Intersection::IsParallel

(

)

const

Returns true if curve is parallel or belongs surface This case is recognized only for some pairs of analytical curves and surfaces (plane - line, ...)

NbPoints()

Standard_Integer IntCurveSurface_Intersection::NbPoints

(

)

const

returns the number of IntersectionPoint if IsDone returns True. else NotDone is raised.

NbSegments()

Standard_Integer IntCurveSurface_Intersection::NbSegments

(

)

const

returns the number of IntersectionSegment if IsDone returns True. else NotDone is raised.

Point()

const IntCurveSurface_IntersectionPoint & IntCurveSurface_Intersection::Point

(

const Standard_Integer

Index

)

const

returns the IntersectionPoint of range <Index> raises NotDone if the computation has failed or if the computation has not been done raises OutOfRange if Index is not in the range <1..NbPoints>

ResetFields()

void IntCurveSurface_Intersection::ResetFields ( )

protected

Internal method Reset all the fields of <me> Clear the sequences of IntersectionPoints and Segments Set the field <done> to Standard_False.

Segment()

const IntCurveSurface_IntersectionSegment & IntCurveSurface_Intersection::Segment

(

const Standard_Integer

Index

)

const

returns the IntersectionSegment of range <Index> raises NotDone if the computation has failed or if the computation has not been done raises OutOfRange if Index is not in the range <1..NbSegment>

SetValues()

void IntCurveSurface_Intersection::SetValues ( const IntCurveSurface_Intersection & Inter )

protected

Internal method copy the <Inter> fields to <me>

Field Documentation

done

Standard_Boolean IntCurveSurface_Intersection::done

protected

myIsParallel

Standard_Boolean IntCurveSurface_Intersection::myIsParallel

protected

---

The documentation for this class was generated from the following file:

• IntCurveSurface_Intersection.hxx
