ShapeUpgrade_SplitSurface Class Reference

Splits a Surface with a criterion. More...

#include <ShapeUpgrade_SplitSurface.hxx>

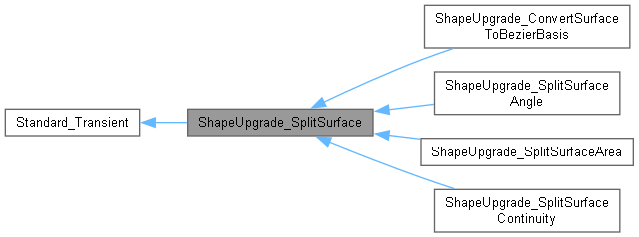

Inheritance diagram for ShapeUpgrade_SplitSurface:

Public Member Functions
	ShapeUpgrade_SplitSurface ()
	Empty constructor.
void	Init (const Handle< Geom_Surface > &S)
	Initializes with single supporting surface.
void	Init (const Handle< Geom_Surface > &S, const Standard_Real UFirst, const Standard_Real ULast, const Standard_Real VFirst, const Standard_Real VLast, const Standard_Real theArea=0.)
	Initializes with single supporting surface with bounding parameters.
void	SetUSplitValues (const Handle< TColStd_HSequenceOfReal > &UValues)
	Sets U parameters where splitting has to be done.
void	SetVSplitValues (const Handle< TColStd_HSequenceOfReal > &VValues)
	Sets V parameters where splitting has to be done.
virtual void	Build (const Standard_Boolean Segment)
	Performs splitting of the supporting surface. If resulting surface is B-Spline and Segment is True, the result is composed with segments of the surface bounded by the U and V SplitValues (method Geom_BSplineSurface::Segment is used). If Segment is False, the result is composed with Geom_RectangularTrimmedSurface all based on the same complete surface. Fields myNbResultingRow and myNbResultingCol must be set to specify the size of resulting grid of surfaces.
virtual void	Compute (const Standard_Boolean Segment=Standard_True)
	Calculates points for correction/splitting of the surface.
void	Perform (const Standard_Boolean Segment=Standard_True)
	Performs correction/splitting of the surface. First defines splitting values by method Compute(), then calls method Build().
const Handle< TColStd_HSequenceOfReal > &	USplitValues () const
	returns all the U splitting values including the First and Last parameters of the input surface
const Handle< TColStd_HSequenceOfReal > &	VSplitValues () const
	returns all the splitting V values including the First and Last parameters of the input surface
Standard_Boolean	Status (const ShapeExtend_Status status) const
	Returns the status OK - no splitting is needed DONE1 - splitting required and gives more than one patch DONE2 - splitting is required, but gives only single patch (initial) DONE3 - geometric form of the surface or parametrisation is modified.
const Handle< ShapeExtend_CompositeSurface > &	ResSurfaces () const
	Returns obtained surfaces after splitting as CompositeSurface.
Public Member Functions inherited from Standard_Transient
	Standard_Transient ()
	Empty constructor.
	Standard_Transient (const Standard_Transient &)
	Copy constructor – does nothing.
Standard_Transient &	operator= (const Standard_Transient &)
	Assignment operator, needed to avoid copying reference counter.
virtual	~Standard_Transient ()
	Destructor must be virtual.
virtual const opencascade::handle< Standard_Type > &	DynamicType () const
	Returns a type descriptor about this object.
Standard_Boolean	IsInstance (const opencascade::handle< Standard_Type > &theType) const
	Returns a true value if this is an instance of Type.
Standard_Boolean	IsInstance (const Standard_CString theTypeName) const
	Returns a true value if this is an instance of TypeName.
Standard_Boolean	IsKind (const opencascade::handle< Standard_Type > &theType) const
	Returns true if this is an instance of Type or an instance of any class that inherits from Type. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Boolean	IsKind (const Standard_CString theTypeName) const
	Returns true if this is an instance of TypeName or an instance of any class that inherits from TypeName. Note that multiple inheritance is not supported by OCCT RTTI mechanism.
Standard_Transient *	This () const
	Returns non-const pointer to this object (like const_cast). For protection against creating handle to objects allocated in stack or call from constructor, it will raise exception Standard_ProgramError if reference counter is zero.
Standard_Integer	GetRefCount () const noexcept
	Get the reference counter of this object.
void	IncrementRefCounter () noexcept
	Increments the reference counter of this object.
Standard_Integer	DecrementRefCounter () noexcept
	Decrements the reference counter of this object; returns the decremented value.
virtual void	Delete () const
	Memory deallocator for transient classes.

Protected Attributes
Handle< TColStd_HSequenceOfReal >	myUSplitValues
Handle< TColStd_HSequenceOfReal >	myVSplitValues
Standard_Integer	myNbResultingRow
Standard_Integer	myNbResultingCol
Handle< Geom_Surface >	mySurface
Standard_Integer	myStatus
Handle< ShapeExtend_CompositeSurface >	myResSurfaces
Standard_Real	myArea
Standard_Real	myUsize
Standard_Real	myVsize

Additional Inherited Members
typedef void	base_type
	Returns a type descriptor about this object.
static constexpr const char *	get_type_name ()
	Returns a type descriptor about this object.
static const opencascade::handle< Standard_Type > &	get_type_descriptor ()
	Returns type descriptor of Standard_Transient class.

Detailed Description

Splits a Surface with a criterion.

Constructor & Destructor Documentation

ShapeUpgrade_SplitSurface()

ShapeUpgrade_SplitSurface::ShapeUpgrade_SplitSurface

(

)

Empty constructor.

Member Function Documentation

Build()

virtual void ShapeUpgrade_SplitSurface::Build ( const Standard_Boolean Segment )

virtual

Performs splitting of the supporting surface. If resulting surface is B-Spline and Segment is True, the result is composed with segments of the surface bounded by the U and V SplitValues (method Geom_BSplineSurface::Segment is used). If Segment is False, the result is composed with Geom_RectangularTrimmedSurface all based on the same complete surface. Fields myNbResultingRow and myNbResultingCol must be set to specify the size of resulting grid of surfaces.

Reimplemented in ShapeUpgrade_ConvertSurfaceToBezierBasis.

Compute()

virtual void ShapeUpgrade_SplitSurface::Compute ( const Standard_Boolean Segment = Standard_True )

virtual

Calculates points for correction/splitting of the surface.

Reimplemented in ShapeUpgrade_ConvertSurfaceToBezierBasis, ShapeUpgrade_SplitSurfaceAngle, ShapeUpgrade_SplitSurfaceArea, and ShapeUpgrade_SplitSurfaceContinuity.

Init() [1/2]

void ShapeUpgrade_SplitSurface::Init

(

const Handle< Geom_Surface > &

S

)

Initializes with single supporting surface.

Init() [2/2]

void ShapeUpgrade_SplitSurface::Init	(	const Handle< Geom_Surface > &	S,
		const Standard_Real	UFirst,
		const Standard_Real	ULast,
		const Standard_Real	VFirst,
		const Standard_Real	VLast,
		const Standard_Real	theArea = 0. )

Initializes with single supporting surface with bounding parameters.

Perform()

void ShapeUpgrade_SplitSurface::Perform

(

const Standard_Boolean

Segment = Standard_True

)

Performs correction/splitting of the surface. First defines splitting values by method Compute(), then calls method Build().

ResSurfaces()

const Handle< ShapeExtend_CompositeSurface > & ShapeUpgrade_SplitSurface::ResSurfaces

(

)

const

Returns obtained surfaces after splitting as CompositeSurface.

SetUSplitValues()

void ShapeUpgrade_SplitSurface::SetUSplitValues

(

const Handle< TColStd_HSequenceOfReal > &

UValues

)

Sets U parameters where splitting has to be done.

SetVSplitValues()

void ShapeUpgrade_SplitSurface::SetVSplitValues

(

const Handle< TColStd_HSequenceOfReal > &

VValues

)

Sets V parameters where splitting has to be done.

Status()

Standard_Boolean ShapeUpgrade_SplitSurface::Status

(

const ShapeExtend_Status

status

)

const

Returns the status OK - no splitting is needed DONE1 - splitting required and gives more than one patch DONE2 - splitting is required, but gives only single patch (initial) DONE3 - geometric form of the surface or parametrisation is modified.

USplitValues()

const Handle< TColStd_HSequenceOfReal > & ShapeUpgrade_SplitSurface::USplitValues

(

)

const

returns all the U splitting values including the First and Last parameters of the input surface

VSplitValues()

const Handle< TColStd_HSequenceOfReal > & ShapeUpgrade_SplitSurface::VSplitValues

(

)

const

returns all the splitting V values including the First and Last parameters of the input surface

Field Documentation

myArea

Standard_Real ShapeUpgrade_SplitSurface::myArea

protected

myNbResultingCol

Standard_Integer ShapeUpgrade_SplitSurface::myNbResultingCol

protected

myNbResultingRow

Standard_Integer ShapeUpgrade_SplitSurface::myNbResultingRow

protected

myResSurfaces

Handle< ShapeExtend_CompositeSurface > ShapeUpgrade_SplitSurface::myResSurfaces

protected

myStatus

Standard_Integer ShapeUpgrade_SplitSurface::myStatus

protected

mySurface

Handle< Geom_Surface > ShapeUpgrade_SplitSurface::mySurface

protected

myUsize

Standard_Real ShapeUpgrade_SplitSurface::myUsize

protected

myUSplitValues

Handle< TColStd_HSequenceOfReal > ShapeUpgrade_SplitSurface::myUSplitValues

protected

myVsize

Standard_Real ShapeUpgrade_SplitSurface::myVsize

protected

myVSplitValues

Handle< TColStd_HSequenceOfReal > ShapeUpgrade_SplitSurface::myVSplitValues

protected

---

The documentation for this class was generated from the following file:

• ShapeUpgrade_SplitSurface.hxx
